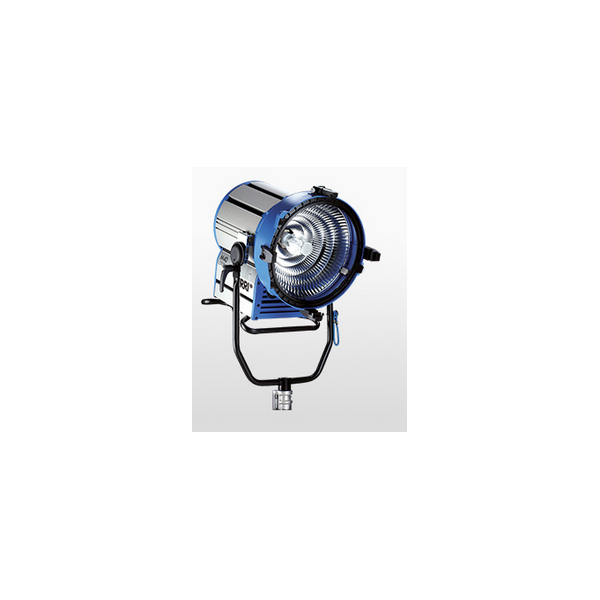

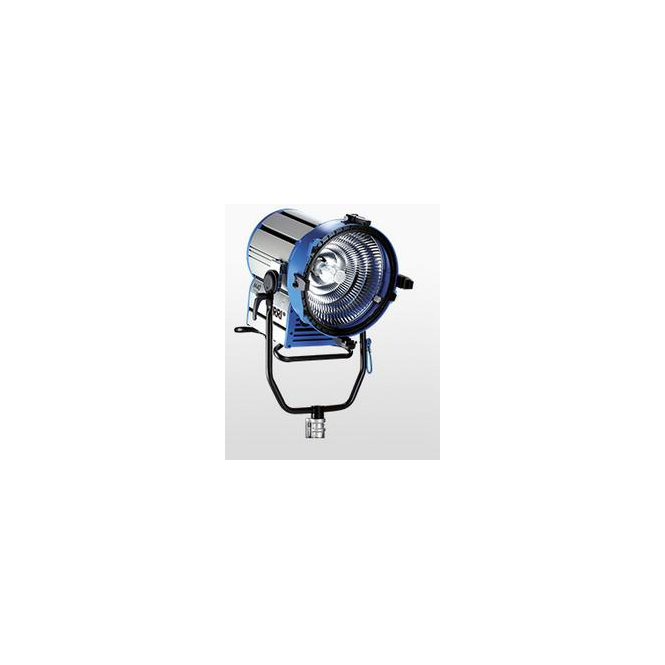

Like all members of the M-Series, the M40 unifies the advantages of a PAR light and a Fresnel fixture. Due to the unique lens-less MAX Technology, the unit is open face and thus very bright, but also focussable over a range of 18 to 52° HPA (Half Peak Angle), casting a crisp shadow. The reflector characteristics is optimised for 4000 W lamps, but can also be used with 2500 W lamps.
The lamphead is equipped with a CCL module (compensation for cable loss). When operated with the ARRI EB 2.5/4 with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length.
Features:
Lens-less MAX Technology: Easy to use
Around 30% brighter than AS 40
Same size as AS 40 but over 3 kg lighter
Compensation for Cable Loss (CCL)
Tubular steel yoke
Two disk brakes with steel handle
Cross Cooling allows safe operation at extreme tilt angles
Protection class IP 23
Specification:
Lamphead Type:
Open Face with Facetted Reflector, 4000 W
Reflector Type:
MAX reflector made of high purity aluminium
Lamp Type:
Metal Halide 4000 W/SE; Metal Halide 2500 W/SE
Power Consumption:
4000 W / 2500 W
Voltage Range:
200 V / 115 V
Lamp Base:
G38
Dimmability:
Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:
VEAM, Schaltbau
Correlated Color Temperature:
6000 K
Beam Angle:
18 - 52° (with 4000 W lamp)
Product Weight:
19,0 kg / 41.9 lbs.
Shipping Weight:
34,0 kg / 75 lbs. (incl. pallet)
Product Size (HxWxL):
670 x 402 x 511 mm / 26.4" x 15.8" x 20.1"
Shipping Size (HxWxL):
660 x 595 x 665 mm / 26" x 23.4" x 26.2"
UV Glass Diameter:
300 mm / 11.81"
Accessory Diameter:
400 mm / 15.75" (Scrim)
Barndoor Size:
413 mm / 16.26"
Mounting:
Spigot 28 mm / 1 1/8" (1.1")
Protection Class:
I/IP 23
Certifications:
CE, CB, GS, cNRTL
