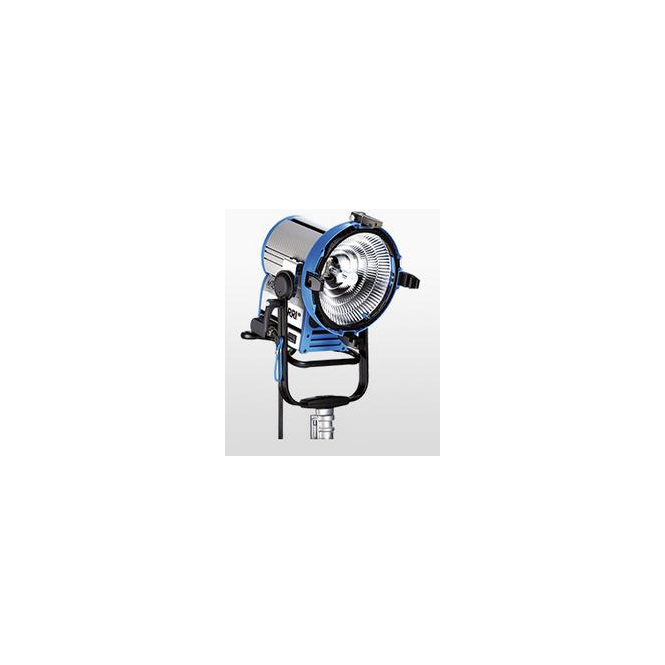

The M18 combines MAX Technology, True Blue features and a new 1800 W lamp. The result is an exciting new class of HMI that can be powered from most domestic sockets. It is as small as a 1200 W PAR lamphead but with 70% higher light output. Adjustable from 20° to 60° beam angle, the M18 can also be used with 1200 W lamps.
Features:
Lens-less MAX Technology: Easy to use
New 1800 W lamp
Virtually the same size as a 1200 W lamphead but more than 70Â % brighter
Runs from most domestic sockets world-wide
Uses existing 575/1200/1800 W cables
Can also be used with 1200 W lamps and ballasts
Cross Cooling allows safe operation at any tilt angle
Protection class IP 23
TRUE BLUE tilt lock holds even heavy Chimeras
Easy maintenance
Â
Specification:
Lamphead Type:
Open Face with Facetted Reflector, 1800 W
Reflector Type:
MAX reflector made of high purity aluminium
Lamp Type:
Metal Halide 1800 W/SE; Metal Halide 1200 W/SE
Power Consumption:
1800W / 1200 W
Voltage Range:
100V / 140V
Lamp Base:
G38
Dimmability:
Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:
VEAM, Schaltbau (GTV-Norm)
Correlated Color Temperature:
6000 K
Beam Angle:
20 - 60° (with 1800 W lamp)
Product Weight:
10,5 kg / 23.1 lbs.
Shipping Weight:
15,5 kg / 34.2 lbs. (incl. palette)
Product Size (HxWxL):
567 x 387 x 388 mm /22.3" x 15.2" x 15.3"
Shipping Size (HxWxL):
530 x 510 x 555 mm / 20.9" x 20.1" x 21.9"
Lens Diameter:
250 mm / 9.84"
Accessory Diameter:
330 mm / 13" (Scrim)
Barndoor Size:
344 mm / 13.54"
Mounting:
Spigot 28 mm / 1 1/8" (1.1")
Protection Class:
I/IP 23
Certifications:
CE, CB, GS, cNRTL
