Arri L1.37950.B MAX 18/12 MAN, blau/silber, VEAM

code: L1.37950.B
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £250

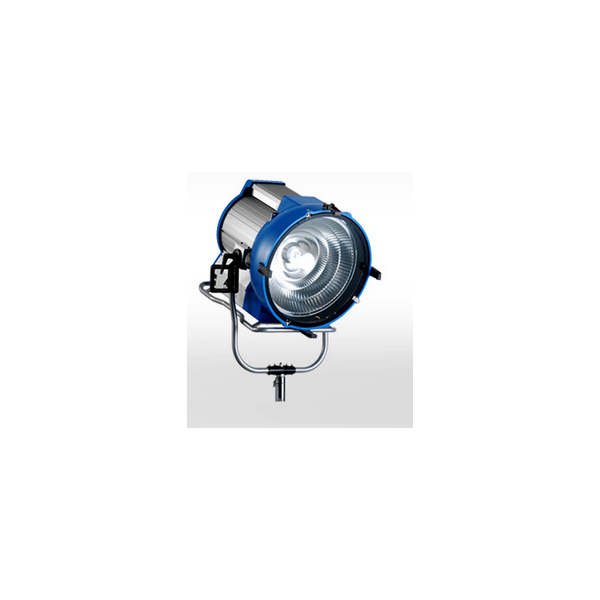

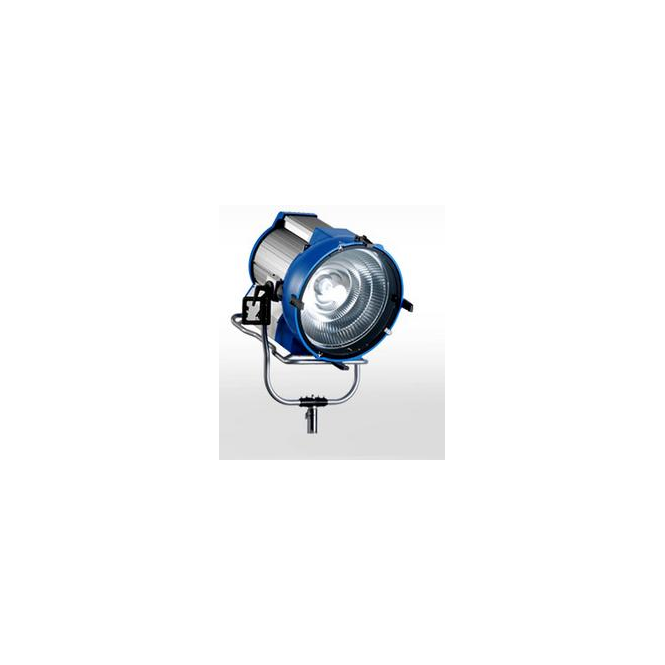

L1.37950.B ARRIMAX 18/12 (MAN, blau/silber, VEAM)

The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.83”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.

18,000W Single Ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder. This new lampholder alleviates mechanical stress from the lamp pins, which now serve only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18 K Single Ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment required.

Features:

  • 50% brighter than a 12 K PAR
  • 15° to 50° continuous beam angle: standard reflector
  • 8° to 15° beam angle: spot reflector
  • Lens-less design
  • Arc-like shadow quality
  • ARRI eXtreme cooling
  • 18,000W Single Ended (GX51)
  • Easy re-lamping : EZ lamp lock system
  • ARRI Dual Pin Width support (GX51/GX38)

Specification:

Lamphead Type:Open Face with Facetted Reflector, 18000 W
Reflector Type:MAX reflector made of high purity aluminium
Lamp Type:Metal Halide 18000 W/SE;
Metal Halide 12000 W/SE
Power Consumption:18000 W / 12000 W
Voltage Range:225 V / 160 V
Lamp Base:GX51 / GX38
Dimmability:Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:VEAM
Correlated Color Temperature:ca. 5600 K
Beam Angle:15°- 50° (with 18000 W lamp)
Product Weight:65,0 kg / 143.3 lbs.
Shipping Weight:101,0 kg / 222.7 lbs. (incl. pallet)
Product Size (HxWxL):1051 x 784 x 942 mm / 41.4" x 30.9" x 37.1"
Shipping Size (HxWxL):1135 x 1050 x 1170 mm / 44.7" x 41.3" x 46.1"
UV Glass Diameter:630 mm / 24.8"
Accessory Diameter:740 mm / 29.13" (Scrim)
Barndoor Size:740 mm / 29.13"
Mounting:Spigot 28 mm / 1 1/8" (1.1")
Protection Class:I/IP 23
Certifications:CE, CB, GS, cNRTL
