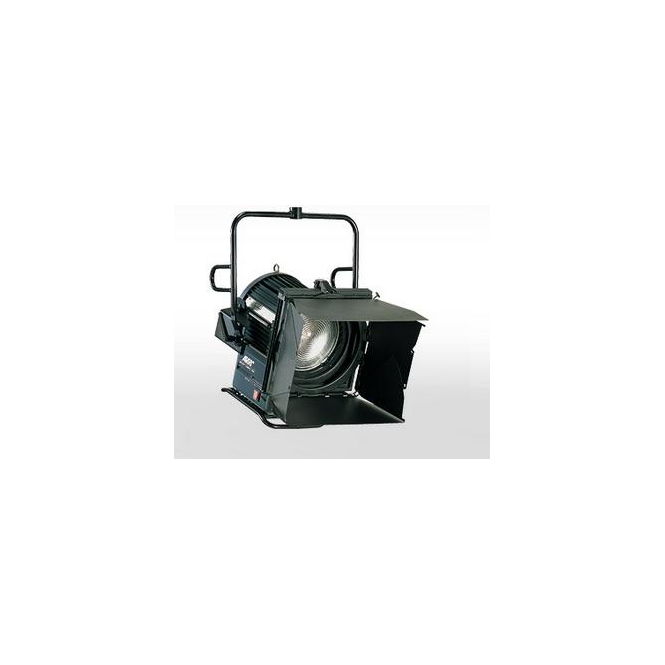

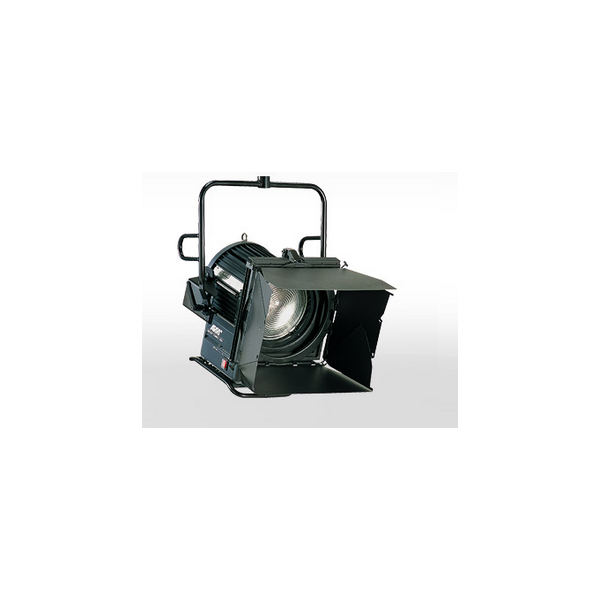

Where lightweight Fresnel spotlights combining daylight characteristics with a lack of spill light and great tolerance for high temperatures are required, ARRI Compact Daylight Theatre Fresnels are the preferred choice. ARRI's elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength in a compact and efficient unit. Together with ARRI flicker-free Electronic Ballasts, the Compact Daylight Theatre range is perfect for the demanding world of theatre lighting.
Features:
High efficiency, wide-angle lenses
Corrosion-resistant aluminium construction
Extremely even light distribution
No spill light
Glass reflector
Stirrup centre adjustment
Focus position indicator
Focus knob on front and rear
Easy service access
Wide range of accessories
Specification:
Lamphead Type:
Fresnel, 2500 W
Reflector Type:
Spherical specular high purity aluminum
Lamp Type:
Metal Halide 2500 W/SE
Power Consumption:
2500 W
Voltage Range:
115 V
Lamp Base:
G38
Dimmability:
Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:
VEAM, Schaltbau (GTV standard)
Correlated Color Temperature:
6000 K
Beam Angle:
7° - 59°
Product Weight:
23,0 kg / 50.7 lbs.
Shipping Weight:
27,0 kg / 59.5 lbs.
Product Size (HxWxL):
770 x 590 x 396 mm / 30.3" x 23.2" x 15.6"
Shipping Size (HxWxL):
670 x 610 x 620 mm / 26.4" x 24" x 24.4"
Lens Diameter:
250 mm / 9.84"
Accessory Diameter:
330 mm / 12.99" (Filter Insertion)
Barndoor Size:
344 mm/ 13.54"
Mounting:
Spigot 28 mm / 1 1/8" (1.1")
Protection Class:
I/IP 23
Certifications:
CE, CB, GS, cNRTL
