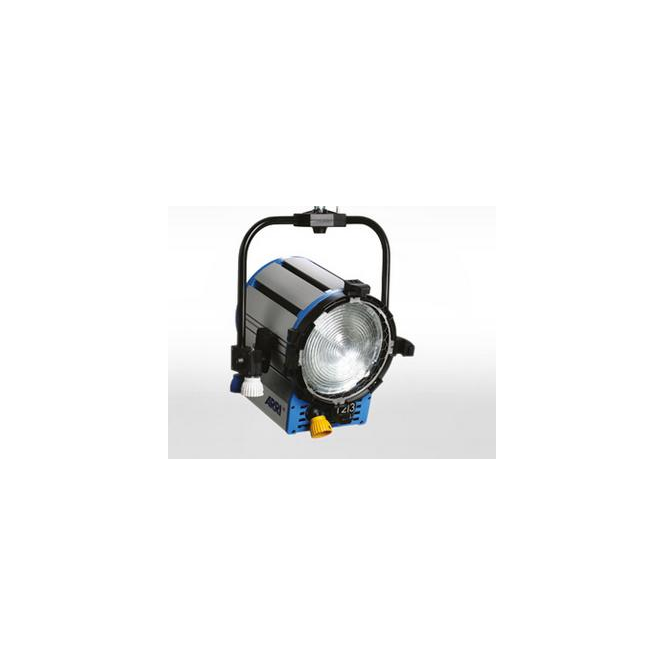

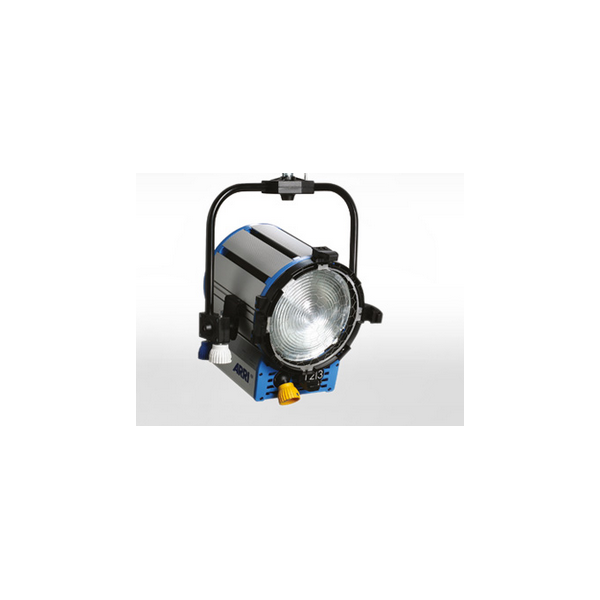

Arri L3.40750LB True Blue ST2/3 Location MAN, blue/silver

code: L3.40750LB
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £150

L3.40750LB True Blue ST2/3 Location (MAN, blue/silver, 220-250 VAC, bare ends) incl. 4-leaf barndoor, filterframe, with location top latch, inline switch and 3 m cable

ARRI TRUE BLUE represent an unprecedented evolution of the studio fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI Fresnels are available in both manual and pole-operated versions.

Using a 3000 W lamp allows a 65% higher light output while maintaining the size and weight of the fixture. Modern studio dimmer systems have the capacity to support 3000 W, and in contrast to 5000 W lamps, this power class can be operated within the standard 16 V - 230 V power grid of most countries. This saves costs in cabling and energy, and purchase costs of the fixture itself. Another possible scenario is a switch to HD recording systems, which are still less sensitive than SD cameras. In these situations the 2000 W lamps can simply be replaced with 3000 W lamps to provide the illumination headroom required.

Note: This change does not apply to the 120 V version!

Features:

  • Cross Cooling System: new, highly effective cooling streams in addition to conventional cooling
  • Sliding Stirrup: centre of gravity adjustment
  • Tilt Lock: stainless steel friction disc for rigid lock-off
  • Top Latches: application-oriented Top Latches for location or studio use
  • Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
  • Stainless Steel Lens Protection: maximised light transmission and high temperature stability
  • Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
  • Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
  • Protection Class IP23: safe indoor and outdoor use
  • Safety Certification: CE, TÜV-GS, NRTL-US-C

Specification:

Lamphead Type:Fresnel, 3000 W
Reflector Type:Spherical specular high purity aluminium
Lamp Type:only 230 V: 2000 W (FKK), 3000 W (HX48)
Power Consumption:3000 W, 2000 W
Voltage Range:220 - 240 V~
Lamp Base:G38
Dimmability:Yes, 0 - 100 % via external dimming system
Cable Options:bare ends, Schuko plug
Correlated Color Temperature:3200 K
Beam Angle:7,9 - 56° / 11,6 - 56,3° (with 2 kW / 3 kW lamp)
Product Weight:12,0 kg / 26.5 lbs.
Shipping Weight:15,0 kg / 33.1 lbs.
Product Size (HxWxL):522 x 448 x 380 mm / 20.6" x 17.6" x 15"
Shipping Size (HxWxL):495 x 515 x 550 mm / 14.5" x 20.3" x 21.7"
Lens Diameter:250 mm / 9.84"
Accessory Diameter:330 mm / 12.99" (Scrim)
Barndoor Size:344 mm / 13.54"
Mounting:Spigot 28 mm / 1 1/8" (1.1")
Protection Class:I/IP 23
Certifications:CE, CB, GS
