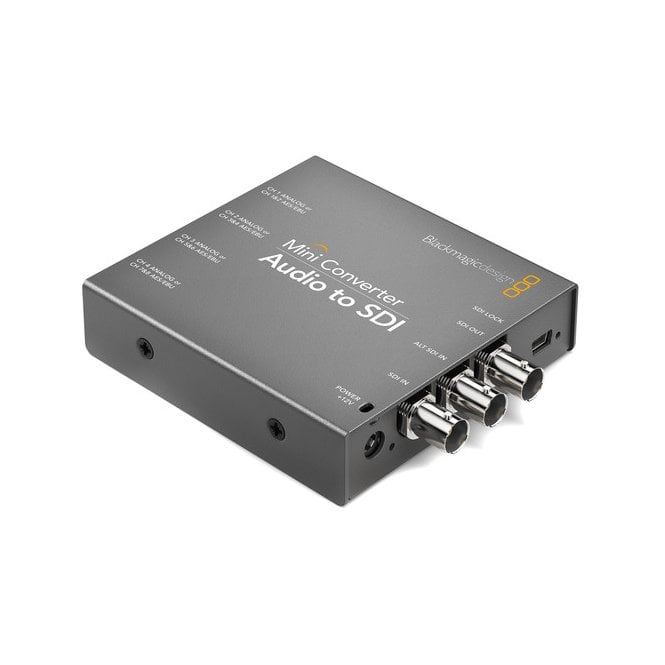

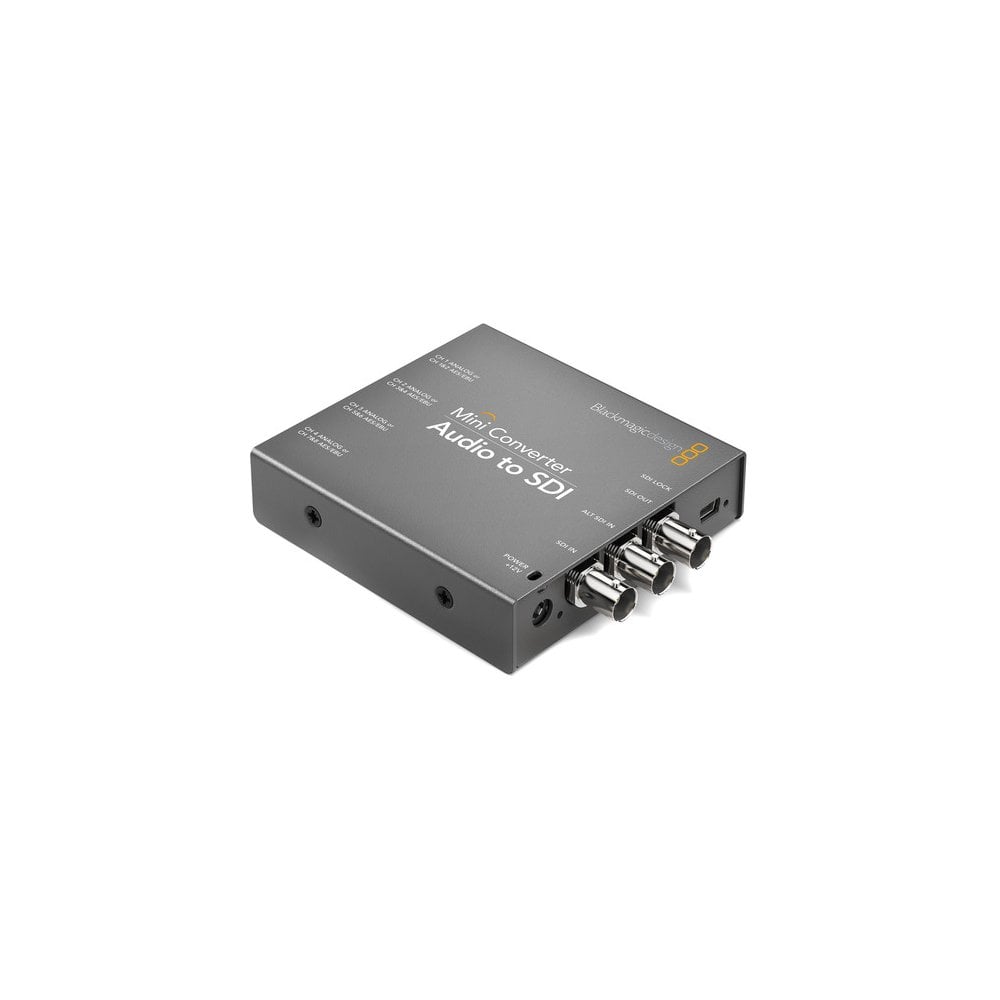

Blackmagic BMD-CONVMCAUDS2 Mini Converter Audio to SDI

Blackmagic BMD-CONVMCAUDS2 (CONVMCAUDS2, BMD_CONVMCAUDS2, convmcauds2, CONVMCAUDS2) Mini Converter Audio to SDI

Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.

In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.

• SDI Input: 1 x SDI on BNC (switchable between 3G/HD/SD)
• 1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost)
• Audio Input: 4 x 1/4" jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio
• SDI Output: 1 x SDI on BNC (switchable between 3G/HD/SD)
• SDI Auto Switching: Auto-detection of 3G/2K/HD/SD-SDI
• Updates and Configuration: Via USB 2.0 high-speed (480 Mb/s)
• Reclocking: Yes
• SDI Compliance: SMPTE 292M/259M/296M/372M/424M-B/425M
• ITU-R BT.656/BT.601
• SDI Video Rates: SDI video connections are switchable between HD and SD
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
• SDI Color Precision: 4:2:2, 4:4:4
• SDI Color Spac: YUV, RGB
• SDI Auto Switching: Automatically selects between 3G/HD/SD
• SDI Format Support: 1080p: 60/59.94/50/30/29.97/25/24/23.98
• 1080PsF: 30/29.97/25/24/23.98
• 1080i: 60/59.94/50
• 720p: 60/59.94/50
• 525i: 59.94 NTSC
• 625i: 50 PAL
• 2K Format Support: 2K DCI 25p/24p/23.98p
• 2K DCI 25PsF/24PsF/23.98PsF
• Software Control: Mac OS X and Windows software upgrade via USB
• Internal Software Upgrade: Via included updater application
• Operating System: Mac OS X 10.11 El Capitan, macOS Sierra or later
• Windows: 8.1 or Windows 10
• Settings Control: Mini switches or USB software
• Power Supply: +12 V universal power supply included, with international socket adapters for all countries and cable tie point
• Power Consumption: 8.4 W
• Operational Voltage Range: 12 VDC
• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 113°F / -20 to 45°C
• Relative Humidity: 0 to 90% non-condensing
• Dimensions: 4.5 x 3.6 x 0.9" / 11.5 x 9.2 x 2.3 cm
• Weight: 7.6 oz / 215 g

In The Box:

• Blackmagic Design Audio to SDI Mini Converter
• 12V Universal Power Supply
• Set of International Socket Adapters
