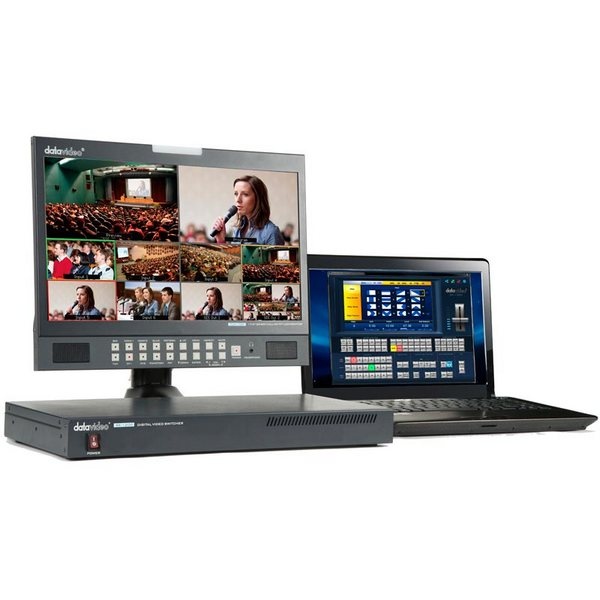

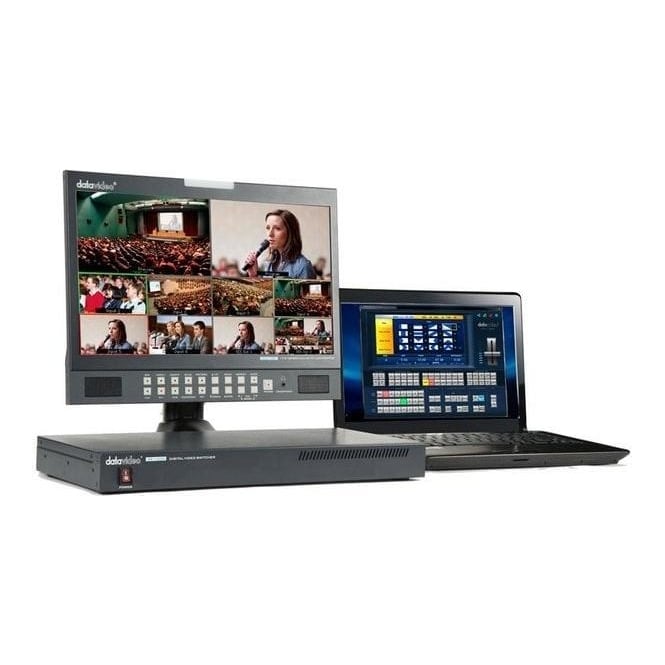

Datavideo DATA-SE1200MU 6 Input Rackmount HD Mixer

Datavideo DATA-SE1200MU (DATASE1200MU, DATA SE1200MU, DATA/SE1200MU, data-se1200mu) 6 Input Rackmount HD Mixer

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.

SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

SE-1200MU includes four SDI and two HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.

Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

6 video inputs ( SDI x 4 + HDMI x 2)

Frame Sync on each input

Flexible Mix/Effects Processor with

2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key

2 DSK, supporting Linear & Luma Key Modes

1 PIP (assignable to any of the 4 keyers

Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control

Wipe, Mix & Cut Transitions

Full M/E Preview function

Any Input (1-6) can be used as a Frame store (Stills Store): Upto 24 images stored on SD Card

Assignable Outputs

Each SDI output can be switched in the Menu as:

- PROGRAM (w/ DSK)

- Clean PROGRAM (w/o DSK)

- Clean PREVIEW (w/o DSK)

- MULTISCREEN

- Input 1-6

XPT (Cross Point Assignment)

PC & Tablet control

Remote streaming of Multi view out using built-in Motion JPEG Streaming processor

Tally output

GPI output

1U rack mount
