Datavideo Hs-1600T Mkii 4-Channel Hd/Sd HdBaseT Portable Video Studio

Datavideo Hs-1600T Mkii 4-Channel Hd/Sd HdBaseT Portable Video Studio(DATA-HS1600TMKII)

Bring your broadcast mobile with this HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio from Datavideo. This mobile studio utilizes HDBaseT technology to control up to three Datavideo PTZ cameras while streaming H.264 video to the web. It features three HDBaseT inputs that can control connected cameras and accept video inputs, as well as one HDMI input to add an additional video source. Three HDMI program outputs allow you to connect to monitors to display your program, one HDMI is for graphics output, and a streaming RJ45 LAN output connector lets you stream live to the Internet using a minimum Cat 6 cable. Depending on the data rate of your stream, you can also record to an optional SD card.

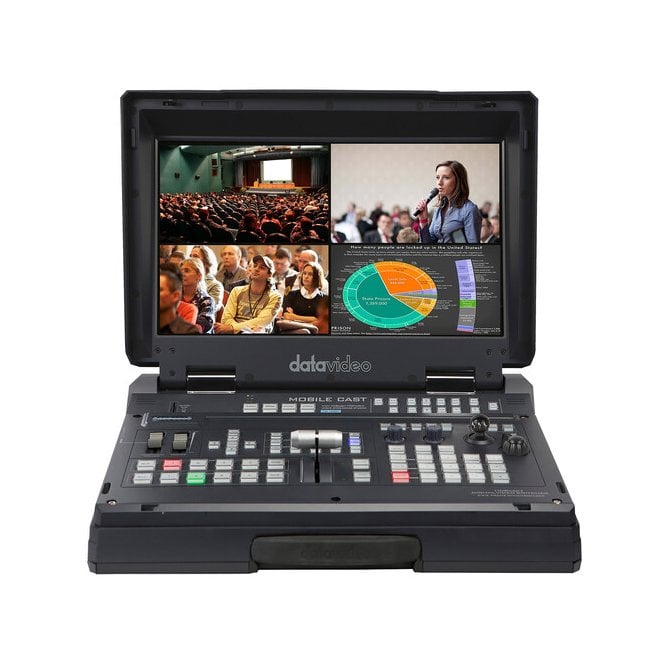

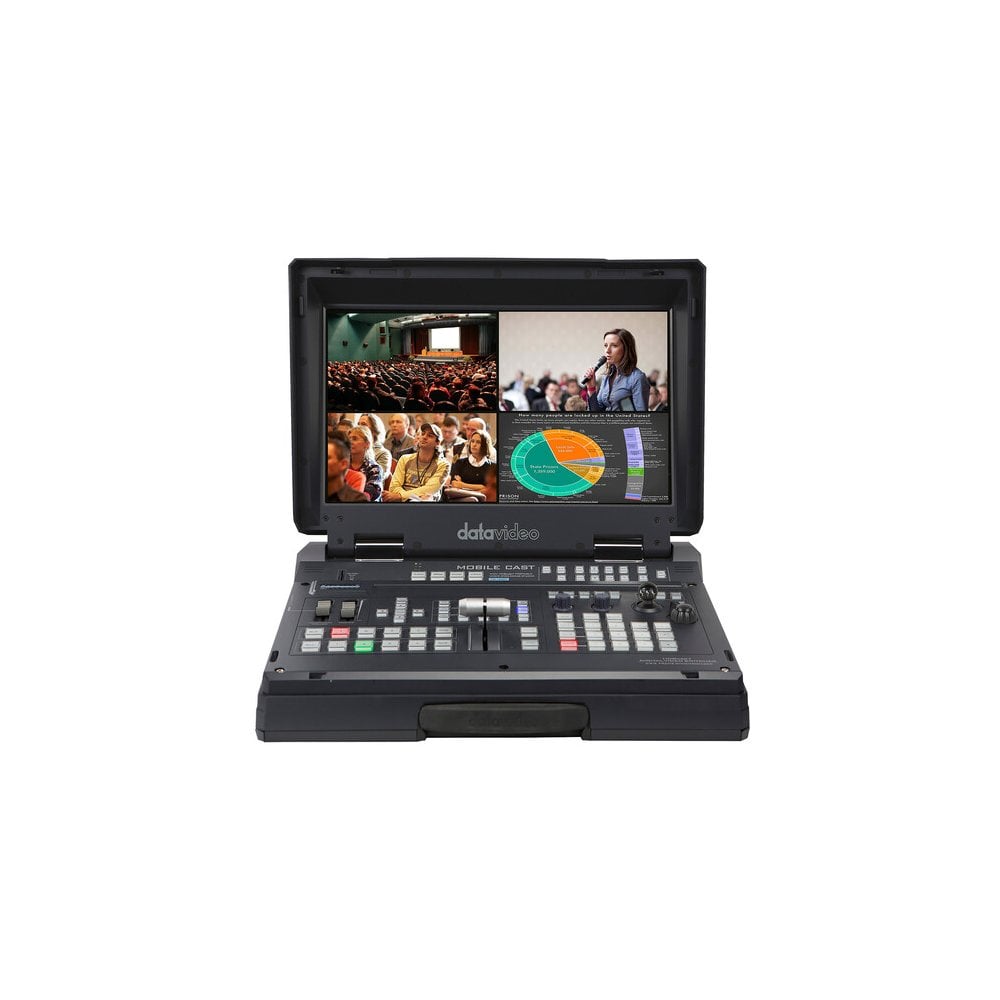

The HS-1600T Mark II is built into a suitcase-like form with a 17.3" TFT LCD monitor with 1920 x 1080 resolution built into the lid. The rest of the unit features all the switcher controls, including a T-bar for transitions, a joystick, audio sliders, and a host of buttons for controlling your PTZ cameras, inputs, program outputs, and streaming video. There are also 2RCA and XLR audio inputs to mix analog audio into your program.

The monitor supports multiview mode, while the HDMI and streaming output support your program output. The switcher also supports popular mix effects, including picture-in-picture, wipe, mix, and fade, and it incorporates one upstream keyer. It can also send red and green tally signals via the built-in tally connector. The built-in real-time encoder enables live streaming, and you can stream and record your program at the same time.

Applications

Live event meeting

Tradeshow

Town hall

Government event

House of worship

Sports

Musical performances

Switching Type Pushbutton, T-Bar

Audio Processing 48 kHz / 16-Bit

Input

Number of Video Input Sources 4

Video Inputs 1 x HDMI Female

3 x RJ45 (HDBaseT) Female

Input Video Format HDMI / RJ45

1080p at 50/59.94/60 fps

1080i 50/59.94/60 fps

720p 50/59.94/60 fps

576i / 625 lines 50 fps

480i / 525 lines 59.94 fps

Audio Inputs 2 x XLR 3-Pin Stereo Analog Female

1 x 2RCA Stereo Analog Female

Input Audio Format Analog: 48 kHz / 16-Bit

Embedded Audio Input HDMI: 2-Channel (per Input)

RJ45: 2-Channel (per Input)

Output

Video Output Channels 4

Video Outputs 3 x HDMI Female (Program)

1 x RJ45 (HDBaseT) Female

1 x RJ45 Female

Output Video Format HDMI / RJ45

1080p at 50/59.94/60 fps

1080i 50/59.94/60 fps

720p 50/59.94/60 fps

576i / 625 lines 50 fps

480i / 525 lines 59.94 fps

Audio Outputs 1 x 1/8" / 3.5 mm TRS Stereo Analog Female

Output Audio Format Analog: 48 kHz / 16-Bit

Embedded Audio Output HDMI: 2-Channel

RJ45: 2-Channel

Multiview Output Yes

Connectivity

Other I/O 1 x DE-15/DB-15 Tally Output

HDCP Support None

IP Video H.264:

1920 x 1080 at 60p (10 Mb/s) Encoding

IP Audio AAC-LC: 32 to 384 Kb/s Encoding

Transport Protocols TCP/IP, RTMP, RTMPS, RTSP, TCP, UDP

Simultaneous Streams 1 Streams

Recording Media 1 x SDXC, SDHC (UHS-I [104 MB/s])

Recording Modes 1920 x 1080p (MP4 via H.264/AVC)

Display

Display Size 17.3"

Screen Resolution 1920 x 1080

Hardware

Wi-Fi None

Bluetooth None

Power I/O 1 x XLR 4-Pin (48 VDC at 4.1 A) Input

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C

General

Effect Types 3 x Graphic, Transition, Luma Key

Audio Mixing 4-Channel Mixing

Dimensions 17.9 x 14 x 5.3" / 45.5 x 35.5 x 13.4 cm

Weight 17.2 lb / 7.8 kg

Packaging Info

Package Weight 25.12 lb

Box Dimensions (LxWxH) 22.5 x 22.4 x 9.5"

In the Box

Datavideo HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio

56V Power Supply

AC Power Cord

3 x Cat 6 Ethernet Cable (55")
