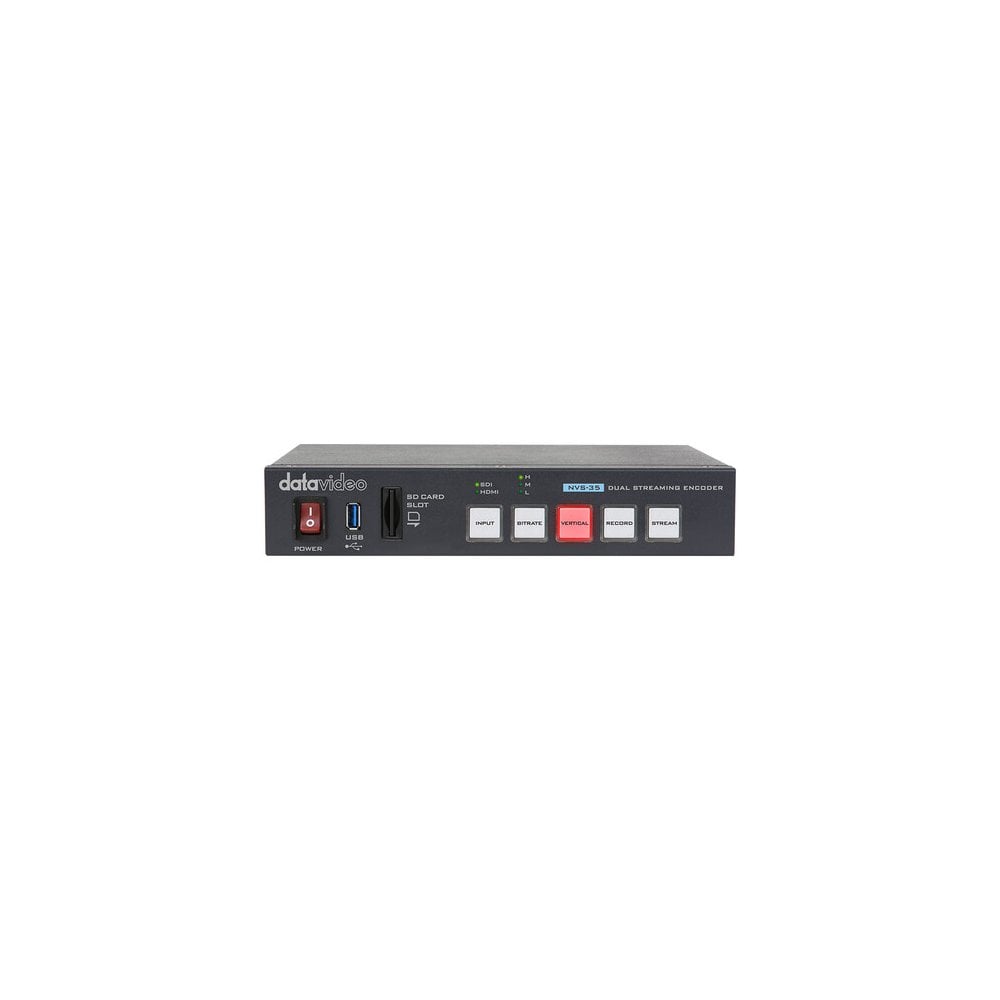

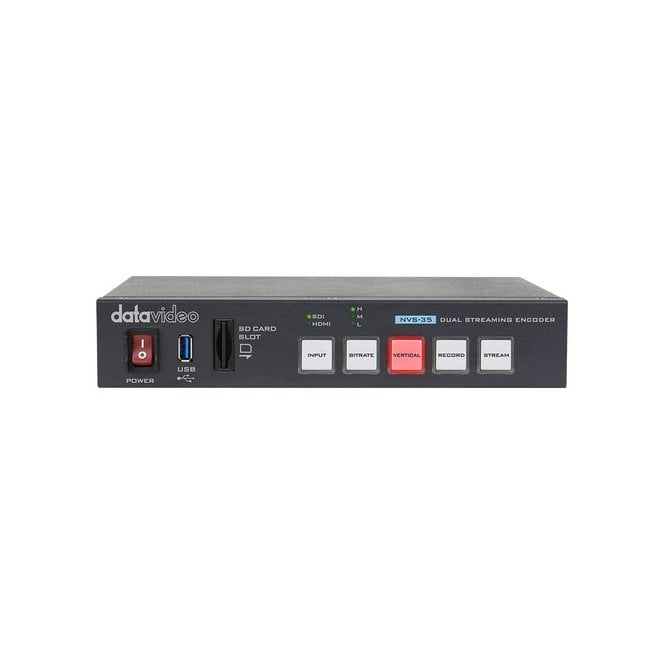

Datavideo NVS-35 H.264 Dual Video Streaming Encoder

Datavideo NVS-35 H.264 Dual Video Streaming Encoder(DATA-NVS35)

Simultaneously stream up to 1080p60 H.264/AVC video to two web destinations such as Facebook, YouTube, Twitch, Amazon Web Services, and others with the H.264 Dual Streaming Encoder/Recorder from DataVideo. The encoder has one HDMI input and one 3G-SDI input with a maximum resolution of 1080p60, and it can input analog audio for embedding via its RCA and 3-pin XLR inputs. It is capable of two simultaneous streams via its Ethernet port using common protocols such as RTMP/RTSP and SRT in H.264/AVC encoding format.

You can simultaneously record your stream to an SD card via its built-in card slot for editing and archiving. It is also compatible with dvCloud, an optional subscription service that allows you to manage your streams and record H.264 programs over the Internet. It allows you to encode in a variety of resolutions from 128 x 128 to 1920 x 1080, and it also supports vertical streaming to accommodate smartphone streaming clients.

Simultaneous Streaming and Recording

Simultaneous live streaming and recording in H.264 format is supported, suitable for a variety of applications.

Multiple Input Configurations

HDMI and SDI video input is supported; XLR and RCA audio inputs are provided.

Direct Recording to SD Card

Support for FAT32, exFAT, and NTFS file systems and continuous recording without file size limitation.

Dual Streaming

Simultaneously live streaming to two platforms such as YouTube and Facebook.

Vertical Screen Streaming

Viewers using a smartphone to watch the video stream may prefer vertical orientation. The NVS-35 offers a vertical screen streaming function and you can easily create a vertical-oriented video with a few basic settings.

Selectable Audio Output

Optional embedded audio/external audio/mixed audio with wide compatibility.

SRT Streaming Protocol

Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.

Workflow with all Datavideo Products

Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Compatible with dvCloud

Get the most out of your streaming hardware using dvCloud. The NVS-35 is seamlessly compatible with Datavideo's dvCloud service. This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders. You can also record your production on the dvCloud platform in H.264 format. After recording, you can directly use this recording to upload it to your favorite content platform.

WebUI OS Compatibility

Operating Systems

Microsoft Windows 8.1 (64-bit)

Microsoft Windows 10 (64-bit)

Web Browsers

Microsoft Internet Explorer

Microsoft Edge

Google Chrome

Video Inputs 1 x HDMI Female

1 x BNC (3G-SDI) Female

Audio Inputs 1 x 2RCA Stereo Analog Female

2 x XLR 3-Pin Analog Female

Video Outputs 1 x RJ45 Female

Audio Outputs None

Other I/O 1 x USB-A Firmware Input

Expansion Slots None

Latency HDMI Input: to 2 Frames

Input Video Format HDMI / SDI

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 50/59.94/60 fps

576i / 625 lines 50 fps

480i / 525 lines 59.94 fps

Input Audio Format Analog

Output Audio Format Analog: 48 kHz / 16-Bit

Embedded Audio LAN (RJ45)

Standards

HDR Compatibility Not Specified by Manufacturer

IP Streaming

Video IP Encoding H.264, RTMP, RTP, RTSP, SRT, TCP, UDP: 128 x 128 to 1920 x 1080 at 30p, 60p

Hardware

Media Card Reader 1 x SDXC (UHS-I [104 MB/s])

Wi-Fi None

OS Compatibility Windows

*As of March, 2022: Check with manufacturer for the most up-to-date compatibility

Power

Power I/O 1 x Barrel (12 VDC) Input

Power Consumption Device: 11 W

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

General

Dimensions 8.7 x 3.7 x 1.9" / 220 x 95 x 47 mm

Weight 1.7 lb / 780 g

Packaging Info

Package Weight 2.5 lb

Box Dimensions (LxWxH) 12.7 x 8.4 x 4.4"

In the Box

Datavideo H.264 Dual Streaming Encoder/Recorder

12 VDC Power Supply
