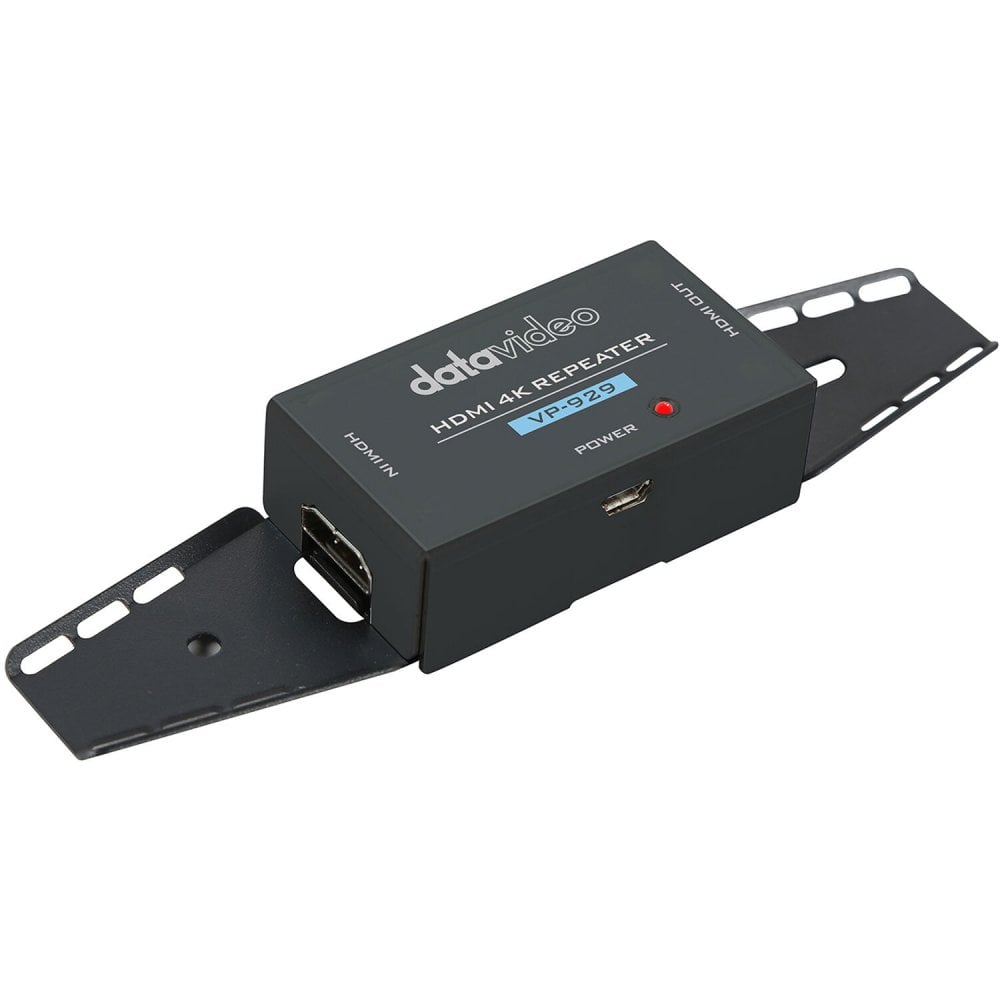

Datavideo UltraHd Hdmi Repeater

Datavideo UltraHd Hdmi Repeater(DATA-VP929)

Extends your HDMI 2.0 signal with 1080p or DCI 4K60 resolutions up to 197' with the plug-and-play 4K HDMI Repeater from Datavideo. Adding a repeater to your HDMI video setup bypasses the usual limitations on HDMI cable lengths. No drivers are required to set up and configure the repeater, for easy, plug-and-play operation.

This repeater can extend UHD/DCI 4K 4:4:4 signals up to 33', HD 1080p signals up to 49', and by cascading/daisy-chaining multiple repeaters, you can extend an HD 1080p HDMI signal up to 197'. The signal also supports up to 7.1 surround embedded audio, and it also supports HDCP 2.2.

The compact and durable design of this unit allows it to be discreetly tucked away out-of-sight in any video environment. The unit can be powered using inline power via the HDMI cables, or by using a separately available standard 5V USB power supply with the unit's mini-USB power connector.

Inputs

1 x HDMI (HDMI 2.0) Female

Embedded Audio Input

HDMI: 7-Channel

Outputs

1 x HDMI (HDMI 2.0) Female

Standards

HDCP Support

Version 2.2

EDID Support

None

Transmission

Max Transmission Distance

DCI 4K, UHD 4K:

32.8' / 10 m

1080p:

49.2' / 15 m

Video Format

HDMI (8/10-Bit 4:4:4/4:2:0)

DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps

UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

PAL: 50 fps

NTSC: 59.94 fps

Power

Power Connector

1 x USB Mini-B (5 VDC) Input

Environmental

Operating Temperature

32 to 72°F / 0 to 40°C

General

Dimensions

5.7 x 1.5 x 0.8" / 14.5 x 3.9 x 2.1 cm

Weight

3.5 oz / 100 g

Packaging Info

Package Weight

0.3 lb

Box Dimensions (LxWxH)

5.8 x 4.3 x 1.1"

In the Box

Datavideo 4K HDMI Repeater
