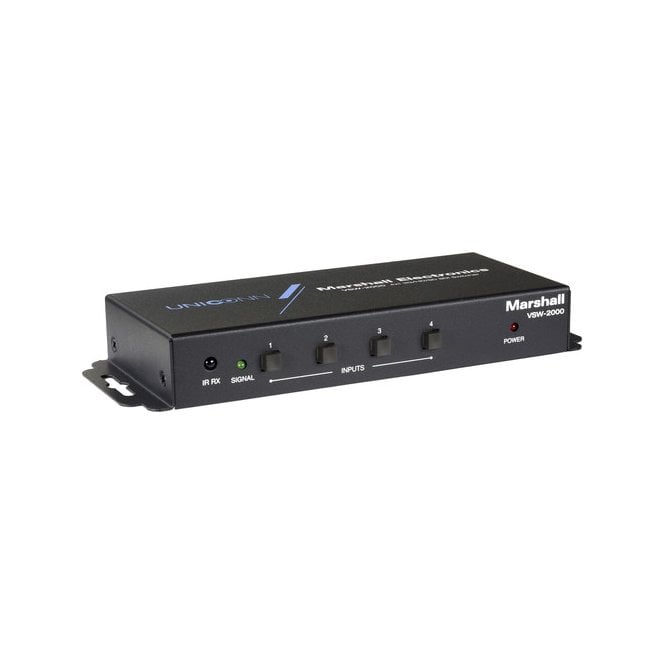

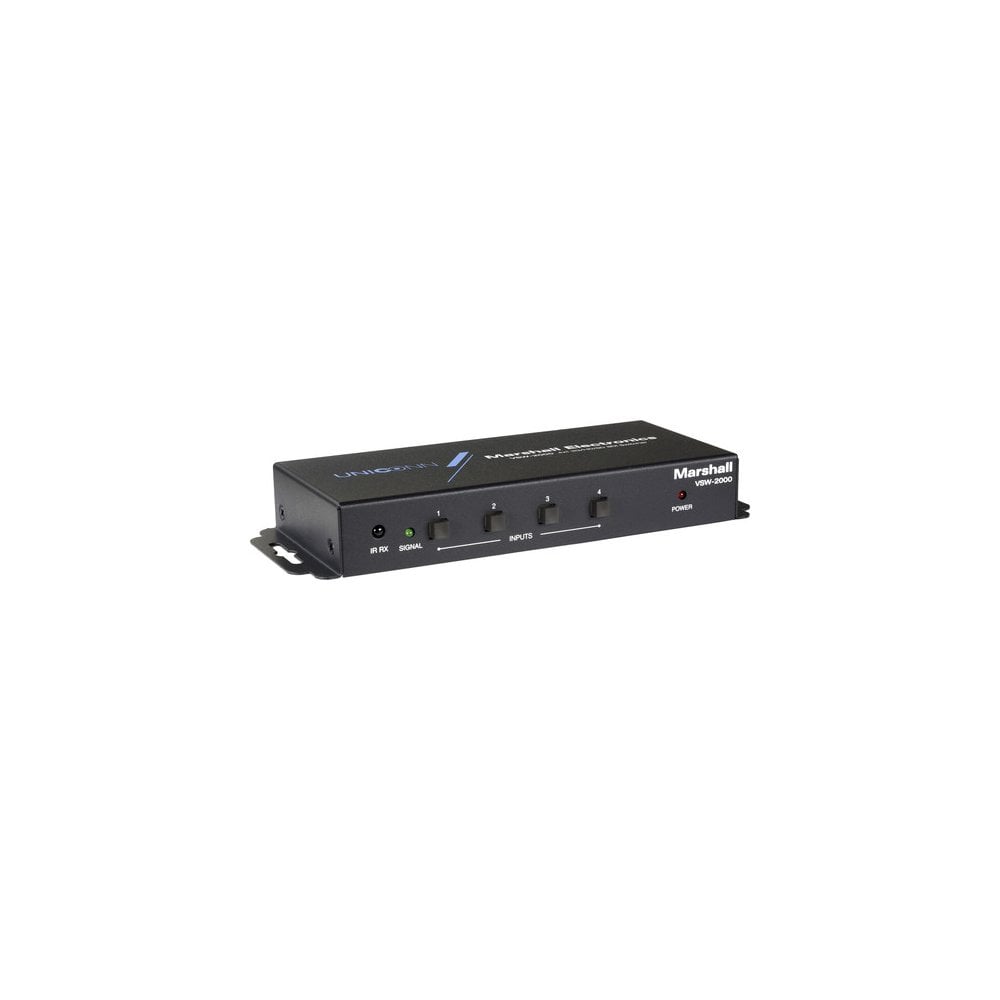

Marshall VSW-2000 Electronics 4x1 3G-SDI Switcher

Marshall VSW-2000 (VSW/2000, VSW_2000, VSW 2000, VSW2000, vsw-2000) Electronics 4x1 3G-SDI Switcher

Simply switch between four SDI sources with the Marshall Electronics VSW-2000 4x1 3G-SDI Switcher. Four SDI inputs accept SD, HD, and 3G-SDI signals from cameras, recording decks, and other professional equipment and with the push of a button on the front panel, sends one selected signal to the SDI output. The VSW-2000 analyzes incoming signals in order to optimize transmission. The SDI output is re-clocked to ensure that long cable lengths can be used. For convenience, the included infrared remote control can perform input selection functions. Alternatively, the RS-232 interface can be used.

• SDI Standards: SD, HD, 3G
• Protocols: DVB-ASI at 270 Mbps, SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-425M
• Video Bandwidth: 2.97 Gpbs, 2.97/1.001 Gbps
• Re-Clocking: Yes

Cable Equalization:

• 3G: Up to 300' / 90 m
• HD: Up to 500' / 150 m
• SD: Up to 1000' / 300 m

• Inputs: 4 x BNC SDI
• Outputs: 1 x BNC SDI

Eye Pattern Characteristics:

• Amplitude: Within 800 MV ( Rise Overshoot: Less than 2% ( Fall Overshoot: Less than 2% ( Long Time Jitter: 0.195 UI ( Timing Jitter: 0.8 UI ( Alignment Jitter: 0.13 UI)
• Power Supply: 5 VDC, 4 A
• Power Consumption: 5 W (max)

Environmental:

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 140°F/ -20 to 60°C
• Humidity: 20 to 90% RH, non-condensing
• Dimensions: 6.5 x 2.8 x 1.0" / 165 x 71 x 26 mm
• Weight: 14.5 oz / 411 g

In the Box

• Marshall Electronics VSW-2000 4x1 3G-SDI Switcher
• IR Remote Control
• Power Supply
