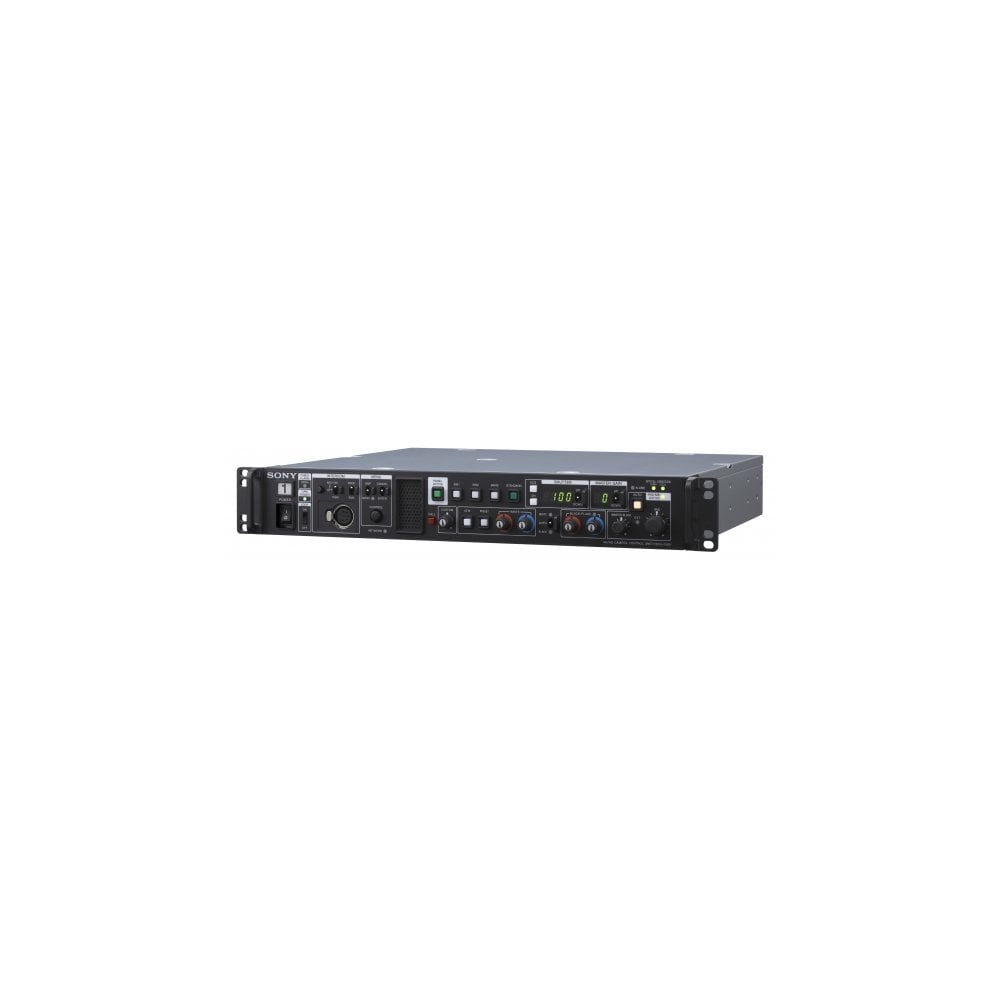

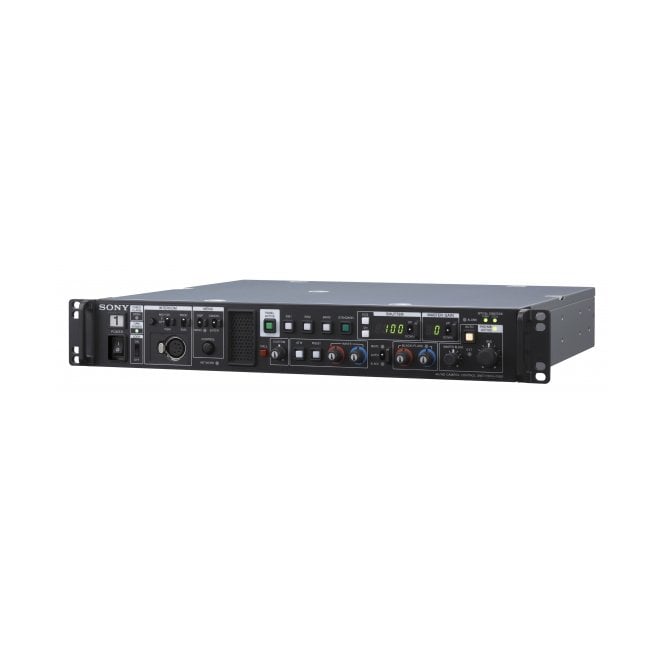

Sony 4K/HD Camera Control Unit for HXC-FB80 Cameras

Sony HXCU-FB80L//U (HXCU_FB80N//U, HXCU/FB80N//U, HXCU FB80N//U) (HXC/FB80, HXC_FB80) 4K/HD Camera Control Unit for HXC-FB80 Cameras

The HXC-FB80 is a cost-effective high-performance HD portable camera with three Sony 2/3-inch Exmor™ CMOS sensors and a 3G-SDI platform capable of 1080/50p and 59.94p signal processing while achieving low power consumption. In combination with the HXC-FB80 HD Camera, HXCU-FB80* CCU offers user-beneficial expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma) for a future-proof solution. The optional PC-based HZC-RCP5 Remote Control Panel is available for a simpler application system.

• HXCU-FB80N CCU model and HXC-FB80N camera model both equipped with Neutrik connector interface.
• HXCU-FB80L CCU model and HXC-FB80N camera model both equipped with Lemo connector interface.

General

• Dimensions: 482 x 66 x 366 mm (19 x 2 5/8 x 14 1/2 inches)
• Mass: 6.2kg (13lb 11oz)
• Signal Format: 4K 2160 : 59.94p, 50p (2SI, SQD, Level-A/B), HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720 : 59.94p, 50p, SD 480 : 59.94i, 576: 50i

Input/Output

• Camera: (N): Optical Fiber (x1), CCFN Sony Hybrid Cable or Single Mode Fiber Cable (LC type), (L): Optical Fiber (x1), Lemo Cable
• Distance of Power Supply: (N): 600m (max.) by CCFN Sony Hybrid Type Fiber Cable
• (L): 600m (max.) by Lemo Cable, Distance of Fiber Cable by Local Power Supply (N): 10km (max.) by Single Mode Fiber Cable (LC type)

Output

• SDI Out (SLOT-1) HD/SD: BNC (x4), HD-SDI/SD-SDI selectable
• SDI Out (SLOT-2) 3G/4K/HD Trunk: BNC (x4) : 4K/3G-SDI 1 to 4: 2160/59.94p, 50p, 1080/59.94p, 50p, 4K/12G-SDI 1, 2: 2160/59.94p, 50p, HD 3G-SDI: 1080/59.94p, 50p,HD-SDI 3, 4: HD Trunk 1080/59.94i, 50i, 4K/3G/HD Trunk: Selectable

In the box

• 1x Camera Control Unit
• 1x Tally Number Plate Set (0~9)
• 1x Operating Instructions Camera Operation Manual CD-ROM (JP, GB, FR, DE, IT, ES, CS)
• 1x Operation Guide
• 1x Warranty booklet
