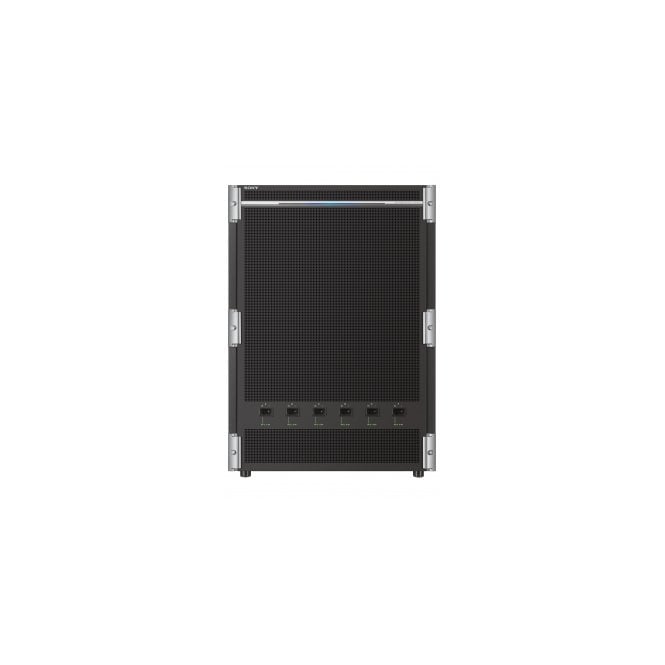

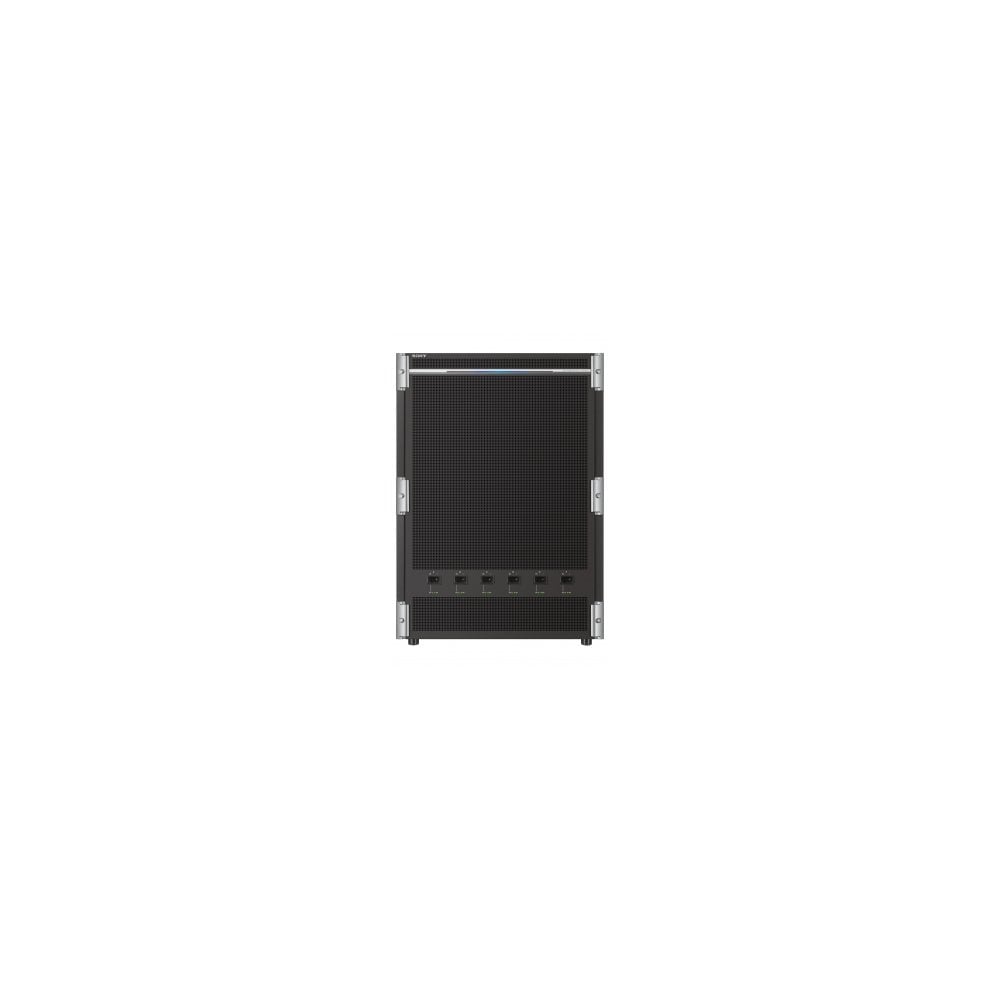

Sony 5ME 4K Multi-Format Video Switcher

Sony XVS-9000 (XVS_9000, XVS/9000, XVS 9000) 5ME 4K Multi-Format Video Switcher

The XVS-9000 expands 4K production capacity, offering more inputs and outputs as well as featuring new 4K 3D DME capabilities. With the XVS-9000 come advanced IP and SDI interfaces that are compatible with the entire XVS switcher line-up. 100G IP interface boards fully support SMPTE ST 2110, and new 12G-based SDI interface boards increase flexibility even further by enabling IP/SDI hybrid operating environments. The modular-style design of the ICP-X7000 X-Panel assignable control panel allows highly flexible configuration to suit a wide range of operational needs.

IP Live Switcher

• The core of the new generation IP Live production system supports the SMPTE ST 2110 Professional Media Over Managed IP Networks suite of standards, enabling a mixed IP and SDI production environment.

12G-SDI based live switcher

• The XVS-9000 supports 12G-SDI interfaces functioning on-board format conversion for every incoming and outgoing video signal to offer greater options for applications such as in-house studios, OB vehicles and flypacks.

Powerful 4K switcher

• 4K production capability similar to HD production, with 5 M/E, 80 inputs, 40 assignable outputs for 4K and format converter outputs, plus up to 10 full keyers and 10 sub keyers, enabling simultaneous 4K and HD operation, and powerful 4K features.

4K 3D Digital Multi Effects (DME)

• The newly developed 4K DME board offers up to 4 channels of floating 4K 3D DME capability for the XVS-9000. This 4K DME board can also be configured with the XVS-8000 and XVS-7000 switchers (up to 2 Ch), and the XVS-6000 switcher (1 Ch).

Evolutionary switcher controller

• The XVS-9000 utilises the ICP-X7000 X-Panel for very flexible panel configuration with a modular style design, OLED display, RGB XPT buttons and LCD button pad. The button layout is also re-designed. The X-Panel has a flexible mounting style for flat or curved mounting, or even for splitting into two positions.

General

• Mass: Approx. 87 kg (when equipped with all installable option boards)
• Remote Control Connector
• Network (MVS Lan): RJ-45, complies with 1000BASE-T standard
• Network (UTL Lan): RJ-45, complies with 1000BASE-T standard

Reference Input

• Reference Input: REF IN BNC type, 75Ω with loop-through output, HDTV systems: HD tri-level sync / SDTV analog black burst / SDTV analog sync, SDTV systems: Analog black burst / analog sync

AC Input

• AC IN A, B, C, D, E, F: 3-pin AC connector

Input/Output

• Maximum Number of Inputs: BNC (x 160) for primary inputs
• Maximum Number of Outputs: BNC (x 80) for outputs, BNC (x 16) for format converter outputs/Multi Viewer (4CH)

In the box

• 1x Sony XVS-9000 5ME 4K Multi-Format Video Switcher
• 1x Instruction Manual
