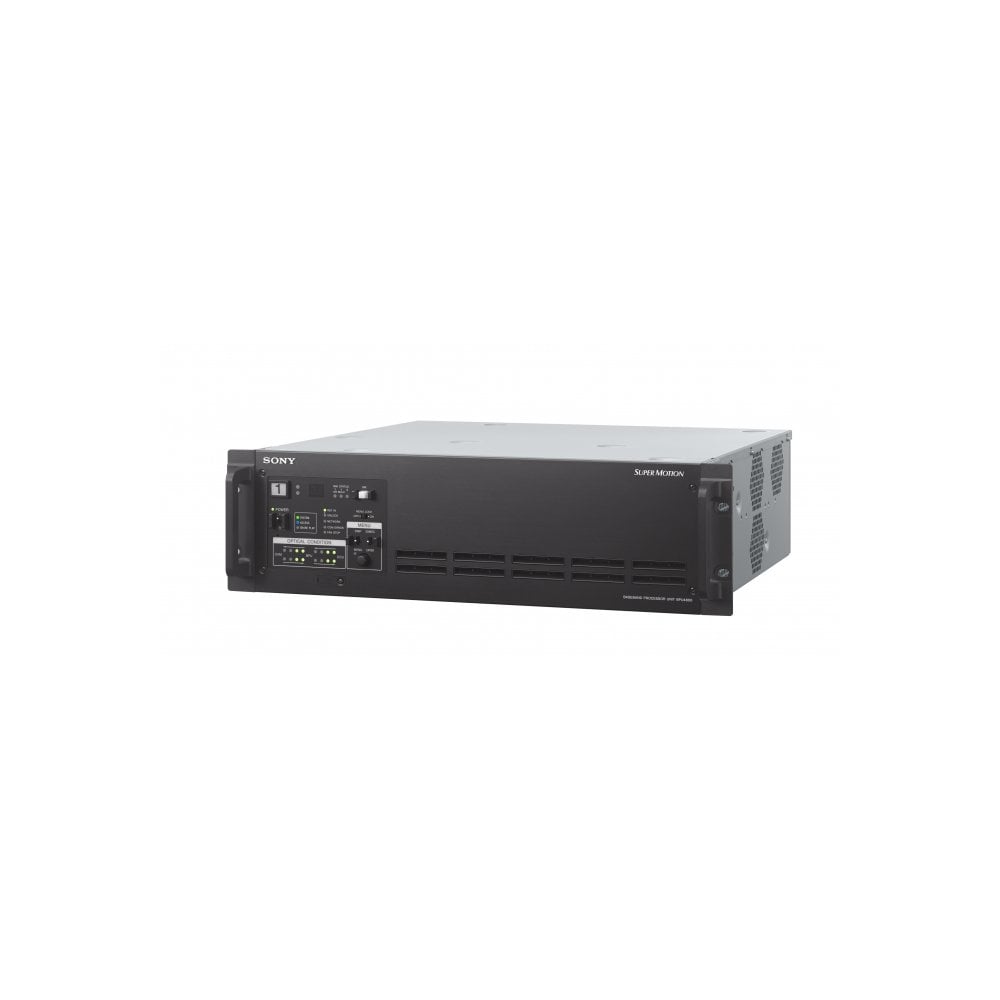

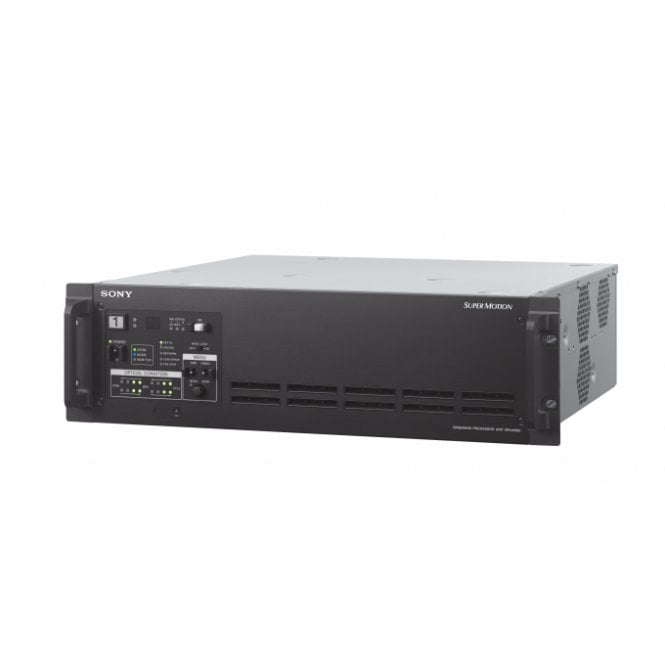

Sony Baseband Processor Unit and UHFR Server for HDC-4800 System Camera

Sony BPU-4800 (BPU_4800, BPU/4800, BPU_4800) (HDC/4800,HDC_4800) Baseband Processor Unit and UHFR Server for HDC-4800 System Camera

A perfect complement for the HDC-4800, the BPU-4800 combines baseband processing and UHFR server functions in a single, compact rack-mounting unit. The BPU-4800 handles recording and playback of all your UHFR content, with no need for a separate server dedicated for ultra slo-mo, giving up to four hours 4K UHFR storage. Integration with the PWS-4500 through the real-time Share Play network also allows fast, seamless highlight editing. Record full-resolution 4K Ultra HD images from the HDC-4800 at up to 8x or Full HD at 16x to reveal split-second action. The unit also allows you to create a powerful replay server system, plus gives you Full HD cutout and zoom capabilities.

General

• Power Requirement: 100 V to 127 V/200 V to 240 V AC, 50/60 Hz
• Current Consumption: 4.5 A (max)
• Operating Temperature: 5 °C to 40 °C (41 °F to 104 °F)
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Mass Approx.: 16.5 kg (36 lb 6.0 oz)
• Dimensions (W X H X D): 424 x 132 x 410 mm (16 3/4 x 5 1/4 x 16 1/4 inches)

Input/output Connectors

• Camera: Optical/electrical multi-connector (LEMO 3K.93C connector) (x1)
• Ccu: Optical/electrical multi-connector (LEMO 3K.93C connector) (x1)
• Remote (Rcp/cnu): 8-pin multi-connector (x1)
• Lan: 8-pin (x1)
• Share Play: 1/2 SPF+ (x2)
• Remote 1/2: RJ-45 (x1)
• Gpio (25p): 25-pin D-Sub, female (x1)
• Network1 To 2 Rj-45 (X2): 1000BASE-T
• Maintenance: USB (x1)
• Network Sfp+ (X1): 10GBASE-SR/LR (Add-in Card)

Input Connectors

• Ac In 100 V To 127 V/200 V To 240 V Ac (X2): SDI1, SDI2, BNC (x2)
• 3G-SDI: SMPTE ST424/425 Level-A/B, 2.970 Gbps/2.967 Gbps
• HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• Reference In: BNC (x1), HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/, PAL: 0.3 Vp-p, 75 Ω)
• Timecode Input Bnc (X1): 0.5 Vp-p to 5 Vp-p, 10 kΩ
• Digital Audio (Aes/ebu) Input: BNC (x4), CH 1/2 to CH 7/8, AES/EBU format, unbalanced
• Note: When connecting devices for AES/EBU signal input/output, use a cable whose length is less than 300 meters (984 feet).

Output Connectors

• 3G SDI Output (Slot1 Live): BNC (x8), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps
• 3G/HD/SDI Output (Slot1 Replay): BNC (x8), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps 3G-SDI/HD-SDI selectable
• 3G/HD SDI Output (Slot2 Replay): BNC (x2), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps, 3G-SDI/HD-SDI selectable
• HD SDI Output (Slot3 Live): BNC (x1), HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• HD SDI Output (Slot3 Replay): BNC (x1), HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• Reference Out: BNC (x1), HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Composite sync, 0.3 Vp-p, 75 Ω, HD SYNC/SD SYNC selectable
• NMI-lan (Slot1 Live): SFP+ (x2), 10G BASE-** (using SFP+ transceiver module), NMI-LAN (SLOT1 REPLAY), NMI-LAN (SLOT2)
• Timecode Output: BNC (x1), 1.5 Vp-p, low impedance
• Digital Audio (Aes/ebu): OUTPUT BNC (x4), CH 1/2 to CH 7/8, AES/EBU format, unbalanced
• Supplied Accessories: Number plates (1 set), Before Using this Unit (1), Operating Instructions (CD-ROM) (1), Cable, RJ45-DSUB, Part No. 1-848-424-12 (SONY) (1)

In the box

• Baseband Processor Unit and UHFR Server for HDC-4800 System Camera
