Sony CCU Extension Adapter

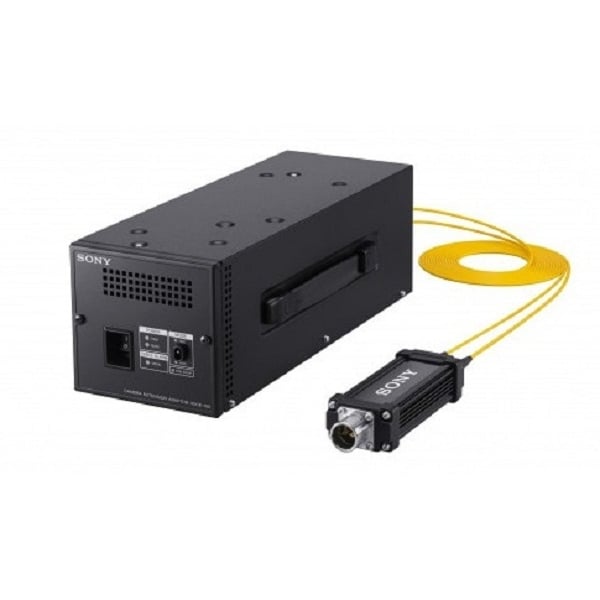

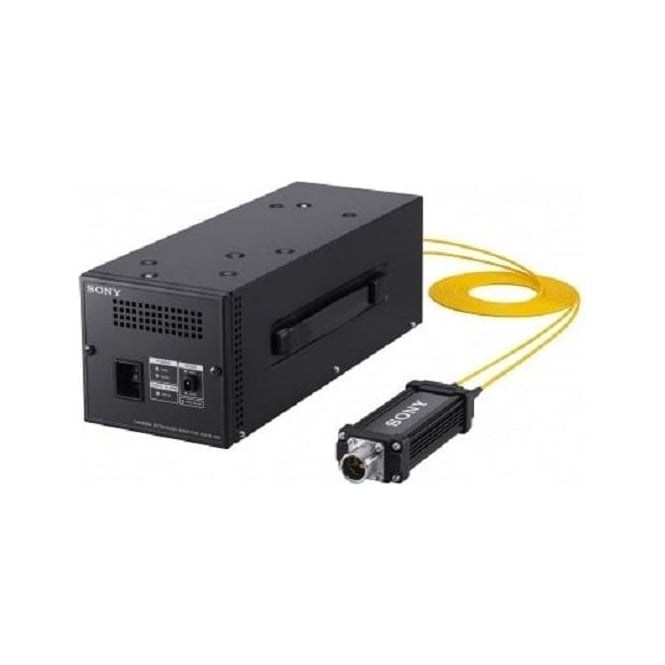

Sony HKCU-SM100 (HKCUSM100, HKCU/SM100, hkcu-sm100) CCU Extension Adapter

The HKCU-SM100 CCU extension adaptor works with the HDCE-100 camera extension adaptor to meet the fast-growing demand for an affordable total system solution for long-distance transmission with single mode fibre cable (SMF).

The HKCU-SM100 and the HDCE-100 are designed for easily converting the cable format between the camera head and base station Camera Control Unit (CCU) from SMPTE optical fibre to SMF. The HDCE-100 on its own extends the distance between camera head and CCU. With the HKCU-SM100, the maximum distance extends to 10 km.

In 4K camera systems, the HDCE-100 and HKCU-SM100 can be utilised with the BPU-4000 baseband processor unit to supply power to the CA-4000 camera system adaptor or HDC-4300 camera.

Easy conversion from optical fibre to single mode fibre

• Easy conversion of the cable format between the camera head and base station Camera Control Unit (CCU) from SMPTE optical fibre to single mode fibre cable (SMF).

Long-distance transmission

• Provides transmission on single mode fibre between CCU and 4K, HSC and HDC series cameras of up to 10 km.

• Operating temperature: –10 °C to +40 °C (14 °F to 104 °F)
• Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Mass: Approx. 0.3 kg (11 oz)
• Dimensions (w/h/d): 55 × 35 × 191 mm, (2 1/4 × 1 7/16 × 7 5/8 inches) (with protrusions)
• Connectors: Optical fiber connector (1), ST connector for single mode fiber (2)
• CAMERA to CCU: Camera Video, Audio (INCOM, MIC)
• CCU to CAMERA: Return video, Prompter video, Audio (INCOM, PGM)

In the box

• Sony HKCU-SM100 CCU Extension Adapter
