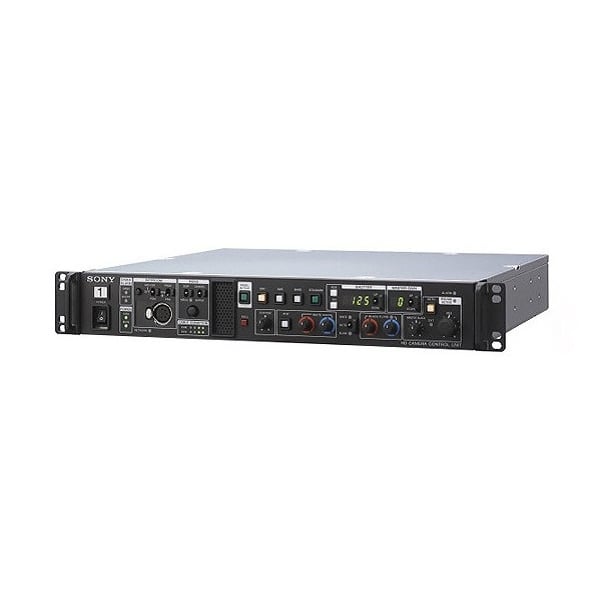

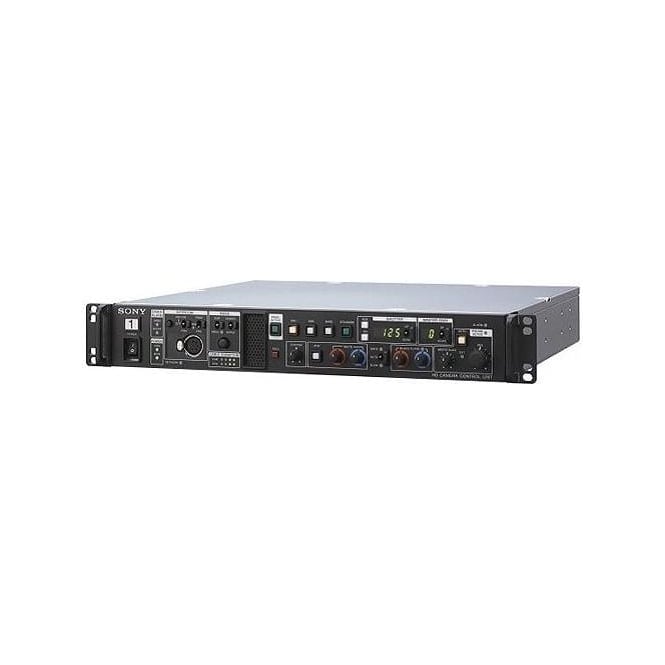

Sony Compact Camera Control Unit for HSC-300R and HSC-100R

Sony HSCU-300RT/4M (HSCU300RT/4M, HSCU/300RT/4M, hscu-300rt/4m) (HSC_300R, HSC/300R) (HSC100R, HSC100R) Compact Camera Control Unit for HSC-300R and HSC-100R

The highly compact 1.5 RU-size HSCU-300R Camera Control Unit creates a standardised 19-inch rack system that is ideal for space-limited production areas. When the blank front panel of the HSCU-300R is replaced with the optional CCU Front Control Panel HKCU-FP2, a simple remote control system can be configured. Many functions of the camera can be controlled by the control knobs and switches on the HKCU-FP2.

Multiple camera control

• Furthermore, when the optional HZCU-MC3 camera operating software is installed, the HSCU-300R allows the HSC-300R or the HSC-100R to be controlled by an MSU-1000/1500 Master Setup Unit or RCP-1000 series Remote Control Unit, enabling the camera to be used as a simple studio system or as part of a large-scale broadcasting system consisting of multiple cameras.

• Power Supply: AC 100 V to 240 V, 50/60 Hz
• Operating Temperature: 5 to 40°C (41 to 104°F)
• Storage Temperature :-20 to +60°C (-4 to +140°F)
• Camera: Triax
• Power Supply: AC 100 V to 240 V, 50/60 Hz
• Operating Temperature: 5 to 40°C (41 to 104°F)
• Storage Temperature :-20 to +60°C (-4 to +140°F)
• Camera: Triax
• Intercom: Intercom/Tally/PGM: D-Sub 25-Pin, Female, Intercom (PROD/ENG), 4W/RTS/CC, 0 dBu, Tally (R, G), PGM 2 Systems, -20/0/+4 dBu
• Remote: 8-Pin Multi-connector
• Trunk: Trunk/Microphone Remote/WF Remote/WF Mode: D-Sub 25-Pin, Female, Trunk: RS-422A 1 System
• LAN: RJ-45 (x1), 10BASE-T, 100BASE-TX
• AC Input: AC 100 to 240 V
• Serial: Return Input: BNC x 2, HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 Ω, 1.485/1.4835 Gbps, SD-SDI: SMPTE 259M, 270 Mbps, HD-SDI/SD-SDI Selectable
• Return: VBS Return Input: BNC x 2, VBS: 1.0 Vp-p, 75 Ω
• Reference Input: BNC with Loop-Through Output BNC, HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75 Ω, SD: Black Burst (NTSC: 0.286 Vp-p, 75 Ω; PAL: 0.3 Vp-p, 75 Ω)
• Input: Prompter Input: BNC x 2, VBS Signal, 1.0 Vp-p, 75 Ω, 2 Channel
• Microphone Output: XLR 3-Pin, Male x 2, 0/-20 dBu
• Output: HD-SDI/SD-SDI: BNC x 2, HD-SDI: SMTPE 292M, 0.8 Vp-p, 75 Ω, 1.485/1.4835 Gbps
• SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 Ω, 270 Mbps,HD-SDI/SD-SDI Selectable
• Monitor Output: HD-SDI/SD-SDI: BNC x 2, HD-SDI: SMTPE 292M, 0.8 Vp-p, 75 Ω, 1.485/1.4835 Gbps, SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 Ω, 270 Mbps, HD-SDI/SD-SDI Selectable
• Outputs: Pr/R/R-Y, Y/G/Y, Pb/B/B-Y: HD Component Video: Y (100% White): 0.7 Vp-p, Pr/Pb (75% Color Bar): 0.7 Vp-p, 75 Ω, HD RGB Video R/G/B (100% White): 0.7 Vp-p, 75 Ω, SD Component Video: Y (100% White): 0.714 Vp-p, Pr/Pb (75% Color Bar): 0.756 Vp-p, 75 Ω
• SD RGB Video R/G/B (100% White): 0.7 Vp-p, 75 Ωv, VBS Interface: BNC x 2, VBS 1.0 Vp-p, 75 Ω
• Other Specifications: PIX Output: BNC VBS/R/G/B (VBS 1.0 Vp-p, 75 Ω)
• Sync/WF Output: BNC
• Sync Output: HD: BTA-S001A, Tri-Level Sync, 0.6 Vp-p, 75 Ω, SD: Composite Sync, 0.3 Vp-p, 75 Ω, HD Sync/SD Sync Selectable
• WF Output: VBS/SEQ/R/G/B (VBS 1.0 Vp-p, 75 Ω)
• Weight: 17.43 lbs (7.9 kg)
• Compatibility: Compatible with Sony HSC-300R and HSC-100R Cameras

In the box

• Sony HSCU-300RT/4M Compact Camera Control Unit for HSC-300R and HSC-100R
