Sony Compact Camera Control Unit

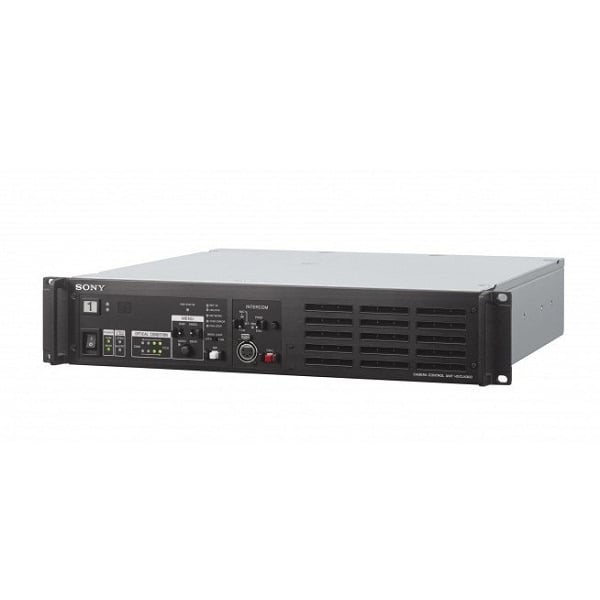

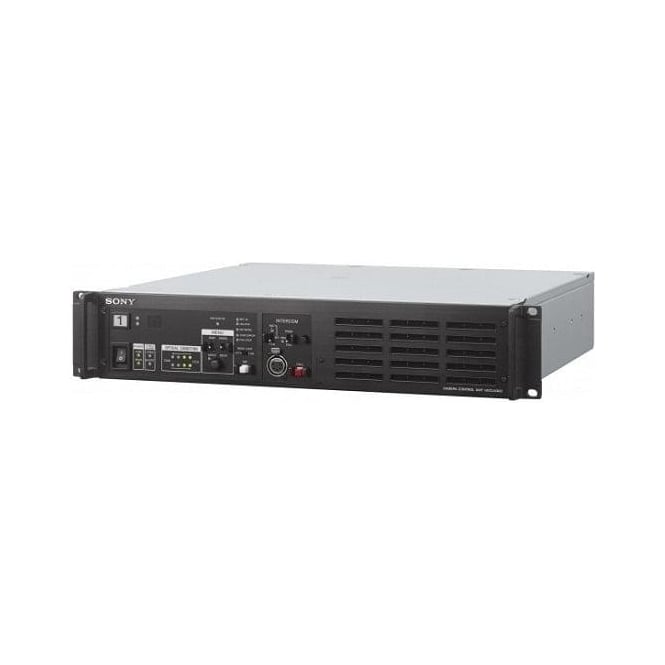

Sony HDCU-4300 (HDCU4300, HDCU/4300, hdcu-4300) Compact Camera Control Unit

Designed specifically for the HDC-4300 camera head owing to its 10Gbps fibre connection, the rackmount fitting HDCU is a CCU and BPU in a single unit. Supports IP network media interface using an optional HKCU-IP43F (not supplied).

The HDCU-4300 is a space-saving, compact 2U full-rack sized camera control unit (CCU) and 4K / HD for IP baseband processor unit (BPU) with built-in IP and SDI interfaces designed to give flexibility to Outside Broadcast (OB) operations. The unit enables either 4K or HD IP operations through a single Networked Media Interface (NMI)*, alongside SDI outputs. The unit is also HDR (High Dynamic Range) ready** and can handle High Frame Rate (HFR) HD up to 8x slow motion***. The HDCU-4300 combined with the HDC-4300 camera offers OB operators a uniquely flexible, space-saving BPU/CCU for advanced 4K/HD IP operation.

• Single NMI is 4K or HD selectable.
• HDR: single output supports ITU BT.2020/S-Log3.
• HFR requires optional software SZC-4002.

Space-saving compact design gives OB operators more flexibility

• The 2U full-rack sized combined CCU/BPU is designed to save space and weight in OB trucks, while offering flexibility of outputs for SDI and IP operations in 4K and HD.

4K or HD IP operations supported

• The combined BPU/CCU HDCU-4300 works with the HDC-4300 4K/HD camera, enabling 4K or HD IP operations through the single NMI.

LIVE-HDR ready

• The unit is HDR ready, with ITU BT.2020/S-Log3 supported.

Up to 8x slow motion Full HD interlace pictures

• The unit can handle a variety of HFR HD, including at 480i/400i (8x slow motion) and 360i/300i (6x slow motion) interlace mode only. It also supports HD 4x, 3x and 2x slow motion in both progressive and interlace modes.

• Compatibility: HDC-4300

In the box

• Sony HDCU-4300 Compact Camera Control Unit
