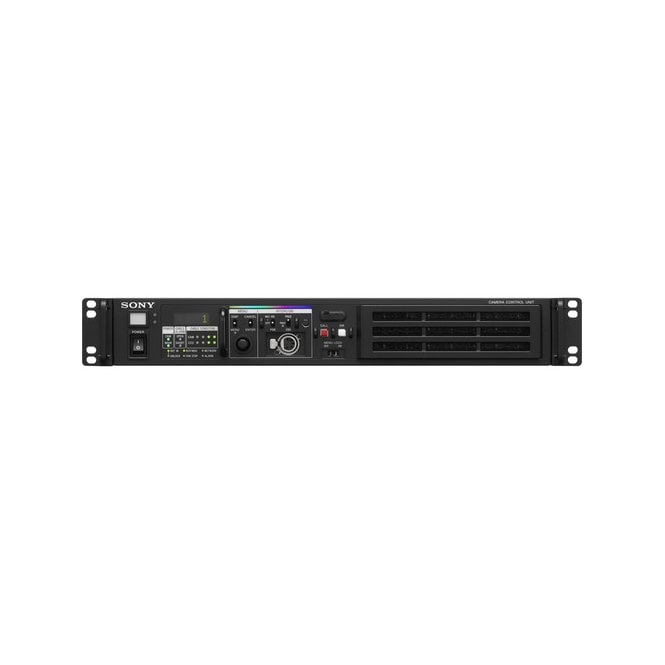

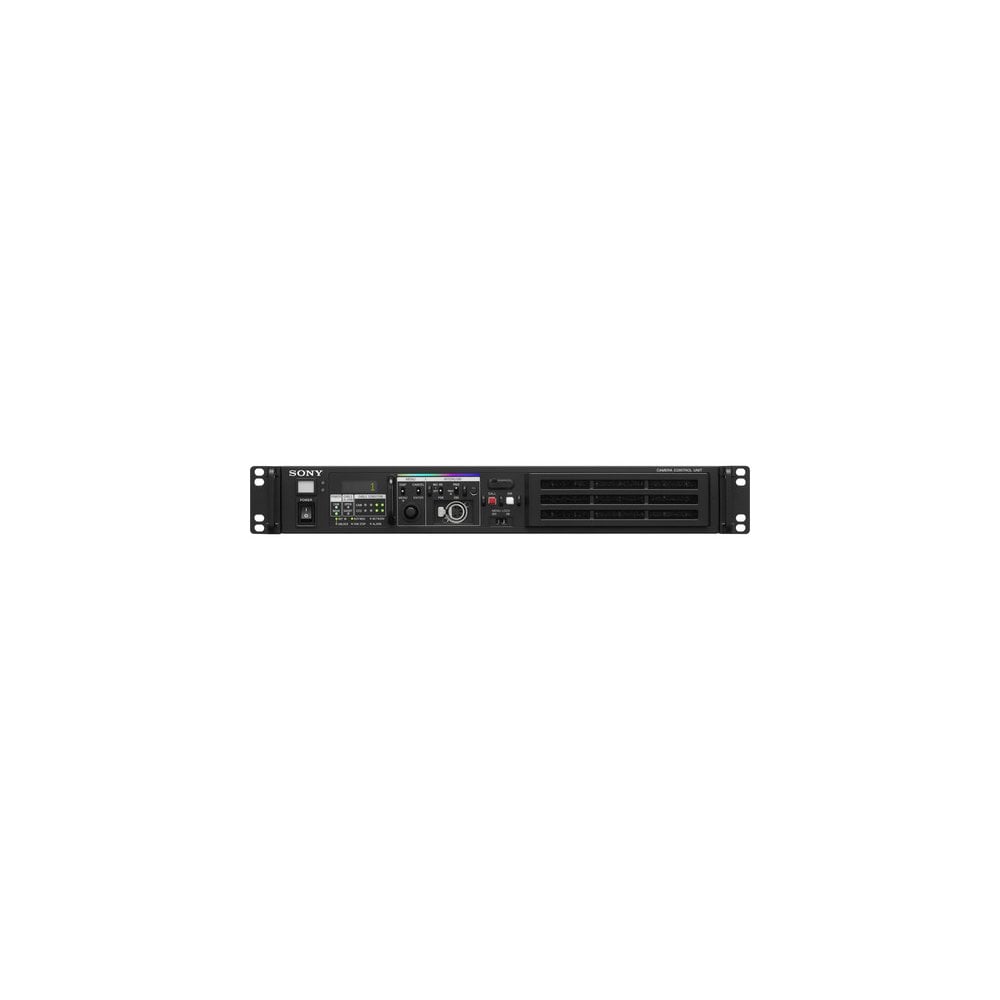

Sony Full Rack Wide Single Mode Fibre Camera Control Unit (CCU)

Sony HDCU-3100 (HDCU/3100, HDCU_3100, HDCU3100) Full Rack Wide Single Mode Fibre Camera Control Unit (CCU)

The HDCU-3100 camera control unit adds IP capabilities to our full range of broadcast and studio system cameras, from the flagship 4K HDC-4300 to the HDC-2000/1700 series and HSC fibre system cameras. Connecting to compatible cameras via optical fibre cable, the compact HDCU-3100 supplies power to the camera, performs signal processing and provides an interface with external equipment.

Combined with the HKCU-SFP30 option board, designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, the HDCU-3100 camera control unit supports essential functionalities required for live IP production including tally, intercom and return. By installing the optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected with an HDC-Series System Camera. In addition, adding the optional 12G-SDI Interface Kit HKCU-SDI30 allows transfer of 4K signals through a single BNC cable.

Compact and Versatile

• The 1.5 RU-size Camera Control Unit creates a standardised 19-inch rack system that is ideal for space-limited production areas.

IP Functionality for live production

• The optional HKCU-SFP30 interface kit adds essential functionality required for IP live production such as Tally, Intercom and Return.

Eight built-in SDI outputs

• The HDCU-3100 is equipped with eight built-in SDI outputs, including four 3G-SDI outputs. A built-in USB connector slot and support of 12G-SDI will both be available in future updates.

4K output option

• By installing an optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected to an HDC-Series System Camera. In addition the HDCU-3100 with an optional 12G-SDI Interface Kit HKCU-SDI30 can transfer 4K signals through a single BNC cable.

High Quality Long Distance Signal Transmission

• The optical fibre transmission system maintains high picture quality across cable runs of up to 2000 m. Combined with the HKCU-SM30 interface kit, the compact HDCU-3100 can be directly connected on Single Mode Fibre (SMF) for long distance transmission up to 10Km, making it ideal for space-limited operations like OB Trucks.

General

• Power Requirements: 100v to 240V AC, 50/60 Hz
• Current Consumption: 4.5A (max.)
• Operating Temperature: 5degrees to 40degrees
• Storage Temperature: -20degrees to +60degrees
• Mass: Approx 7.3Kg
• Input/Output Connectors
• Camera Fibre: Optical Fibre Connector
• Intercom/Tally/IO Port: D-Sub 50-pin connector x1, Intercom (prod/eng) 4w: 0dBu, RTS: 0 dBu, CC: -14 dBu, PGM, 2 systems, 0dBu/-20dBu, Tally ( R, G, Y), Flag
• RCP/CNU: 8-pin multi-connnector x1,
• Trunk: 12-pin x1
• LAN-COM: 8-pin x1
• Network Trunk: 8-pin x1
• SDI I/O 1 to 4: 3G/HD/SDI I/O, BNC x4, 3G-SDI SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps, SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270Mbps, 3G-SDI/HD-SDI/SD-SDI, character signal selectable
• Reference In/Out: BNC (x2), loop-through output, HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB

Input Connectors

• AC IN: 100V to 240V AC x1
• SDI RET 1 to 4: BNC (x4), 3G-SDI: SMPTE ST424/425, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 1.485 Gbps/1.4835 Gbps, SD-SDI: SMPTE ST259, 270 Mbps
• Prompter 1 Prompter 2/VBS-RET: BNC (x2), loop-through output during 1CH mode, terminate internally at 75 Ω during 2CH mode, analog signal, 1.0 Vp-p, 75 Ω

Output Connectors

• Audio Out CH1, CH2: XLR 3-pin, male (x2), 0dBu/–20 dBu/+4 dBu
• Character/ABS/EBU: BNC (x1), VBS, 1 Vp-p, 75 Ω, HD SYNC: BTA-S001, tri-level sync, 0.6 Vp-p, 75 Ω, SD SYNC: composite sync, 0.3 Vp-p, 75 Ω, VBS/HD SYNC/SD SYNC selectable
• SDI Out 1 to 4: 3G/HD/SD SDI OUTPUT, BNC (x4), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps, SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbps,3G-SDI/HD-SDI/SD-SDI, character signal selectable

Supplied Accessories

• Supplied Accessories: Number plates (1 set), Before Using this Unit (1), Operating Instructions (CD-ROM) (1)

In the box

• 1x Sony HDCU-3100 Full Rack Wide Single Mode Fibre Camera Control Unit
• 1x Instruction Manual
