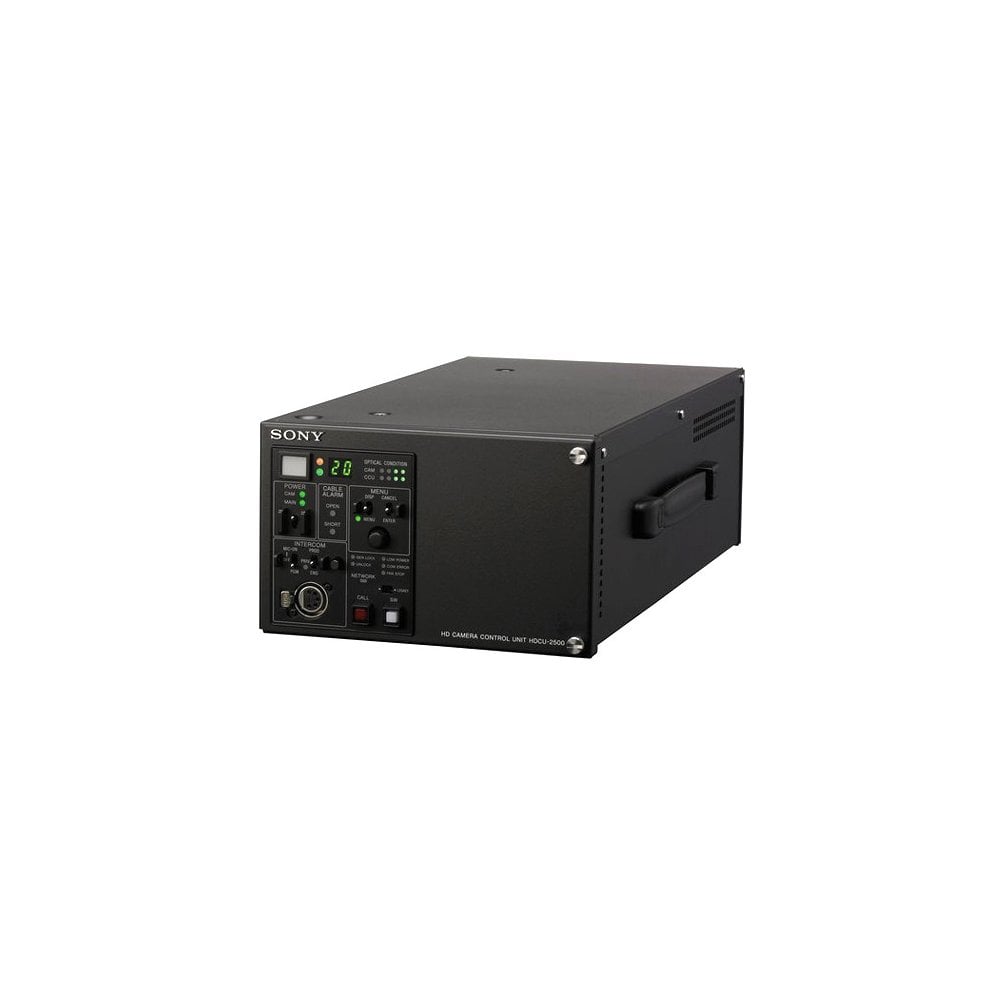

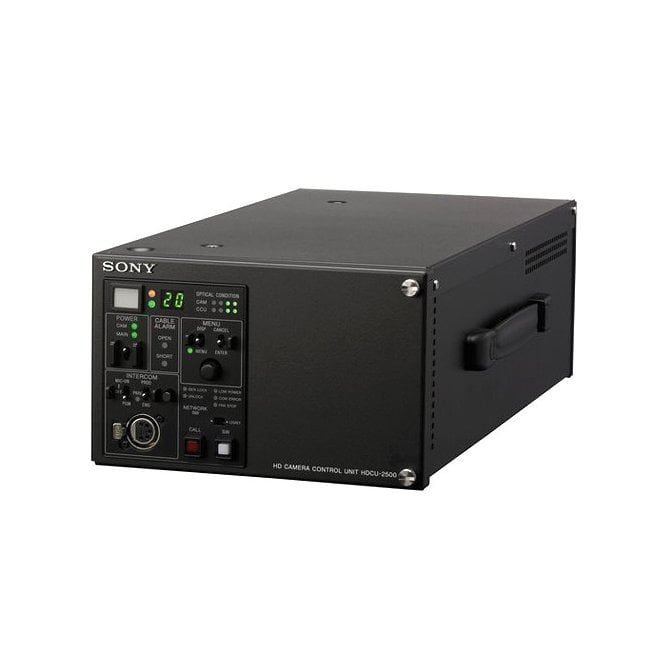

Sony Half-Rack-Size Camera Control Unit

Sony HDCU-2500 (HDCU_2500, HDCU/2500, HDCU2500) Half-Rack-Size Camera Control Unit

HDCU-2500 is a half 19”-rack-size camera control base station for the 3G Double-Speed Multi Format HD system camera HDC-2000 Series and the HDC-1500 Series, enabling more creative capabilities for studio, outside broadcast and sports productions.

Wide range of interfaces and network control

• The HDCU-2500 is equipped with a range of built-in interfaces such as 3G-SDI/HD-SDI/SD-SDI outputs, 3G-SDI/HD-SDI/SD-SDI/analogue composite return inputs, and a down-converted analogue composite monitor output. In addition, a variety of output interfaces are offered via optional boards, which can be installed in one free slot on the HDCU-2500. Furthermore, a built-in LAN interface (10BASE-T/100BASE-TX) allows the camera to be controlled over a network. Menu buttons and indicators that show the status of optical transmission on the front panel provide great operability.

Optic fibre extension includes power to the camera head

• The optical fibre transmission system used with the HDCU-2500 maintains the camera’s high picture quality across cable runs of up to 2,000 metres.*

• Camera: Optical / electrical multi-connector (180 VDC power supply)
• Compatibility: Sony HDC2400/2500 cameras
• Input/Output Connections: Intercom/Tally/PGM: 1 x D-sub 25-pin (female), RCP/CNU: 1 x 8-pin, TRUNK A: 1 x 12-pin, Network TRUNK: 1 x RJ-45 8-pin, LAN (RCP/MSU): 1 x RJ-45 8-pin, SDI/VBS Return Input: 3 x BNC (3G/HD/SD/VBS), Prompter Input: 2 x BNC loop-through output, VBS, 1 VP-p, 75 ohms, Reference Input: 2 x BNC loop-through output, Mic Remote: 1 x D-sub 15-pin, Sync and Character Output: 1 x BNC, 3G/HD-SDI Output: 4 x BNC, HD TRUNK Output: 1 x BNC, HD Prompter Input: 1 x BNC
• Audio Output: 2 x XLR 3-pin (male), 0 dBu / -20 dBu / 4 dBu
• Power Supply: 100 VAC to 240 VAC, 50/60 Hz
• Operating Temperature: 14 to 104°F / -10 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C
• Dimensions (WxHxD): 8.0 x 5.0 x 16.3" / 20.3 x 12.7 x 41.3 cm
• Weight: 14.8 lb / 6.7 kg

In the box

• Sony Half-Rack-Size Camera Control Unit
