Sony HDR Production Converter Unit

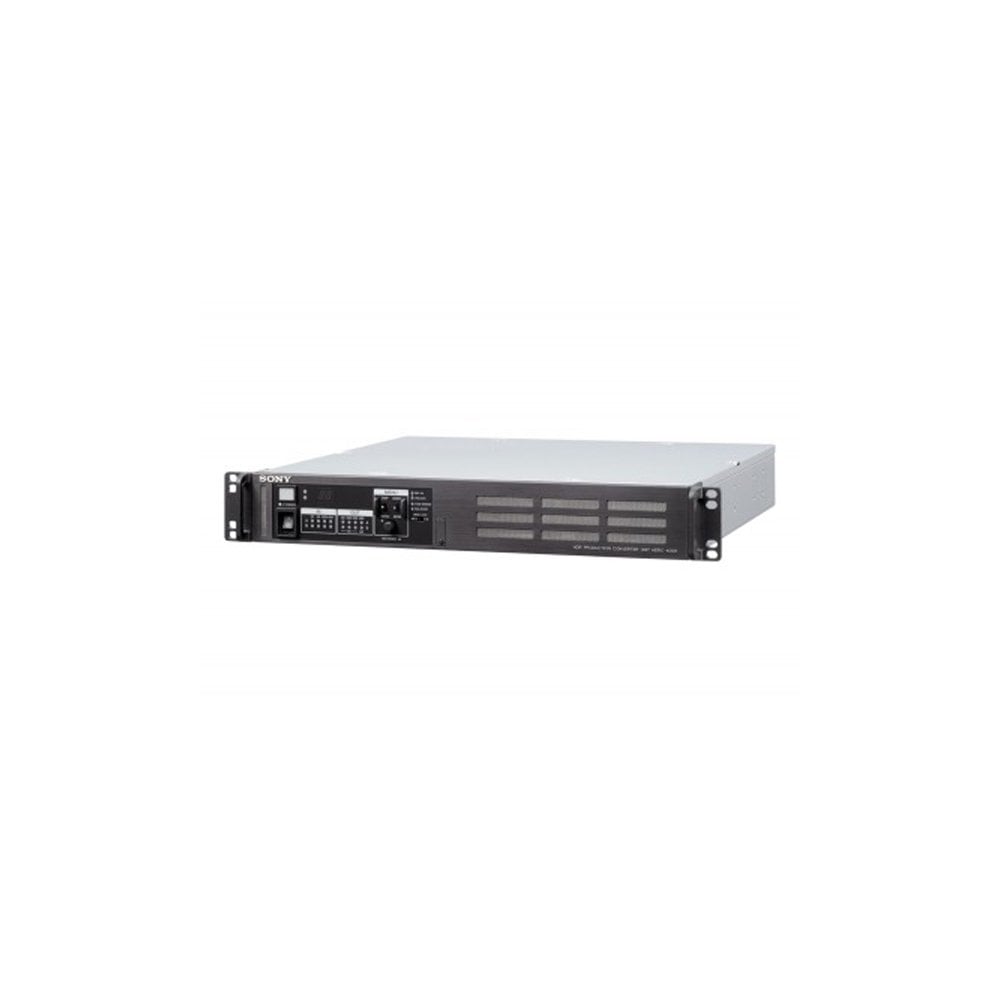

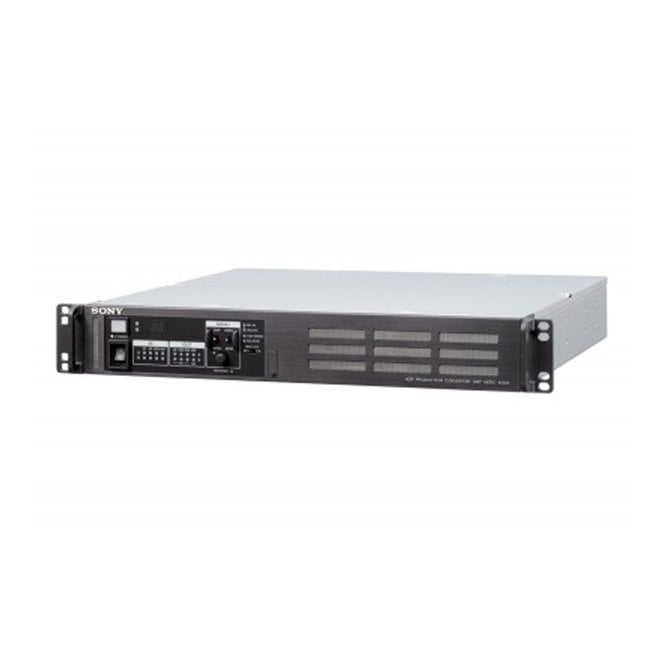

Sony HDRC-4000 (HDRC_4000, HDRC/4000, HDRC 4000) HDR Production Converter Unit

The HDRC-4000 HDR Production Converter Unit converts HDR video signals using the OETF standard. OETF supports several standards, including Sony’s original S-Log3 curve, SMPTE ST 2084 (PQ) and ITU-R BT. 2100 (HLG), and supports mutual conversion between standards.

The unit also features the Air Matching (Artistic Intent Render Matching) function, which allows you to convert to any format, using HDR signal OETF mutual conversion, so that the “look” is correct on a display that supports that particular OETF standard format.

In addition to HDR OETF conversion, it also supports simultaneous mutual conversion between HDR/SDR, 4K/HD, and 2020/709 colour space for conversion of various signal formats.

This unit also supports external reference signals, and can be operated as a video signal frame synchroniser.

General

• Power requirements: 100 V to 240 V AC, 50/60 Hz
• Current consumption: 1.4 A (max.)
• Operating temperature: 5 °C to 40 °C (41 °F to 104 °F)
• Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Mass: Approx. 6.8 kg (15 lb)

Input/output connectors

• I/O PORT: D-Sub 15-pin connector
• REMOTE A, B: 8-pin multi-connector (2)
• LAN: 8-pin (1)

Input connectors

• AC IN: 100 V to 240 V AC (1)
• 4K INPUT-A, 4K INPUT- B (3G/HD SDI INPUT): BNC type (4+4), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
• HD INPUT-A, HD INPUT-B (3G/HD SDI INPUT): BNC type (1+1), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
• REFERENCE IN: BNC type (1), HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 ohms, SD: Black burst (NTSC: 0.286 Vp-p, 75 ohms/ PAL: 0.3 Vp-p, 75 ohms)

Output connectors

• 4K OUT-A, 4K OUT-B (3G/HD SDI OUTPUT): BNC type (8+8), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
• HD OUT-A MAIN, HD OUT-B MAIN (3G/HD SDI OUTPUT): BNC type (1+1), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps, 3G-SDI/HD-SDI selectable
• HD OUT-A MONITOR, HD OUT-B MONITOR (HD SDI OUTPUT): BNC type (1+1), HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps,
• REFERENCE OUT: BNC type (1), HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 ohms
• SD: Composite sync, 0.3 Vp-p, 75 ohms HD SYNC/SD SYNC selectable

In the box

• 1 x Sony HDRC-4000 Converter Unit
• 1 x Number Plates Set
• 1 x Operation Guide
• 1 x Operation Manual (CD-ROM)
