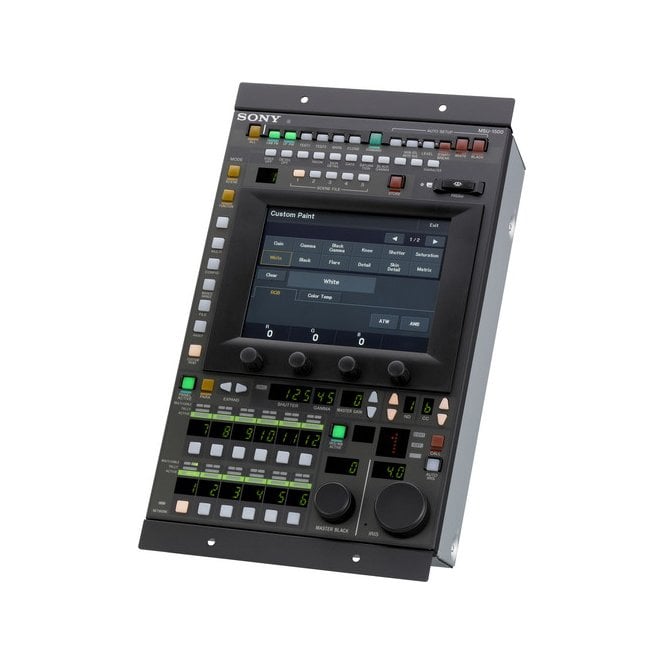

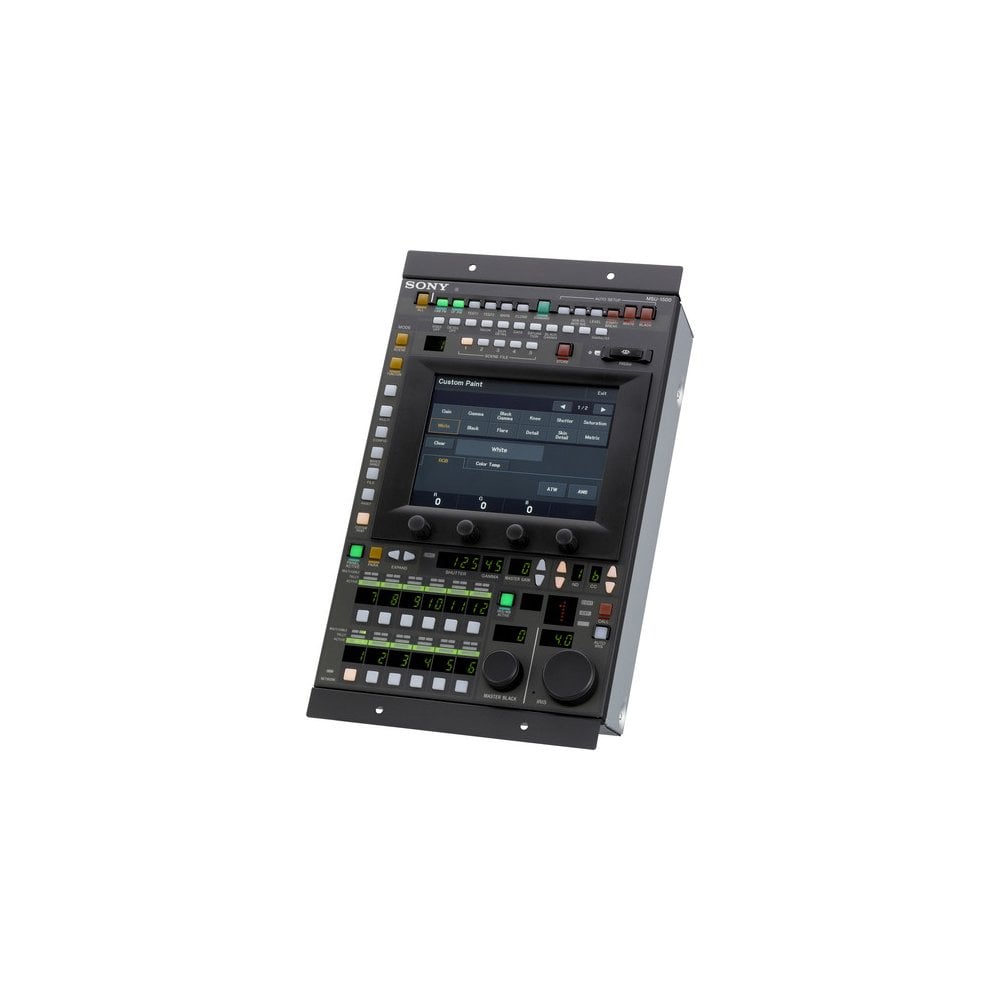

Sony MSU-1500 Master Setup Unit (Vertical Type)

Sony MSU-1500//U (MSU/1500//U, MSU_1500//U, MSU1500//U) MSU-1500 Master Setup Unit (Vertical Type)

The MSU-1500 master setup unit is a control panel for camera configuration and maintenance. It is a compact, vertically-oriented device (as opposed to the MSU-1500, which has a larger, horizontally oriented panel), and can control multiple camera systems, using either the CNU-700 Camera Command Network Unit, or using a LAN, in which case up to 96 cameras can be controlled.

General

• Power supply: AC 100 - 240 V. 50/60 Hz 0.35 A (Max.), DC 10.5 - 17 V 1.2 A (Max.)
• Operating temperature: 5 °C to 40 °C (41 °F to 104 °F)
• Dimensions (W x H x D) (excluding protrusions): 204 × 354 × 67 mm (8 1/8 × 14 × 2 3/4 in.)
• Mass: Approx. 3.6 kg (7 lb. 15 oz.)

Input/output connectors

• Ethernet: RJ-45 8-pin (X1)
• CCU/CNU: Multi-connector 8-pin, female (x1)
• AUX: Multi-connector 8-pin, female (x1)
• EXT I/O: D-sub 50-pin, female (x1)
• AC IN: 3-pin (x1)
• DC IN: 4-pin (x1)

In the box

• MSU-1500 Master Setup Unit (Vertical Type)
