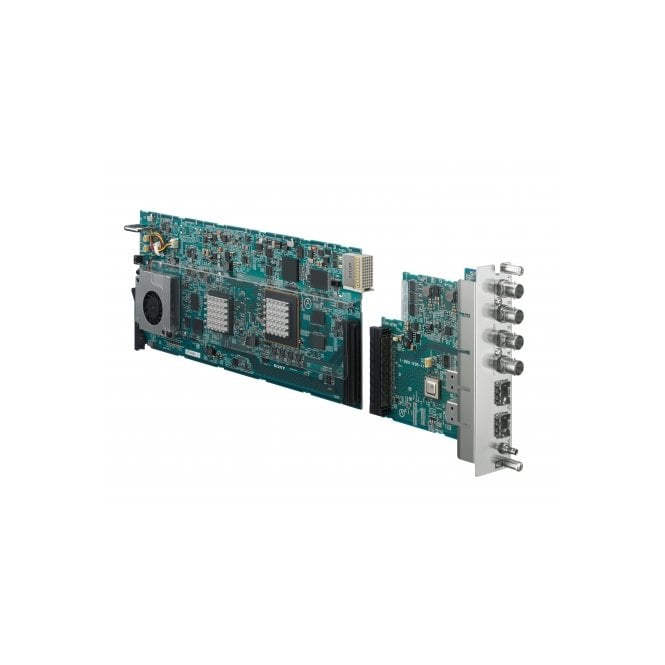

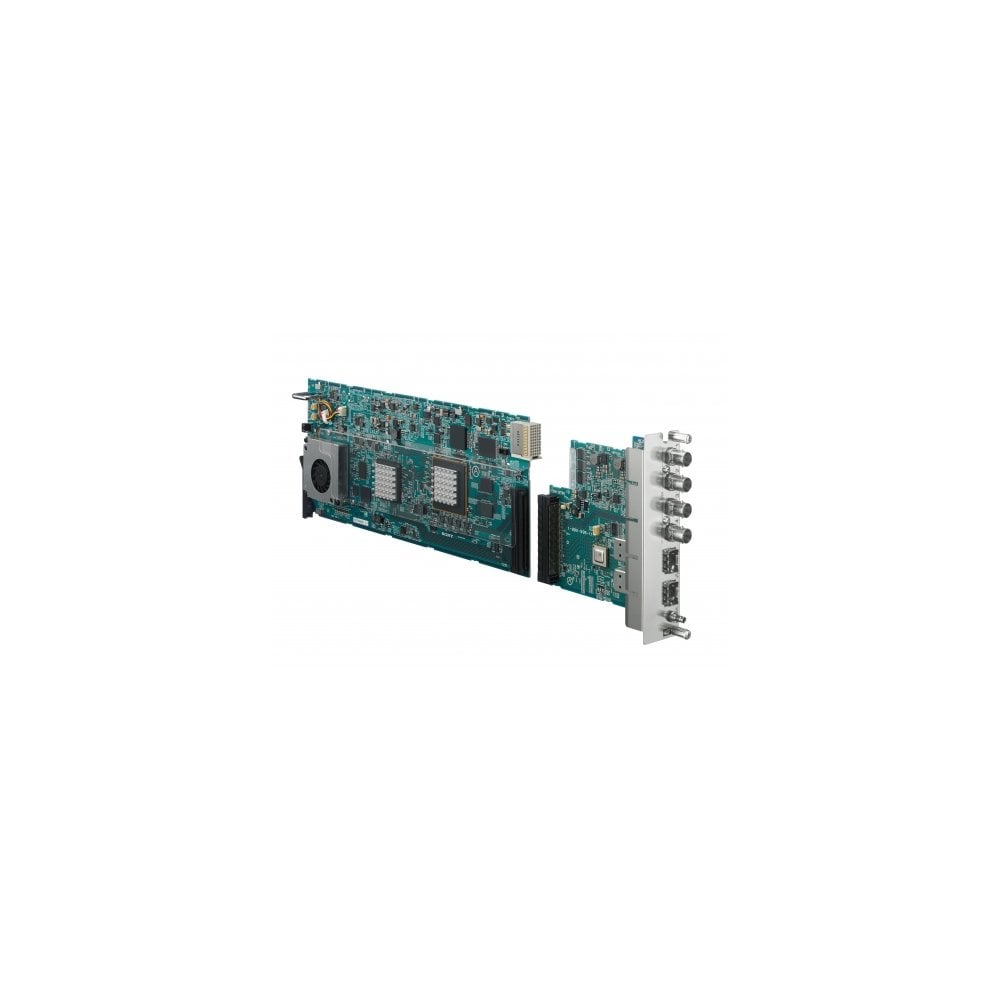

Sony SDI-IP Converter Board with 3G-SDI and SFP+ ports

Sony NXLK-IP40F/1 (NXLK/IP40F/1, NXLK_IP40F/1, NXLK IP40F/1) SDI-IP Converter Board with 3G-SDI and SFP+ ports

The NXLK-IP40F SDI-IP converter board provides 4x 3G-SDI ports and 2x SFP+ ports for redundancy for network connection. The NXLK-IP40F can convert the signal in a very low latency which enables live production over IP transmission where real-time operation is essential.

General

• Power supply: DC 12 V (supplied from NXL-FR318)
• Power consumption: 2.0 A 24 W (2 slot occupancy)
• Dimensions: Main board: 114.5 × 28 × 275.8 mm (4 5/8 × 1 1/8 × 10 7/8 in.)(W × H × D), Connector board: 131 × 35.2 × 117.25 mm (5 1/4 × 1 7/16 × 4 5/8 in.) (W × H × D)
• Mass: Main board: 240 g (8.5 oz.), Connector board: 160 g (5.6 oz.)
• Temperature ranges: Operation guaranteed temperature: 5 °C to 40 °C (41 °F to 104 °F), Performance guaranteed temperature: 10 °C to 35 °C (50 °F to 95 °F), Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)

I/O specifications - SDI

• Connector: BNC type 75 Ω
• Number of lines: 4
• Signal formats: SMPTE ST 424, SMPTE ST 292-1

I/O specifications - REF OUT

• Connector: DIN 1.0/2.3 75 Ω
• Number of lines: 1
• Signal formats: HD tri-level sync signal, black burst signal (NTSC, PAL), SYNC signal (NTSC, PAL)

I/O specifications - NMI LAN

• Connector: SFP+
• Number of lines: 2
• Signal formats: 10GBASE-** (dependent on SFP+ transceiver module)
• For details on supported SFP+ transceiver modules, contact your local Sony service representative

Supplied accessories

• Supplied accessories: Operation manual (1)

In the box

• SDI-IP Converter Board
