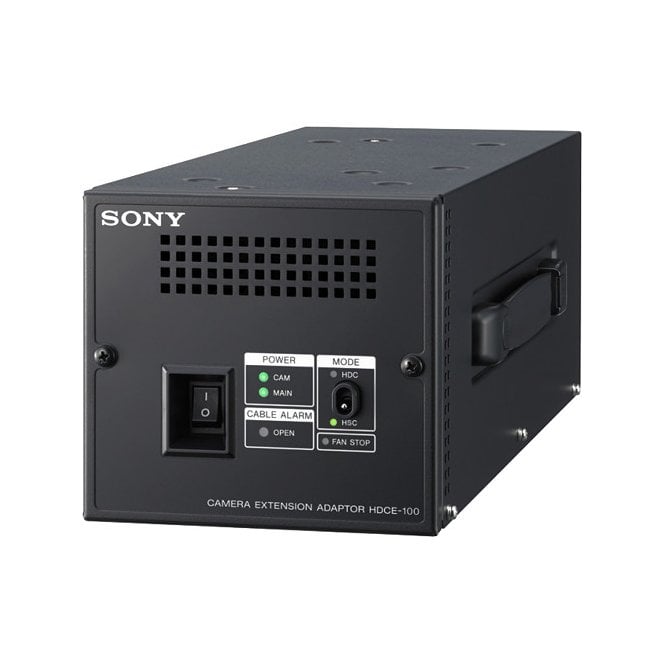

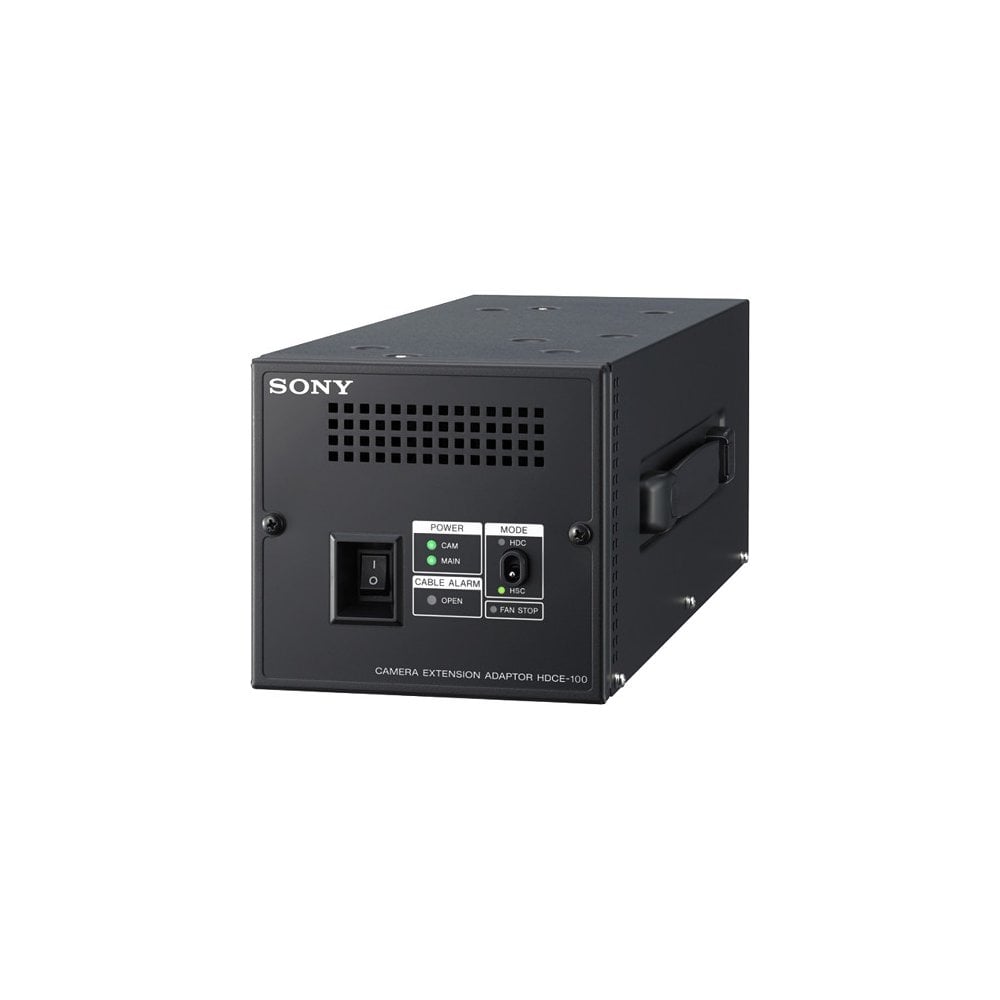

Sony Single Mode Fiber Camera Extension Adapter

Sony HDCE-100 (HDCE100, HDCE/100, hdce-100) Single Mode Fiber Camera Extension Adapter

Many sports facilities including stadiums, golf courses, race tracks and winter sports venues utilize a single mode fiber cables on a temporary or permanent basis for long distance camera cable transmission.

To meet the growing demand, Sony is introducing the HKCUSM100 CCU extension adapter and HDCE100 camera extension adapter.

With these newly released products, Sony offers a total system solution from camera to CCU using single mode fiber cable. With the HKCUSM100 and HDCE100, the maximum distance extends up to 10 km.

HKCUSM100 and HDCE100 will work with 4k (F55/CA4000 and HDC4300), HDC and HSC series camera system. Note: HDCE100 will supply the power to camera head via SMPTE FIBER cable

• Provides long-distance transmission from a camera to a Camera Control Unit (CCU) with single mode fibre and SMPTE fiber cables.
• Supply power to the camera head
• Work with 4K(F55/CA4000+BPU4000) HDC or HSC camera system

• Power Requirements: AC 100 V to 240 V, 50/60 Hz
• Power Consumption: 4.5 A max.
• Operating Temperature: 5 °C to 40 °C (41 °F to 104 °F)
• Mass: Approx. 8 lb 13 oz
• AC IN: AC IN connector for 100 V to 240 V (1)

In the box

• Sony HDCE-100 Single Mode Fiber Camera Extension Adapter
• 4 x B4 x 4 screw (for rack mount)
• 1 x Operation guide
• 1 x Operation manual (CD-ROM)
