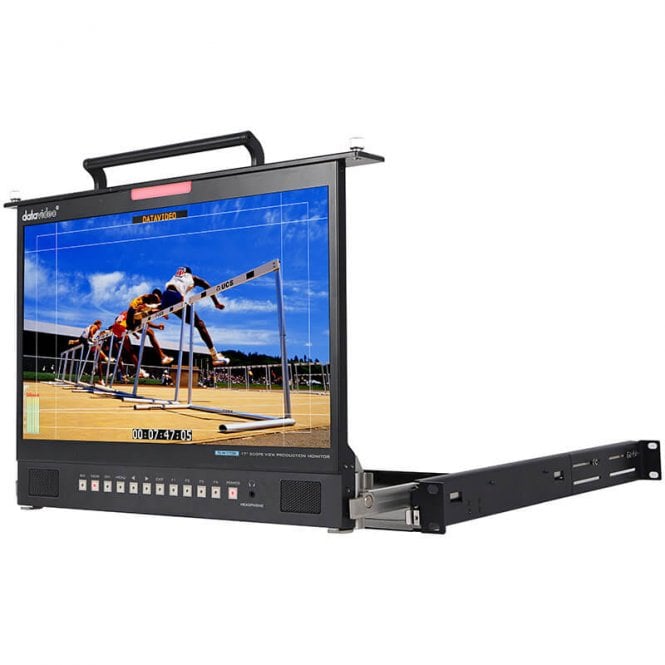

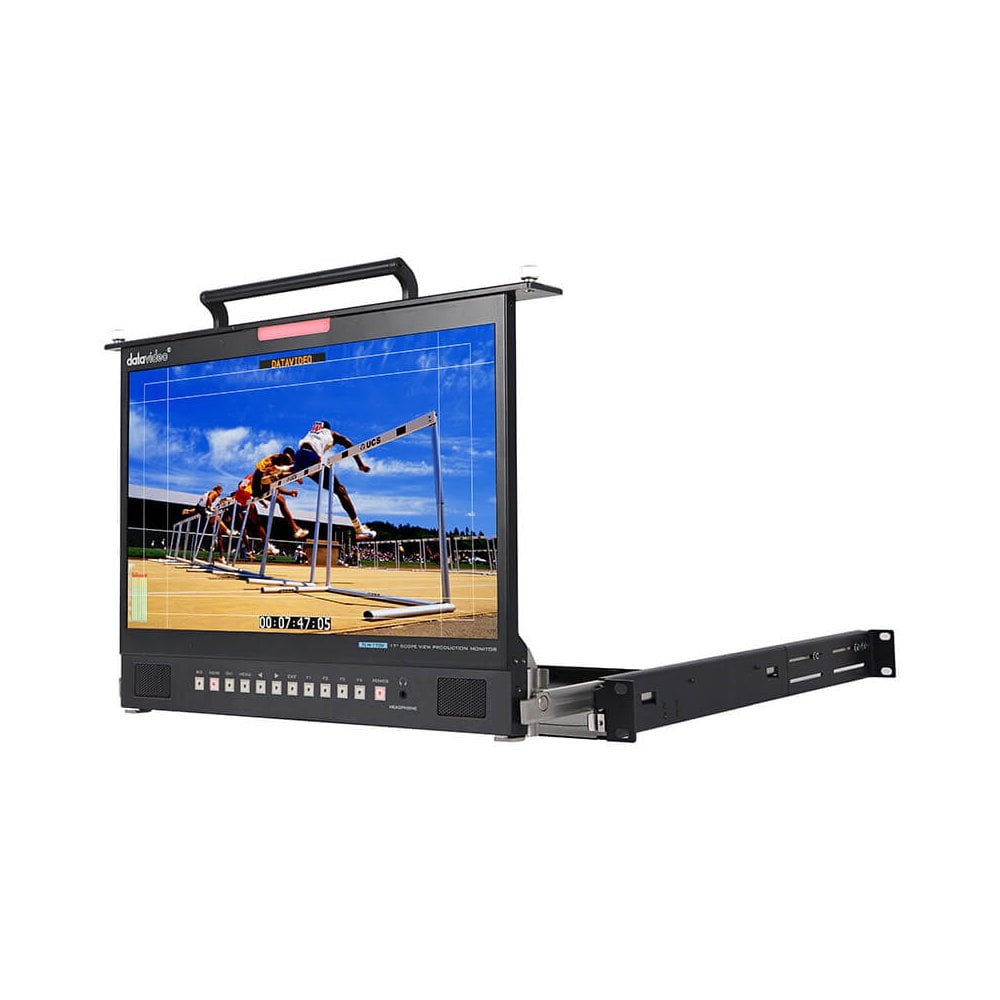

Datavideo DATA-TLM170VM 1U Foldable Rackmount Tray 17" ScopeView Production Monitor

code: DATA-TLM170VM
  • £1,645.00
  • RRP: £1,645.00
Item Available | Usually dispatched within 24 hours
Loading...

Features

  • 17" ScopeView Production Monitor
  • Supports 3G/HD/SD 1920x1080 panel resolution
  • 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
  • SDI, HDMI cross conversion
  • Various built-in functions: Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, tally light

Datavideo DATA-TLM170VM (DATATLM170VM, DATA TLM170VM, DATA/TLM170VM, TLM170VM) 1U Foldable Rackmount Tray 17" ScopeView Production Monitor.

17.3" Full HD LCD panel resolution (1920x1080) with LED Backlight,1RU Pull-out design. Supports 3G/HD/SD-SDI input, HD/SD-YUV, Y/C, CV, 2-CH HDMI inputs, stereo speakers & audio Interface; SDI Time code & audio level indicator, 8xPixel Zoom, Set Safe Area, Selectable Color Temperature, PiP mode, Blue only Display

  • Screen: 17.3" LED Backlit
  • Chassis: 1RU Pull-Out
  • Resolution: 1920x1080
  • Viewing Angle: (H) +89/-89° | (V)+89/-89°
  • Luminance/Contrast: 300cd/m2 | 700:1
  • Video Inputs: 1x 3G/HD/SD-SDI | 2x HDMI
  • Loop Through: 1x 3G/HD/SD-SDI | 1x HDMI
  • Supported Input Resolutions: 1080p(23.98/24/25/29.97/30/50/59.95/60Hz) | 1080i(50/59.94/60Hz) | 720p(50/59.94/60Hz) | 576i(PAL), 480i(NTSC)
  • Aspect Ratio: 16:9, 4:3
  • Tally LED: Live (Red) | Cued (Green)
  • Audio In/Out: 2x Speaker | 1x Headphone Jack
  • Special Features: SDI and HDMI cross conversion | Support column (YRGB peak) | time code | waveform | vector scope & audio level meter | peaking focus assist | zoom | pix to pix | underscan | check field
  • Power: DC 10-18V, 32W

In The Box

  • 1U Foldable Rackmount Tray 17" ScopeView Production Monitor
Be the first to review Datavideo DATA-TLM170VM 1U Foldable Rackmount Tray 17" ScopeView Production Monitor. Write a review ›
