JVC DT-E21L4 21-Inch LCD Monitor

code: DT-E21L4
  • £1,675.49
Item Available | Usually dispatched within 24 hours
Loading...

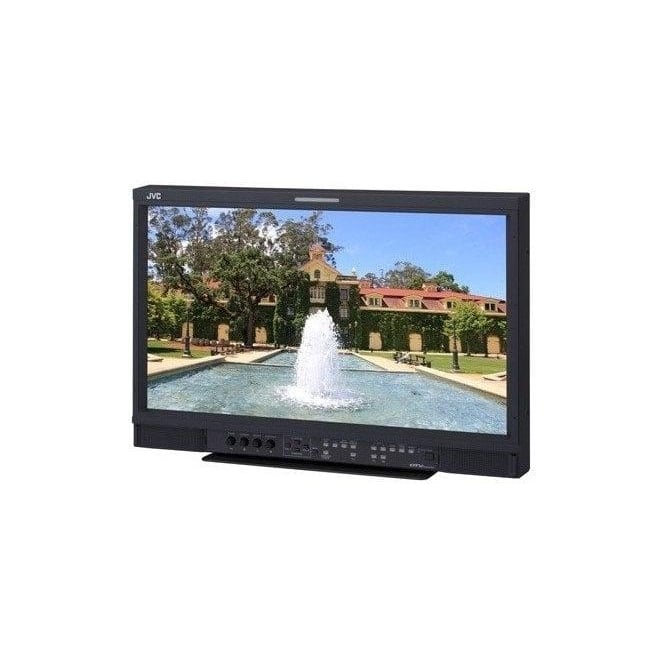

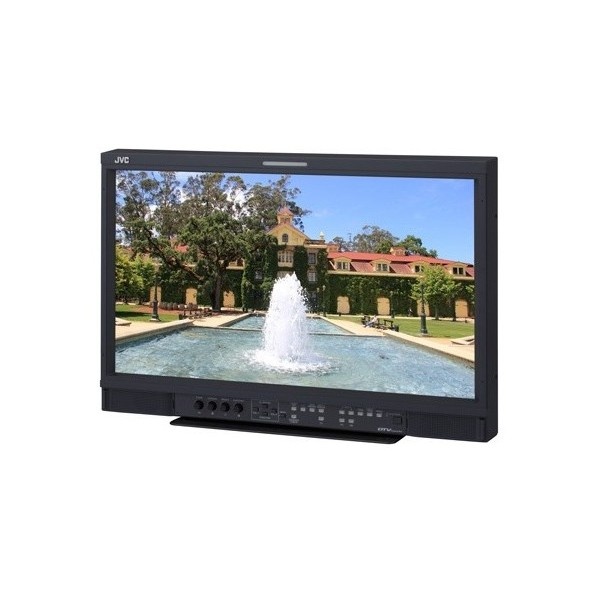

JVC DT-E21L4 21-Inch LCD Monitor

21-Inch LCD Monitor



Full HD 1920 x 1080 TN Panel

Calibration Software

JVC's DT-E21L4 monitro is part of their new DT-E Series of HD monitors providing a cost-effective alternative to the industry standard DT-VG1 high-end monitors.



A newly developed TN panel with LED backlights offers improved contrast and black level. The DT-E Series monitors also come complete with free calibration software to help you achieve optimum picture quality. Power consumption on the 17-Inch DT-E21L4 is 20-30% lower compared to CCFL-driven lighting, which also has the effect of increasing the product lifetime by up to 300%. The imaging is also smoother and more consistent with the LED backlighting.



Key Features -



Full HD 1920 x 1080 TN Panel

TSL protocol compatible and 16CH Audio Level Meter

2 programmable front function keys, where you can select your own function

Tally control comes with a new requested feature of split

information (dual color)

HD SDI in/out (1.5G)

Embedded -Audio Level Meter support of 16ch

HDMI input (Screw type)

CVBS (BNC) in/out

D-sub15 (PC/Component in)

Audio x2 (RCA x1,phono x1) in/ x1out

RS-232C in , RS-485, make trigger

Scale Maker

IMD (TSL protocol)

Key assign function (2 key with illumination)

Integrated speakers

Calibration Software

Optional: rack mounting

Integrated speakers

Generic Spec: DT-E21L4



General Specification -Display Device - Display Type: 21.5 " LCD Display



Apsect Ratio: 16:9Pixel number: 1920 (H) x 1080(V)



Panel surface: Non-Glare



Viewing Angle: H:170deg V:1 60deg



Contrast Ratio: 1,000:1



Display colour: 16.7M colours



Backlight: LED



VESA standard: 100mm x 100mm (M4 x4)



Dimension - Width: 515 mm



Height: 352.1 mm



Depth: 181 mm



Weight: 7.7kg/6.2kg (without stand)



Power Requirement - AC: 120, 22 0-24 0V 50/60Hz



DC: 1 2~17V



External In / Out - Video IN/OUT: Composite Vide o IN: BNC x 1Composite Video OUT: BNC x1 Loop through



Component Analog RGB In: Min i D-Sub 15 pin x 1



HDMI In: HDMI Connector x 1



HD/ SD-SDI: IN: BNC x2OUT: BNC x1 (Switched / rec locked out)



Audio: IN: RC A x 2 (L/R) 3.5mm Stereo mini jack x 1OUT: RCA x 2 (L/R) Monitor Out



Remote: MAKE/TRIGGER: RJ-45 (8 -pin) x 1RS-485 IN : RJ-4 5 (8 -Pin) x 1RS-485 OUT : RJ-45 (8-Pin) x 1RS-232C: D- sub (9-pin) x 1



Audio -Speaker Output Power: 1W x 2
