JVC DT-G17E 17in Studio Monitor

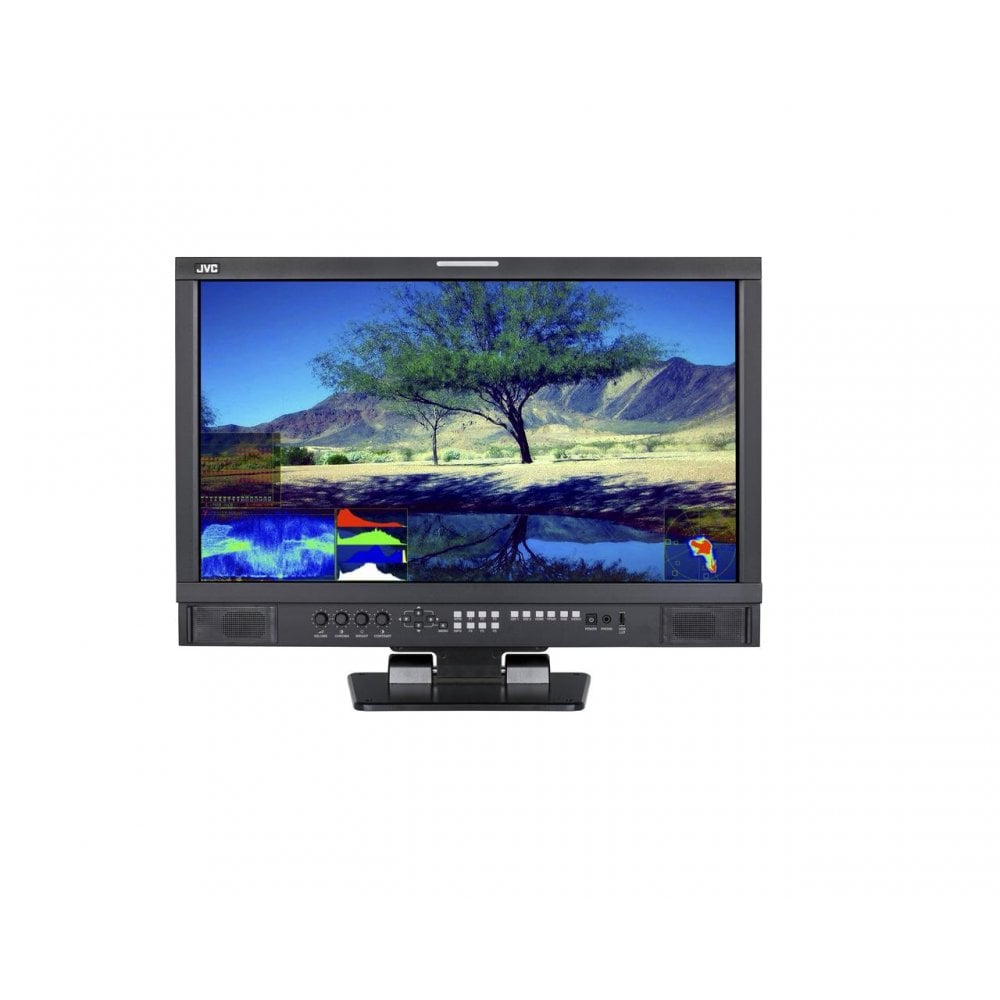

JVC DT-G17E 17in Studio Monitor(DT-G17E)

DT-G series monitors support up to 4K60p HDMI, downsample to FHD display, and support 3G-SDI (SMPTE 425M) including Level A&B; 2K-SDI (2048x1080p) can also down sample to FHD display. Full-Front USB Colourmetrie Sensor support, with build in Auto-Calibration support.

Panel size (diagonal in inch) 17.3

Panel resolution 1920 X 1080 Pixels

Panel Aspect Ratio 16 to 9

Panel surface glare / non glare non glare

Panel Type LCD Yes

Panel Modulation IPS Yes

Back-light LED Yes

Brightness in cd/m² 300

Panel Bit depth 8

Image Processing Bit depth 10

Viewing angle H/V H 160 / V 160

Contrast Ratio 700:1

IN-OUT´s Connections VIDEO

Number of HDSDI Inputs 2

Input HDMI Yes, HDMI 2.0

Number of HDMI Inputs 1

Input RGB/VGA Yes, Sub-D 15 PIN

Input YUV Yes, 3 x BNC

Input Composite Yes, BNC

Numbers of Composite Inputs 1

Loop out HDSDI Yes, 3G 2 x 2 (for each unit 2 outs)

Loop out HDMI Yes, HDMI 2.0

Loop out Composite Yes

IN-OUT connections AUDIO

Audio Line IN Yes, 2 times RCA

Headphone out Yes, 3.5 mm mini jack

Speaker integrated Yes, 2

IN-OUT Connections Controls

GPI IN Yes, RJ45

RS485/422 IN Yes, RJ45

RS485/422 Loop out Yes

IP Ethernet Port Yes, RJ45

USB Port Yes, 2 x (1x for Firmware / 1 x Front for Colour Probe)

Supported Signal Formats

Note for SMPTE/ITU Definitions SMPTE or ITU definitions have servile specification in-between, like SMPTE 274 for Interlace Frames rates for example, this is not reflecting here! Please ask for details Signal Spec´s and Frame-rate supports

HDSDI/SD Signal Formats 2K Yes, SMPTE 2048-2 2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60) 2048×1080i (50 / 59.94 / 60)

HDSDI/SD Signal Formats SMPTE-274M Yes, 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 23.98)

HDSDI/SD Signal Formats SMPTE-RP211 Yes, 1080psf (30 / 29.97 / 25 / 24 / 23.98)

HDSDI/SD Signal Formats SMPTE-296M Yes, 720p 60/59.94/50

HDSDI/SD Signal Formats ITU-R BT656 Yes, 576i 50

HDSDI/SD Signal Formats SMPTE-125M Yes, 480i 59.94

HDMI Format PAL/NTSC 480i/576i/480p/576p

HDMI Format 1080 interlaced 1080i 60/59.94/50

HDMI Format 720p 720p 60/59.94/50

HDMI Format 1080P plus 1080p 60/59.94/50/30/29.97/25/24/23.98

Composite Yes, PAL/NTSC

Other Formats HDMI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

Dedicate Functions

SDI Timecode Yes, LTC, VITC1&2

R/G/B/Mono Yes

False colour Yes

Peaking focus assist Yes

H/V delay Yes

Field/Frame mode Yes, Field 1 / Field 2

Scan Modes 4:3/16:9

Freeze frame Yes

Safety area markers Yes, 80%, 85%, 90%, 93%, 95%

Scale Markers Yes, 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

Tally via GPI Yes, include IMD/UMD and Top LED

Tally via TSL Protocol Yes

Tally Multi-Colour Yes, 3 colors

Low Latency Mode Yes, YES its special processing, only a view lines delay, so called zero latency, please no image adjustment during this mode.

Screen saver Yes

Environment Power Save function Yes

User presets Yes, 3 Memories

3D-LUT Yes

3D-LUT LOG Support for J-log1, Log-C, S-log2, S-log3, C-log,RedLogFilm LUTs for selection, to convert to Rec.709. and support 1x User LUT import 17x17 cube files

TSL UMD/IMD Support via Yes, Serial RJ45 RS485

TSL Special Indications Selectable sizes and Background colors

Function Keys 6

Direct Input Channel buttons Yes

Auto Aspect Yes, Analogue and Digital sources

Picture Flip modes Yes

OPERATION KEY-LOCK Yes

Operation LED Dimmer (Buttons) Yes

Direct Brightness/Contrast/Colour control Yes

Dedicate Features

Auto source search Yes

Measurement and indication Tools

Waveform Yes

Waveform enlargement Yes

Waveform Line selector Yes

Waveform subs R/G/B, Y/PB/PR, and Y/CB/CR. peak brightness with Over-level function.

Vector-scope Yes

Vector-scope enlargement Yes

Vector-scope subs video,component, SDI (SD/HD) input signals.

Histogram Yes

Histogram subs RGB/Y 100%-107% Over-exposure alert

Audio Level Meter Yes

Audio Level Meter Channels 16

Audio Level Meter subs Audio abnormal alert info display Display only 2-ch, 8-ch, or full 16-ch Chart position / Translucent adjust

Calibration and Colour settings

Preset Colour Temperature 6500K Yes

Preset Colour Temperature 5600K Yes

Preset Colour Temperature 3200K Yes

Preset Colour Temperature others please note every of the above presetting can be change for User applications

Preset Colour Temperature USER Yes

Manual calibration of Colour Temperature (gain or/and cut-off) Yes

Internal Auto-Calibration Yes

External Colormetrie Sensor needed Yes, Xwrite I1Display EODI$3-DCOE / Specbos (Jeti)

Gamma Levels 1.8, 2.2, 2.4 , 2.6

Adjustable Back-Light Yes

Dedicate Timing Information

Lip-sync. Processing time less 1 Frame

Power and Enviroment Spec´s

Power AC Yes, Build in 110 V to 240 Volts

Power DC Yes, 11V to 17V

DC Connector Type 4 PIN XLR

Battery Type V-Mount

Power consumption 34,1 W

Operation Temperature in Celsius 0C to 40C

Operation Humidity:(Non-Condensing) 10% to 90%

Storage Temperature in Celsius -15C to 60C

Storage Humidity (Non-Condensing) 10% to 90%

Mechanical Informations

VESA Mount Yes

VESA Format 100x100

Rack-mount into 19" Format Yes

Dimensions W x H x D in mm W:419.2mm / H:310.4mm / D:55.8mm

Weight (without stand) in Kg 3.95Kg

Include Package

AC Power cord Yes

Battery Plate Yes, Fix Mounted V Mount

Others Metal Display Stand and Rack mount ears

In the Box

1x 17inch Full HD LCD 3G HD-SDI Studio Monitor

1x AC Power cord

1x Battery Plate Fix Mounted V Mount

1x Metal Display Stand

1x Rack mount ears
