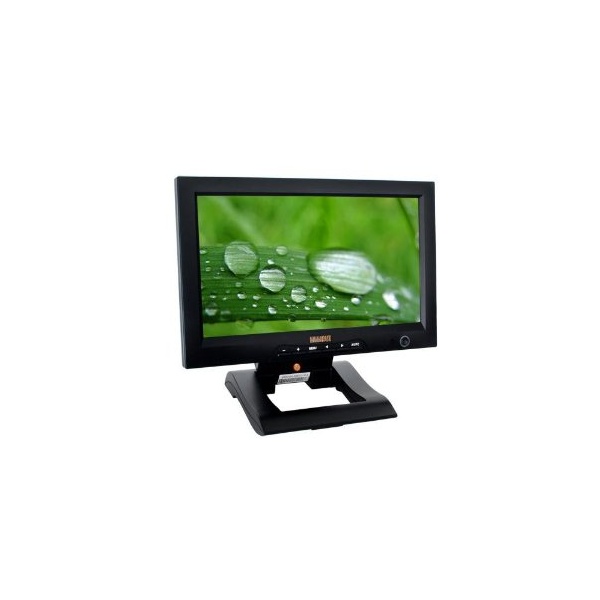

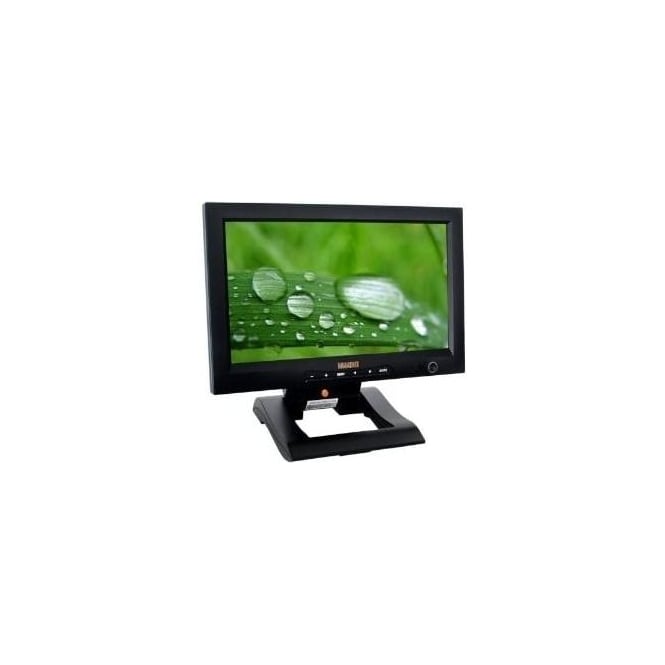

Lilliput FA1013-NP/H/Y/S 10 inch monitor with HDMI

Liliput FA1013-NP/H/Y/S (FA1013NPHYS, FA1013 NP H Y S, FA1013-NP-H-Y-S, fa1013-np/h/y/s) 10 inch monitor with HDMI

 10 inch monitor with HDMI, component and composite video

Introducing FA1013, Lilliput's 10" monitor designed for professional video applications. Featuring HD-SDI, HDMI, component and composite video inputs and an XLR power input, FA1013-NP/H/Y/S is a workhorse for the pro AV industry.

Fantastic colour definition, LED backlight, high resolution, ¼ inch BSW thread... all at the most competitive price on the market for a 10 inch field monitor. These features make the FA1013-NP/H/Y/S optimised for television broadcasters and video creation specialists.

 10 inch monitor with wide screen aspect ratio

• The FA1013's 10.1" LCD panel is great for users who need a field monitor that is lightweight and easy to carry around. The wide screen aspect ratio lends itself well to all kinds of professional applications.

 Fantastic colour definition

• The FA1013 boasts one of the richest, clearest and sharpest pictures of any Lilliput monitor, thanks to a high contrast ratio and LED backlight. The matte display presents accurate colours and leaves no reflection on the screen. What's more, LED technology brings great benefits; low power consumption, instant-on back light, and consistent brightness over years and years of use.

 Natively high resolution LCD

• Natively 1024×600 pixels, the FA1013 can support video inputs up to 1920×1080 through HDMI. It supports 1080p and 1080i content, making it compatible with most HDMI and HD sources.

Complete range of AV inputs

• Due to HDMI, component and composite video inputs on the FA1013, it can be found in all kinds of pro video applications. You can find the FA1013 in TV broadcast rooms, security monitoring rooms, audio visual installations, and camera crews.

  Three different mounting options

• Like the FA1011, the FA1013 can also features a desktop stand and VESA 75 mount. However, the FA1013 also has the option of being mounted by ¼ inch BSW thread. This makes the FA1013 perfect for mounting on cameras and tripods. Please ask us about our articulating swing arms compatible with the FA1013.

• Screen size (diagonal) :    10.1"
• Aspect ratio :    16:9
• Resolution (pixels) :    1024×600 (native), 1920×1080 (maximum)
• Pixel pitch (mm) :    0.21525×0.21525
• Scan frequency (Hz) :    60-72
• Response time (ms) :    20
• Viewing angle (degrees) :    140º x, 110º y
• Brightness (cd/m²) :    250
• Contrast ratio :    500:1
• LCD backlight :    LED
• Screen rotation :    Flip x, flip y
• Video inputs :    HDMI, component, composite
• Audio outputs :    <1.2W Speaker, 3.5mm Headphone Output
• Touch screen inputs :    None
• Input power source :    DC 12V
• Operating temperature :    -20 to 60 deg C
• Mount type :    VESA 75, ¼ inch BSW thread, desktop stand
• Width (mm) :    259
• Depth (mm) :    36.5
• Height (mm) :    170
• Weight (g) :    1144
