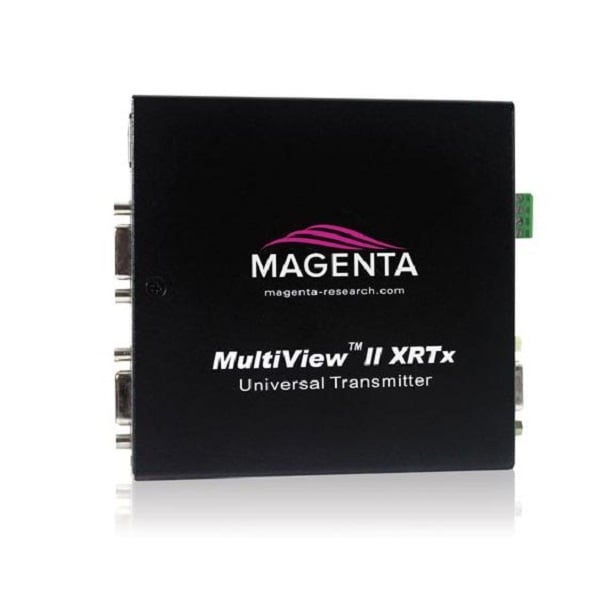

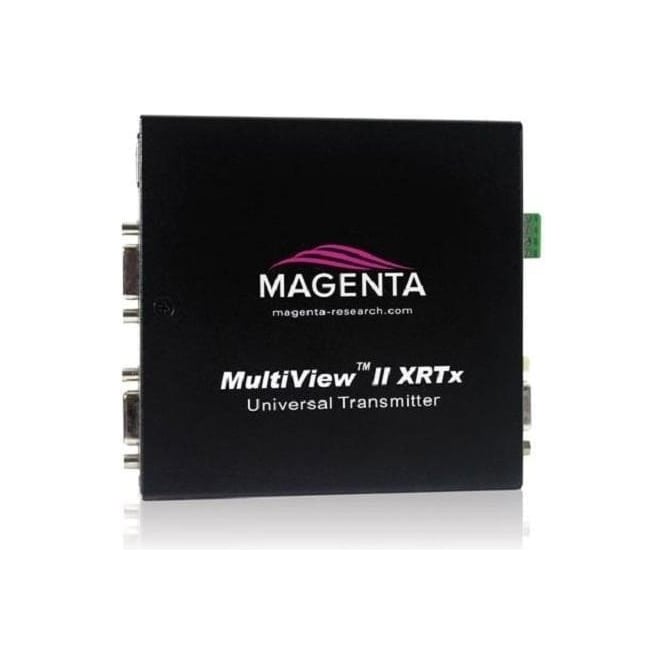

Magenta MAG-2620002-03 MultiView II XRTx-A

Magenta MAG-2620002-03 (MAG2620002-03, MAG/2620002-03, mag-2620002-03) MultiView II XRTx-A

Universal Video and Audio UTP Transmitter

A key building block in the MultiView video over UTP range, the improved MultiView II XRTx transmitter is available in every configuration (-A, -S, -232, -SA and –SAP) and can be paired with any component in the MultiView system, including all receivers, distribution amplifiers and matrix switchers.

When used with the appropriate receivers, the XRTx delivers the world’s longest UTP extension capability at the highest resolution—1920x1200 at 2000ft/609m.

New functionality includes improved sync technology—making 1080p (and higher) video replication easier to replicate than ever before)—and a more-user friendly configuration interface, as virtually any necessary adjustments to an XRTx can now be done externally.

Features:

• RGBHV and non-RGBHV (Non-RGBHV includes S-video, composite and component and requires an optional Multimedia breakout cable) video support
• Available in all MultiView-‘X’ functionality versions
• Compatible with all MultiView transmitters, receivers, distribution amplifiers and matrix switchers
• All external configuration scheme
• Improved sync technology
• Supports 1920x1200 resolution from 1 to 2000ft/609m (Maximum distance capability is determined by receivers distance specification)
• Local out / Cascade support (Local VGA output can used for local monitoring or for cascading to any other transmitter type)
• DDC / EDID support
• Optional mount kits and mini-dense power supplies for rack-mount / rigid installations
