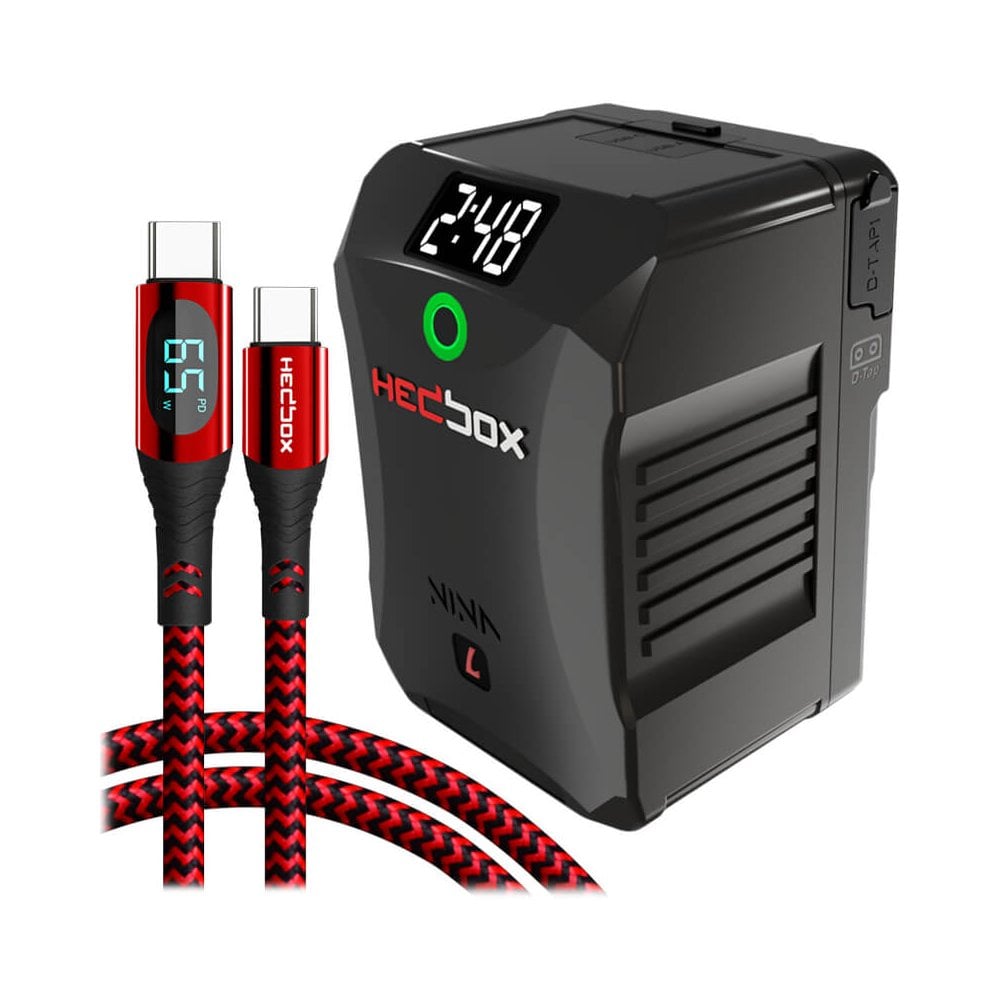

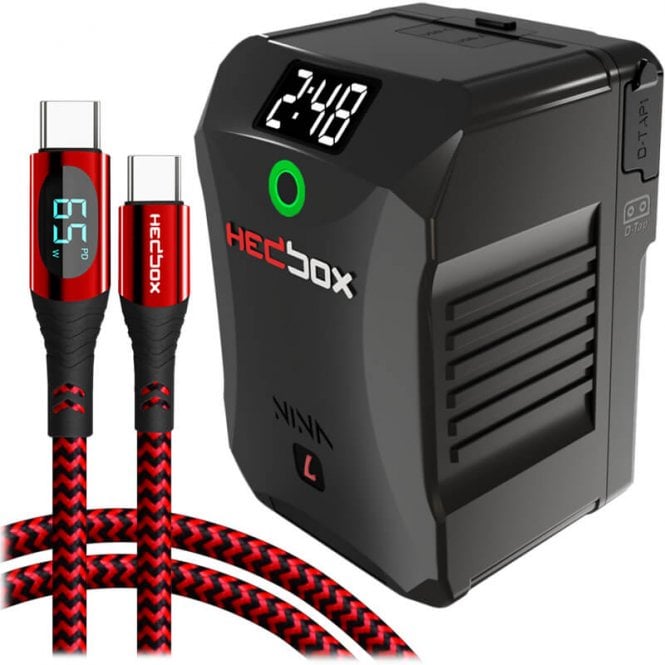

HedBox NINA L Mini V-Mount Battery

HedBox HEDNINAL (HED-NINAL, HED/NINAL, HED_NINAL, HED NINAL) NINA L Mini V-Mount Battery

The NINA series of Hedbox stands for High Performance and High Safety Design mini Battery Pack. The new and revolutionary IDR System provides full control and display of the battery status. On the high-contrast OLED Display, the Battery Capacity, Remaining Time, Circle usage, and Charging function are visible during the day and night.

Through its additional 2xD-Tap DC output the NINA can deliver power to all additional accessory devices. An extra USB-A and USB-C power input allows the charging of the battery with regular USB chargers. Also the same can be used as Power output for mobile phones, tablets, or other accessories using one single battery.

USB Charging Display

Upon pressing the IDR button ( Indication Display Ring)

The OLED Display shows the charging process of the battery

The charging readout is shown as an indication and a percentage

V–Mount Connection Holder

NINA L has a standard V-Mount connection. The V-Wedge is made from a special structure of high-quality dur-aluminum. This material enables safe, rugged, and reliable mounting of the battery on all products on which the battery will be used

Battery Charging OLED Display

During the Battery Charging process, via the USB Charger/cable, the battery OLED Display shows the real-time charging process. The readout is visibly shown in the charging indication progress and the current state of battery capacity status. The battery Capacity status is counted per one percent (1%)

Two D-Tap, Power Out - USB-A and USB-C

Through its additional integration on both sides D-Tap DC Power output. The NINA L battery can deliver two times 16.8V, 135W/ 8A of power. An extra USB-A power provides 5V/3A , 9V/2A , 12V/2A and another USB-C can sustain 5V/3A、9V/3A、12V/3A、15V/3A、20V/3.25A (65W)

Both USB outputs support PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A. This allows the charging of mobile phones, tablets, or other accessories using one single battery

Low Capacity Emergency ALARM

When the battery capacity drops below 20%. The battery IDR emergency ALARM lights up. The strong and visible fleshing IDR ring, (silent mode no buzzer), warns the user that the battery has fallen below 20% capacity. This unique function gives the camera operator enough time to finish the recording and replace the battery in time

USB-C LED Cable Included

The cable has an LED display that in real-time shows charging power, and charging status. Built-in smart chips monitor the charging power and adjust current and voltage automatically, avoiding damage to the battery in case of an unstable current. (Please note display module just shows charging power, it neither increases nor decreases charging current)

• Mount Type: V – Mount  ( V-lock holder )
• Power Meter: OLED Display ( Display’s Percentage and Time of Batt Capacity, Circle count, and Charging status )
• Display Size: 28mm | 1.1 Inch
• Output Voltage: 14.8V
• Bat. Cell Chemistry: Lithium-Ion
• Max Output Voltage: 16.8V DC
• BMS Capacity Control: LCA Low Capacity Alarm  ( BMS Auto Capacity Control ) – Patent Application Pending
• Battery Capacity: 10050 mAh / 10,05Ah / 148.8 Wh – On AIR Transport Certification
• Maximum Load: Up to 14A / 200W
• USB-A Output: 5V/3A, 9V/2A, 12V/2A | QC2.0 / QC3.0 / AFC / FCP /SCP / DCP-1.5A / APPLE-2.4A
• USB-C Input/Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W) | PD3.0 / QC2.0 / QC3.0 / PPS / AFC / FCP / SCP /DCP-1.5A / APPLE-2.4A
• D-Tap I Input/Output: 16.8V / 8A / 135W ( Max )
• D-Tap II Input/Output: 16.8V / 8A / 135W ( Max )
• Battery Control: IDR Identificational Display Ring
• Battery Charge: 16.8V / 8.0A / 135W ( Max )
• Dimensions (WxHxD): 105 x 75 x 68 mm | 4.13 x 2.95 x 2.67 Inch
• Operating Temperature: –20°C to +45°C | –4°F to +113°F
• Weight: 840 g, 1.85 lb

In The Box

• 1x NINA L Battery Pack
• 1x User Manual (ENGLISH)
• 1x 1 Year Limited Manufacture's Warranty
