TILTA GSS-T01-V Float Handheld Gimbal Support System

TILTA GSS-T01-V (GSS/T01-V, GSS/T01/V, GSST01V, GSS T01 V) Float Handheld Gimbal Support System

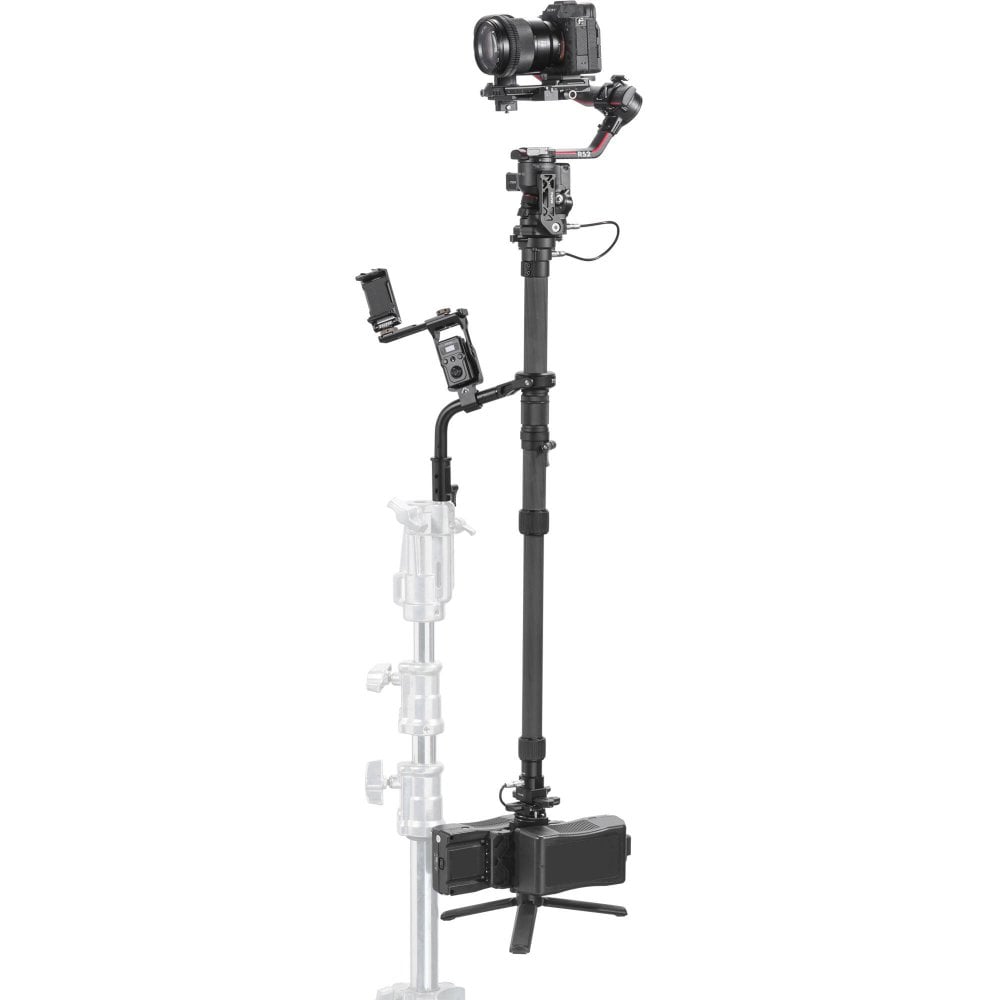

The Tilta Float System works in conjunction with the DJI RS 2 and RS3 Pro to provide a small, compact camera stabilizer system to allow you to accomplish smooth cinematic camera movements with smaller camera setups.

The counterweight-based post provides further stabilization for your setup beyond what the gimbal is already doing to allow for the smoothest possible free flowing camera movement imaginable. The spring-loaded arm and support vest design puts the weight of the rig onto your torso, allowing for longer operating times before the user gets fatigued.

The included Wireless Thumb Controller allows you to wirelessly control the Ronin as well as a Nucleus M or Nucleus Nano follow focus motor. This unit is designed to be mounted to the yoke of your Tilta Float via the system’s Monitor Bracket.

The Controller powers via Go Pro 5-8 Batteries and features a USB-C port that can be used for future firmware updates. Please note we do not recommend powering the unit via this port.

The included Lower Back Support and Single Shoulder Strap provides additional weight distribution ensuring comfortable operation over any duration.

Multiple power options provide more flexibly when powering the Ronin. The system can power the gimbal via Gold Mount, V-Mount, TB50, or the Battery Handle itself via optional accessories.

*The Float is compatible with any gimbal under the weight limit that can mount via 1/4″-20 threads and can power via 2 Pin Lemo or an internal battery, however, it can only wirelessly control the RS2 and RS3 Pro*

**The Float does not have power outputs other than the 2 Pin Lemo designed for powering the RS2**

***The Internal Post Cable can handle 14.8V and 3A with maximum ability to handle 6A***

Product dimensions: 835x345x210mm

• Product weight: 10kg (Net Weight 7.5kg)
• Materials: Carbon fibre, aluminium, plastic, and nylon fabric

Tilta Float System Support Vest

• Vest Size: 600-1200mm
• Extension: Built-in Tilta standard 15mm quick release baseplate

Tilta Float System Arm

• Connector post diameter: 12mm
• Maximum payload capacity: 10kg
• Up and down movement range: 800mm (±4300)

Tilta Float System Post

• Material: Carbon fibre and aluminium
• Mount: NATO rail
• Power input/output: 2-pin LEMO
• Length range: 500-1000mm

Tilta Wireless Thumb Controller for RS2

• Mount: Cold shoe mount, 2.4 GHz wireless module
• Remote control range: 50-70m (Dependent on the location, might be slight variance.)

Power Supply Solutions

• Power Options: V-mount battery, Gold mount battery, DJI TB50 battery, RS2 battery grip

In The Box

• 1x Tilta Flow System Arm
• 1x Tilta Flow System Post
• 1x Power Supply Base Plate for RS 2 (TGA-PBP) with Cable
• 1x Tilta Float System V Mount Battery Plate
• 1x 2-Pin Lemo to 2-Pin Lemo Cable (20 cm)
• 1x Tilta Float System Support Vest
• 1x Wireless Thumb Controller for RS 2
• 1x Wireless Control Receiver Module for RS 2
• 1x Tilta Float System Monitor Bracket
• 1x Tilta Float System Carrying Case
• 1x Tiltaing Adjustable Cold Shoe Phone Mounting Bracket
• 1x Tool Kit for Tilta Float System
