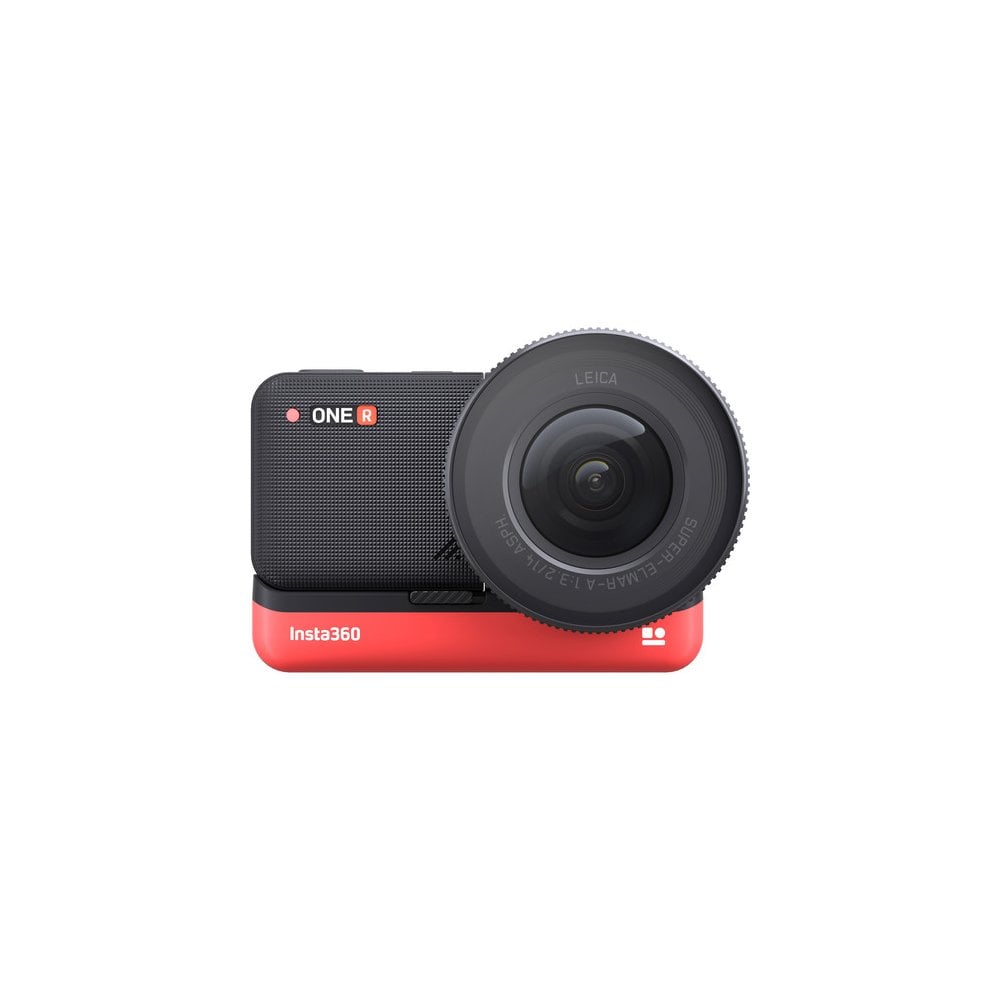

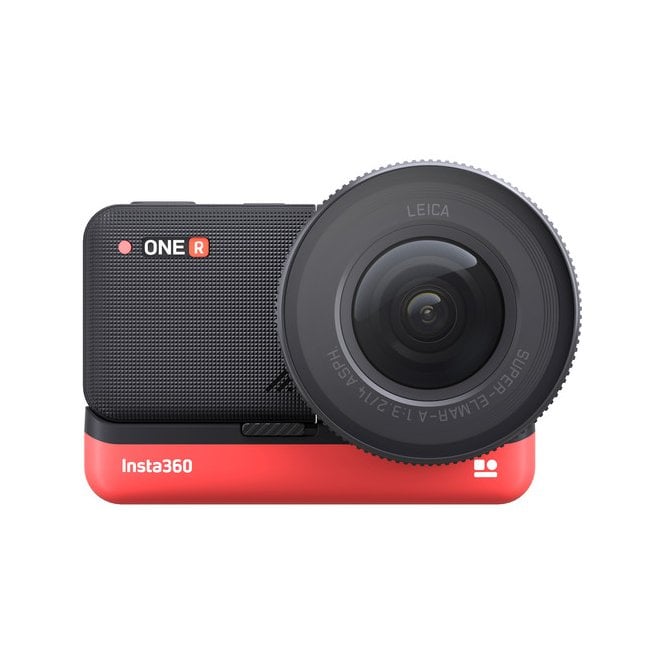

Insta360 999-8B3-E2A ONE R 1-Inch Edition Action Camera

Insta360 999-8B3-E2A (999/8B3/E2A, 999_8B3_E2A, 9998B3E2A, 999-8b3-e2a, CINAKGP/B, 85258091) ONE R 1-Inch Edition Action Camera

The Insta360 ONE R 1" Edition is one of the key configurations of the modular ONE R action camera system. It includes the Core module, 1" Mod, Battery Base, and Mounting Bracket, also known as a frame. The 1" Mod features a large 1" sensor and captures up to 5.3K resolution video at 30 fps. It also captures 19MP and Raw photos. The Core module functions as the brain. It has a touchscreen live-view display with controls and is reversible so the display can be used for selfie/vlog shots. The 1" Mod and Core module mount side by side on the Battery Base, connecting into electronic contacts on it. The Battery Base has a built-in battery that powers the modules for approximately 65-70 minutes. The Battery Base is rechargeable via a USB interface.

With everything thus set up, all the modules function together as one unit. When they're assembled like this and installed in the Mounting Bracket, the whole setup becomes waterproof down to 16' without any waterproof housing required. (The different modules are waterproof only after being fully assembled on the Battery Base and installed in the included Mounting Bracket.) Alternatively, for deeper waters, an optional 98' dive case is available specifically for use with the 1" Edition.

The 1" Mod can be swapped out for other ONE R modules, sold separately, hence the modular aspect of the ONE R system, which ultimately allows you to approach different applications with one system.

The large sensor of the 1" Mod ensures highly increased low-light capability and better detail and color at all resolutions. The 1" Mod also has built-in FlowState image stabilization that uses a scene-detection algorithm to stabilize your shots. This feature works well even in low-light conditions thanks to the large sensor. The stabilization smooths out camera shake so your images come out more balanced and professional looking. Insta360 has teamed up with Leica in the optical design of this module.

The companion iOS/Android app used with the ONE R system has several creative functions that are specific to the 1" Mod. These include Starlapse mode, which automatically adjusts exposure settings to capture sweeping time-lapses of the night skies. Color Plus applies an automatic color grade to your footage, allowing you to turn standard videos into bright and colorful ones. Night Shot makes use of the 1" sensor to capture highly detailed low-light images. Other features include Slow-Mo (for 4K video and below), HDR Photo, and Voice Control.

Additional features of the ONE R include support for remote Bluetooth control from an Apple Watch or dedicated Insta360 GPS smart remote, both sold separately. The innovative, modular system also offers external mic support via an optional Insta360 USB Type-C to 3.5mm adapter.

1" Edition Key Features

Core module with a touchscreen live-view display, reversible for selfie/vlog shots

1" Mod with low-light friendly 1" sensor captures up to 5.3K resolution video at 30 fps, 19MP photos in 3:2 and 16:9 aspect ratios, and Raw photos

Battery Base with 65 to 70-minute built-in battery

Mounting Bracket with 3-prong mount

Waterproof down to 16' when the Core module, 1" Mod, and Battery Base are assembled and installed in the Mounting Bracket

Optional 98' dive case supported

FlowState image stabilization built into 1" Mod

Starlapse mode, Color Plus, Night Shot, Slow-Mo, HDR Photo, Voice Control, and other creative features applicable with the 1" Mod via the companion iOS/Android app

External mic support via an optional Insta360 USB Type-C to 3.5mm adapter

Compatible Mobile Devices

• iOS A11 or above
• Android Kirin 980 or above
• Qualcomm Snapdragon 845
• Exynos 9810 or above

• Aperture: F3.2
• 35mm Equivalent Focal Length: 14.4mm

Photo Resolution

• 5312 x 3552 (3:2)
• 5312 x 2988 (16:9)

Video Resolution

• 5312x2988@24/25/30fps,
• 3840x2160@24/25/30/60fps,
• 2720x1530@24/25/30/60fps,
• 1920x1080@24/25/30/60/120fps

Photo Format

• jpg,
• RAW (dng) (RAW files require software on PC/Mac to export)

Video Format

• insv (can be exported via App or Studio),
• mp4 (enable in-camera basic stabilization),

* The .insv video format has been changed to .mp4 in firmware 1.2.16 and later

• Video Coding: H.264 / H.265
• Video Modes: Standard video, Timelapse mode, TimeShift mode
• Weight: 158.2g
• Dimensions (W x H x D): 78.7mm x 53.8mm x 47.2mm
• Run Time: 5.3K @30fps - 65 minutes
• Video Bitrate: 100Mbps
• Gyroscope: 6-axis Gyroscope

Compatible Devices
Recommended devices：
iOS:

• A11 or above iOS
• iPhone SE, iPhone 11/11 Pro/11 Pro Max, iPhone XS/XS Max, iPhone XR, iPhone X, iPhone 8/8 Plus

Android:

• Kirin 980 or above (Huawei Mate20, P30 and above)
• Qualcomm Snapdragon 845 (Samsung Galaxy S9, Xiaomi Mi 8 and above)
• Exynos 9810 or above (Samsung S9, S9+, Note9 and above)

* Devices that do not meet the above requirements can still use the app to control ONE R, however, some operations with high processing performance requirements such as AI supported functions and video playback, may be sub-optimal.

• Photo Modes: Standard photos, HDR photos, Burst, Interval photos, Night Shot, PureShot
• Live-streaming: Coming Soon
• EV: ±4EV

Exposure Modes
Photo Shoot

• Auto, Manual(Shutter 1/8000s-120s, ISO 100-3200), Shutter Priority(1/8000s-1s), ISO Priority(100-3200)

Video Shoot

• Auto, Manual(Shutter 1/8000 - 1/30, ISO 100-3200)

• WB: Auto, 2700K, 4000K, 5000K, 6500K
• Bluetooth: BLE4.0
• Wi-Fi: 5G (Standard range of approximately 20 meters)
• USB: Type-C
• Micro SD Card: UHS-I V30 speed class, exFAT(FAT64) format SD cards with a max storage of 1T are recommended.
• Battery Capacity: 1190mAh
• Charging Method: Type-C
• Charging Time: 65mins
• Use Environment: -4° F to 104° F (-20℃ to 40℃)

In the Box

• Insta360 ONE R 1" Edition
• Core Module
• Insta360 ONE R 1" Mod
• Insta360 ONE R Battery Base
• Insta360 ONE R Mounting Bracket
