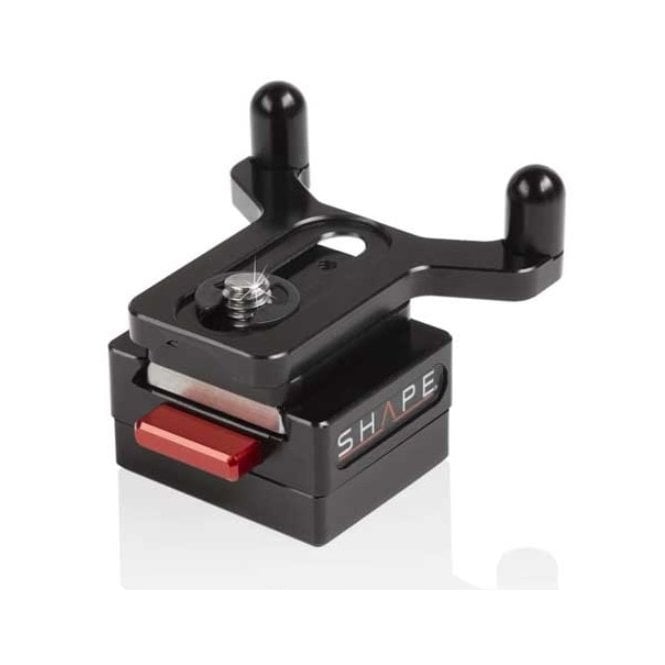

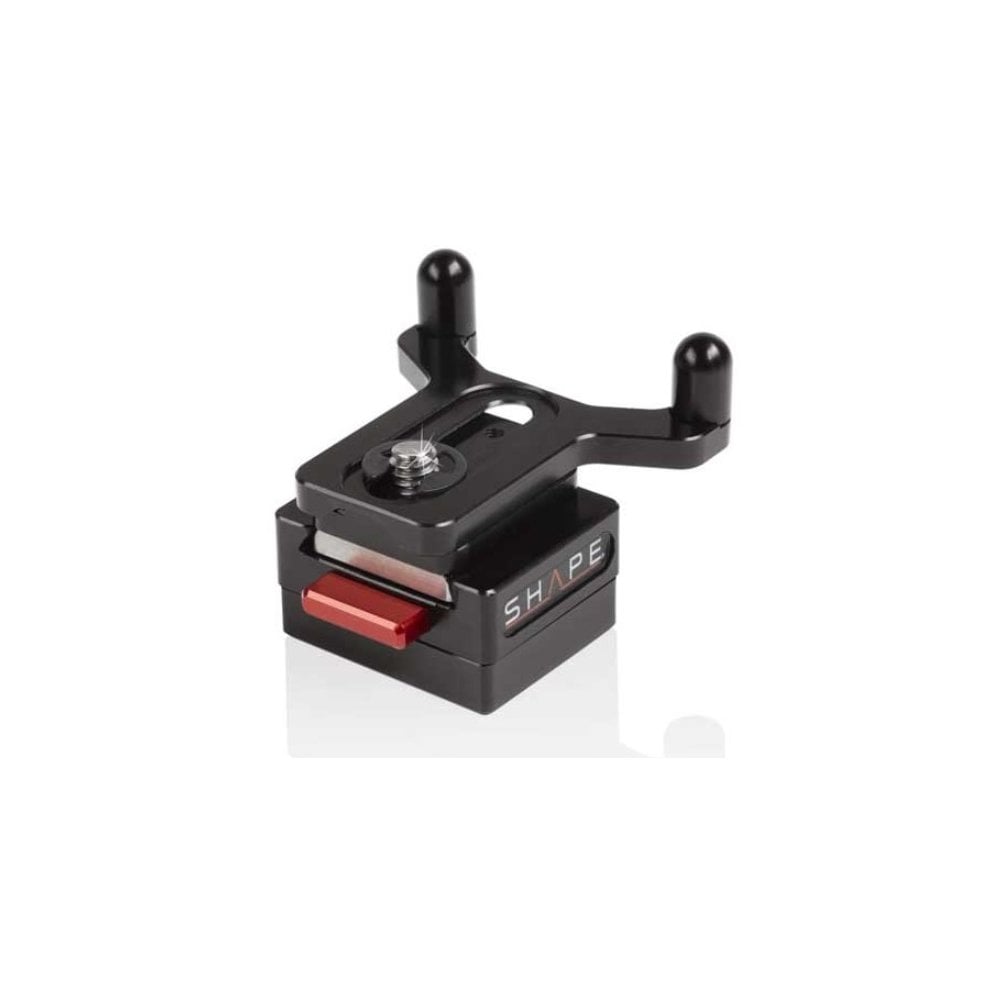

Shape mini quick release monitor mount for magic arm

code: SH-MNQR
  • £126.28
  • RRP: £126.28
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features

  • Top section of the magic arm is designed with a (V-mount) Mini Quick Release Lock Station, compatible to mount our Mini Delta Monitor Plate (MILTA);The Mini Delta Monitor Plate (MILTA) is designed with a Mini Delta Plate and a sliding bracket with 2 anti-rotating support pins to hold your monitor;
  • The Mini Delta Plate (28mm x 24mm ) can be installed in both direction on the bracket, allowing you to position the anti-rotating support pins in the front or back of the monitor;
  • The 2 anti-rotating support pins are 11mm height, 8mm diameter and are designed to keep your monitor in place;

SH-MNQR SHMNQR SH MNQR SH/MNQR Shape mini quick release monitor mount for magic arm

Mini Delta Monitor Plate ( MILTA)

The Mini Delta Monitor Plate (MILTA) is designed with a Mini Delta Plate and a sliding bracket with 2 anti-rotating support pins to hold your monitor

The Mini Delta Plate (28 mm x 24 mm ) can be installed in both direction on the bracket, allowing you to position the anti-rotating support pins in the front or back of the monitor

The 2 anti-rotating support pins are 11 mm height, 8mm diameter and are designed to keep your monitor in place

Strongly attach your monitor to the bracket with (1) ¼-20 captive screw and use the sliding feature to rest your monitor onto the anti rotating stoppers (Due to the different thickness of monitors, the sliding plate can be adjusted so the monitor rest on the anti rotating stoppers)

The sliding distance between the centre of the captive screw and the 2 anti rotating stoppers goes from 12mm to 35 mm, meaning that you have 23mm freedom to adjust your monitor to the stoppers.

Specifications

  • Weight: 0.09 lbs/0.04 kg
  • Dimensions: 0.94 x 1.97 x 1.97 in/ 2.39 x 5.00 x 5.00 cm

In The Box

  • 1x Mini Delta Monitor Plate (MILTA)
  • 1x Mini Quick Release Lock Station (MIQK)
