Sony 5GHz/2.4GHz Wireless LAN Adapter/Dongle

Sony CBK-WA02 (CBKWA02, CBK/WA02, cbk-wa02) 5GHz/2.4GHz Wireless LAN Adapter/Dongle

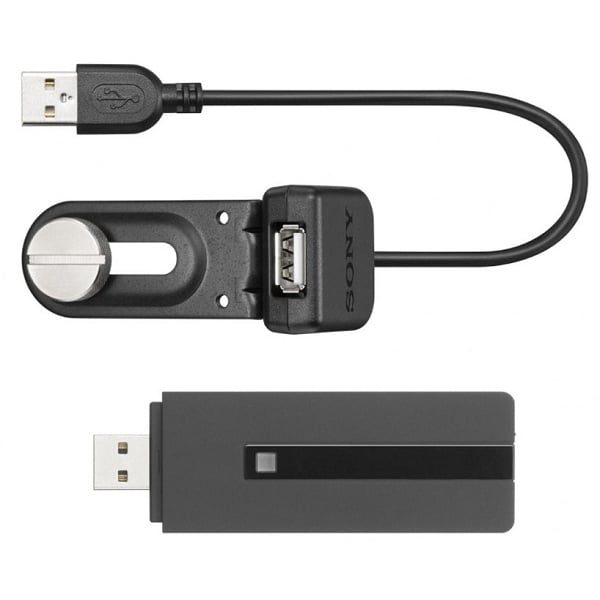

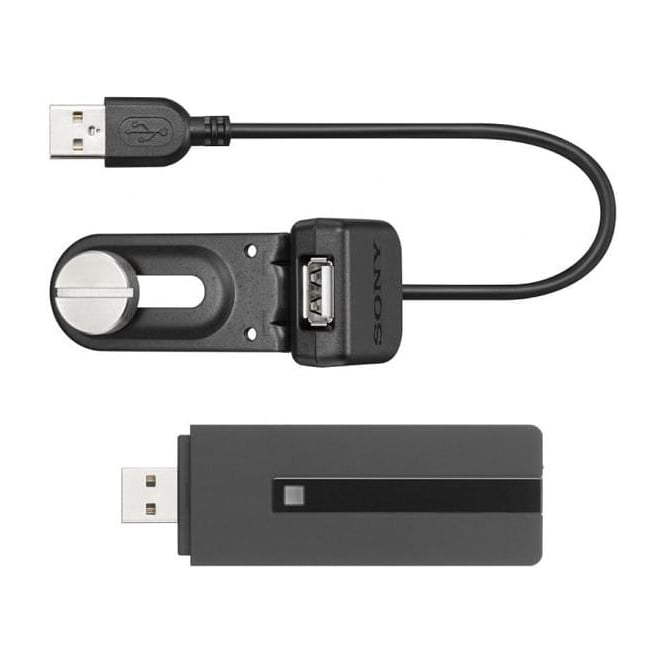

The CBK-WA02 Wireless LAN adapter enables wireless data transfer from specified Sony camcorders to other devices on the same network. The kit consists of two units: the CBK-WA02 Wireless LAN Adapter and CBK-NA1E - modem attachment for 3G/4G/LTE communication.

This kit is designed for use with camcorders such as PXW-X500, PXW-X200 and PXW-X180 that are compatible with wireless LAN network operation and have appropriate firmware. CBK-WA02 is also compatible with wireless adapters CBK-WA100 and CBK-WA101 with V2.0 or greater firmware installed.

• Weight: Approx. 20 g
• Dimensions (W x H x D): 25.5 x 11.0 x 81.0 mm
• Power Requirements: DC 5 V
• Power Consumption: 2.5W
• Operating Temperature: 0 to +40 ℃, +32 to +104 °F
• Operating Humidity: 20% to 90%
• Standards compliance: IEEE 802.11a/b/g/n/ac
• Security: 64/128 bit: WEP, WPA/WPA2
• Host Interface: USB 2.0 Type A

Frequency

USA/Canada:

• 2.400 GHz – 2.473 GHz
• 5.150 GHz – 5.350 GHz
• 5.470 GHz – 5.585 GHz
• 5.655 GHz – 5.725 GHz
• 5.725 GHz – 5.850 GHz

Europe:

• 2.400 GHz – 2.483 GHz
• 5.150 GHz – 5.350 GHz,
• 5.470 GHz – 5.725 GHz
• 5.730 GHz – 5.850 GHz

China:

• 2.400 GHz–2.483 GHz
• 5.150 GHz–5.350 GHz

Japan:

• 2.400 GHz ～ 2.483 GHz
• 5.150 GHz ～ 5.350 GHz
• 5.470 GHz ～ 5.725 GHz

Data rate (standard value)*

• Max. 866 Mbps (IEEE802.11ac)
• Max. 300 Mbps (IEEE802.11n)
• Max. 54 Mbps (IEEE802.11a, IEEE802.11g)
• Max. 11 Mbps (IEEE802.11b)

In the box

• CBK-WA02
• Network Module Extension Adapter CBK-NA1E
• Installation Manual
• Warranty
• WEEE Directive paper
• RoHS Directive paper
