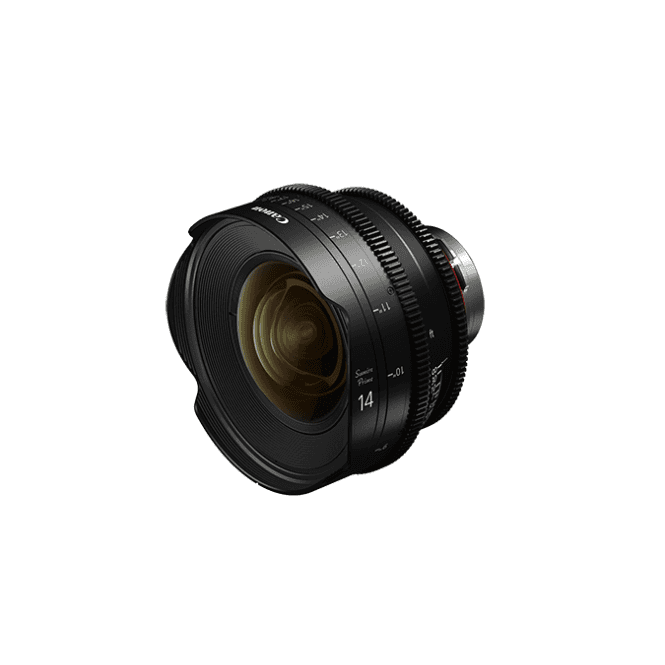

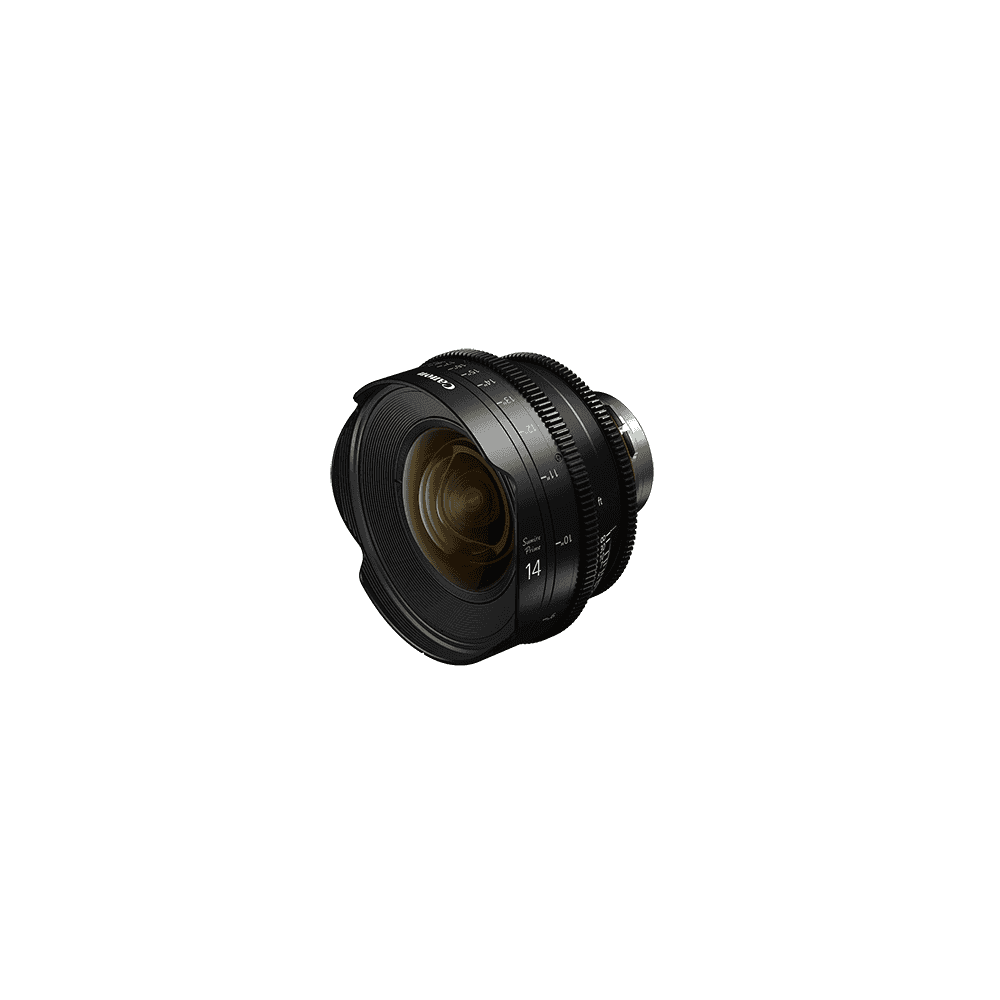

Canon 3801C003 CN-E14mm T3.1 FP X Sumire Cinema PL Mount Prime Lens

Canon 3801C003 (CN-E 14mm T3.1 FP X, cn-e 14mm t3.1 fp x, CN-E_14mm_T3.1_FP_X) CN-E14mm T3.1 FP X Sumire Cinema PL Mount Prime Lens

Designed to offer delicate and subtle rendering of a subject, the Canon CN-E14mm T3.1 FP X Sumire Cinema PL Mount Prime Lens offers fast aperture and precise manual control with a crafted focus bokeh aimed at careful creative expression.

Specifically Designed 'Cinematic Look'

A unique optical design offers a nuanced look at the lens' wider aperture settings, subtly modifying textural renderings for pleasing bokeh with superb expressiveness.

PL Mount with Full-Frame Coverage

The CN-E14mm lens offers wide compatibility options for PL mount 35mm Full-Frame and Super 35mm cameras and can be changed to an EF mount at any authorised service facility.

Unified Warm Colour Tone

Sumire primes inherit the same subtle warm colour tone from the Canon cinema lens range, making it easy to change lenses without affecting colour balance.

Fast and Bright with Beautiful Bokeh

A fast T-number is thanks to a large lens diameter and together with an 11-blade iris, offers richer levels of bokeh. The lens design also significantly reduces focus breathing.

Fine Focusing with Filter and Gear Consistency

With carefully developed focus resistance, delicate focus adjustments can be made over a 300-degree rotation angle. All lenses accept 105mm screw-on filters, have a 114mm diameter lens front and have consistently positioned gears for ease of use.

• Mount: PL Mount (Interchangeable to EF at authorised service facility)
• Focal Length: 14mm
• T-Stop: T 3.1
• Number of Iris Blades: 11 Blades

Angle of View
Aspect Ratio 1.5:1

• (Screen Dimensions 36.0 x 24.0mm): 104.3°×81.2°

Aspect Ratio 1.78:1

• (Screen Dimensions 24.6 x 13.8mm): 82.6°×52.5°

Minimum Object Distance

• Minimum Object Distance (from sensor): 0.20 m／8"

Object Dimensions at Minimum Object Distance
Aspect Ratio 1.5:1

• (Screen Dimensions 36.0 x 24.0mm): 25.2 ×16.8 cm

Aspect Ratio 1.78:1

• (Screen Dimensions 24.6 x 13.8mm): 17.2 ×9.7 cm

Pitch of Focus Gear

• Gear Pitch: 0.8
• Front Diameter: Φ114 mm
• Focus Dia.: 116.8mm
• Zoom Dia.: -
• Iris Dia.: 100.8mm

General

• Approx. Size (W x H x L): 118.4 ×118.4 ×86.0 mm
• Approx. Mass: 1.2kg

In the Box

• Canon CN-E14mm T3.1 FP X Sumire Cinema PL Mount Prime Lens
