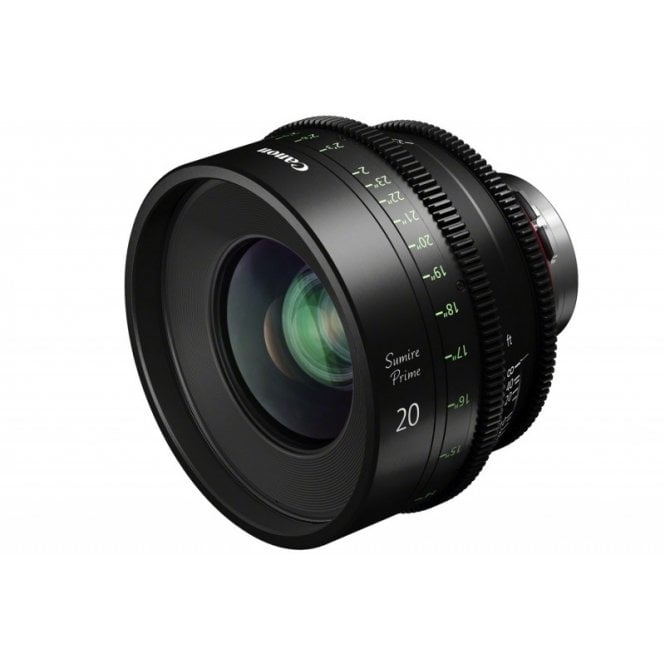

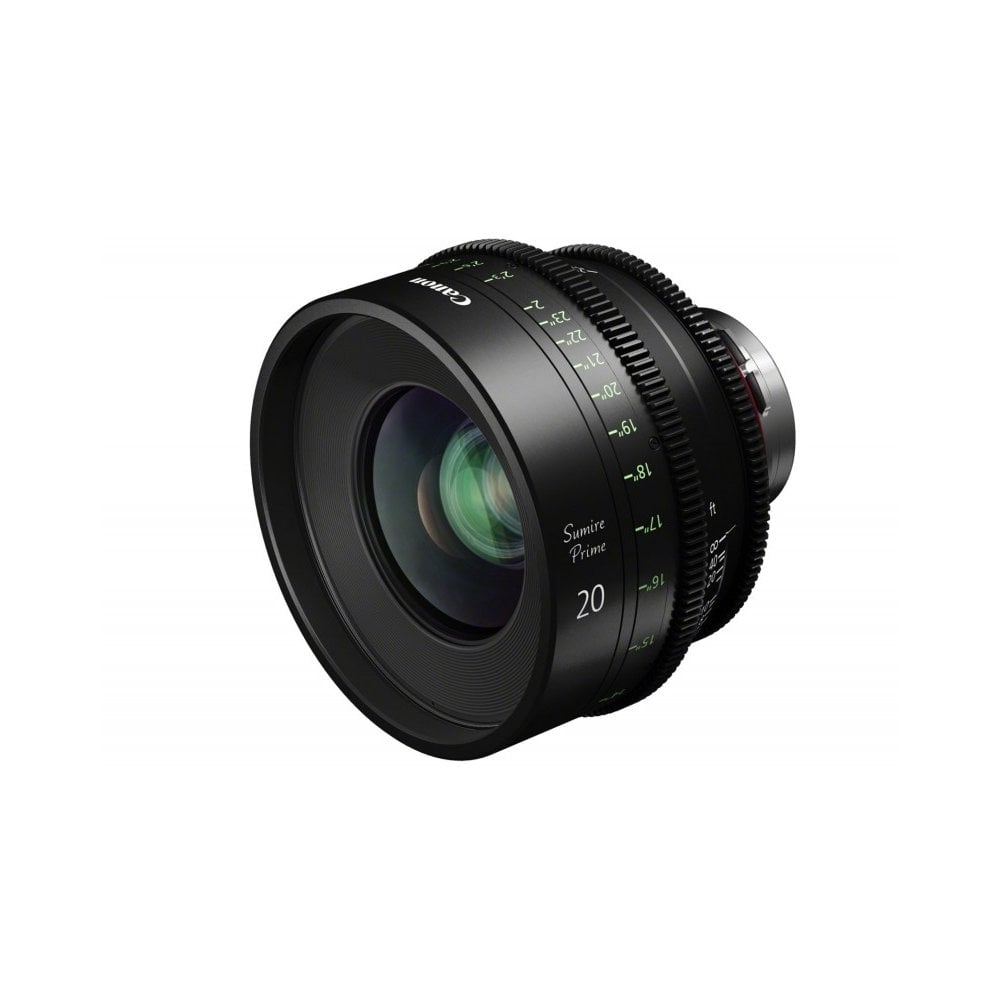

Canon 3802C003 CN-E20mm T1.5 FP X Sumire Cinema PL Mount Prime Lens

Canon 3802C003 (CN-E20mm-T1.5-FP-X, cn-E_20mm_t1.5_fp_x, sumire-prime-cn-e-20mm-pl) CN-E20mm T1.5 FP X Sumire Cinema PL Mount Prime Lens

Subtle, cinematic and expressive. Yet beautifully refined. Designed to offer delicate and subtle rendering of a subject, these seven prime lenses offer fast apertures and precise manual control with a crafted focus bokeh aimed at careful creative expression.Capture every detail with ease

Specially designed ‘cinematic look’:

A unique optical design offers a nuanced look at the lens’ wider aperture settings, subtly modifying textural renderings for pleasing bokeh with superb expressiveness.

PL mount with Full-Frame coverage:

The lens offers wide compatibility options for PL mount 35mm Full-Frame and Super 35mm cameras and can be changed to an EF mount at any authorised service facility.

Unified warm colour tone:

Sumire primes inherit the same subtle warm colour tone from the Canon cinema lens range, making it easy to change lenses without affecting colour balance.

Fast and bright with beautiful bokeh:

A fast T-number is thanks to a large lens diameter and together with an 11-blade iris, offers richer levels of bokeh. The lens design also significantly reduces focus breathing.

Fine focusing with filter and gear consistency:

With carefully developed focus resistance, delicate focus adjustments can be made over a 300-degree rotation angle. All lenses accept 105mm screw-on filters, have a 114mm diameter lens front and have consistently positioned gears for ease of use.

• Mount: PL Mount (Interchangeable to EF at authorised service facility)
• Focal Length: 20mm
• T-Stop: T 1.5
• Number of Iris Blades: 11 Blades

Angle of View
Aspect Ratio 1.5:1

• (Screen Dimensions 36.0 x 24.0mm): 84.0°×61.9°

Aspect Ratio 1.78:1

• (Screen Dimensions 24.6 x 13.8mm): 63.2°×38.1°

Minimum Object Distance

• Minimum Object Distance (from sensor): 0.3 m／12”

Object Dimensions at Minimum Object Distance
Aspect Ratio 1.5:1

• (Screen Dimensions 36.0 x 24.0mm): 33.8 x 22.5cm

Aspect Ratio 1.78:1

• (Screen Dimensions 24.6 x 13.8mm): 23.1 x 13.0cm

Pitch of Focus Gear

• Gear Pitch: 0.8
• Focus Dia.: 116.8mm
• Zoom Dia.: -
• Iris Dia.: 100.8mm
• Front Diameter: Φ114 mm

General

• Approx. Size (W x H x L): 118.4 x 118.4 x 93.5mm
• Approx. Mass: 1.2kg

In the Box

• Canon CN-E20mm T1.5 FP X Sumire Cinema PL Mount Prime Lens
