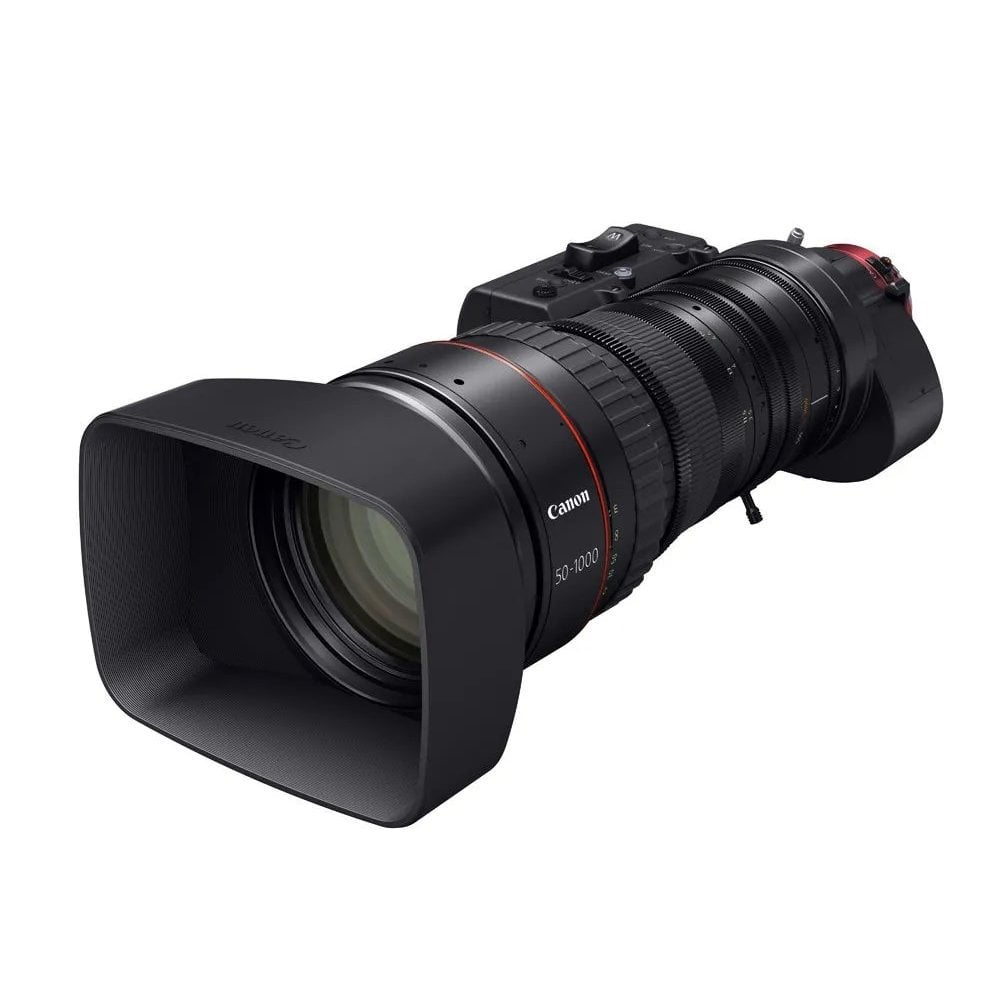

Canon CN20x50 IAS H E1/P1 Lens

Canon CN20x50 IAS H E1/P1 Lens(0438C002AB)

An ultra-telephoto CINE-SERVO lens, the CN20 x50 IAS H E1/P1 offers stunning 4K performance, 20x zoom and a 1.5x built-in extender for an unrivalled 50-1000mm focal length (75-1500mm with extender). Ideal for sports events and wildlife applications.

Superb 4k performance

The CN20x 50 IAS H E1/P1 offers outstanding 4k quality - from image centre to image edge. Designed for Super 35mm cameras using Canon’s renowned optical expertise it enables a wide variety of shooting and expression and incorporates an 11-blade diaphragm to deliver softer, more attractive out of focus areas. The lens is available in both EF and PL mount versions.

Class leading ultra-telephoto lens

An unrivalled 20x zoom together with an in-built 1.5x extender deliver a class-leading focal length spanning 50mm up to 1500 mm. Carriable and lightweight it is the ideal field lens for sport events and wildlife applications with high optical performance across the entire zoom range. It is also both weatherproof and shockproof for excellent durability in any shooting environment.

Designed for broadcast shooting

The CN20x50 IAS H E1/P1 employs a servo drive unit, enabling use in broadcast-style shooting environments where cine lenses are impractical. The compact design weighs only around 6.6kg and offers a familiar and intuitive operating experience. It’s ideal for tripod-based and virtual studio use. Focus ring rotation is 180o, balancing the accuracy required for 4K imaging with the speed needed for broadcast use.

Perfect for cinematographers

This lens is also ideal for cinema-style applications. The servo drive unit is easily removed for operation as a traditional cine lens – and just as easily re-installed. No adjustment of gear positions is required, enabling a fluid, versatile shooting style previously unavailable with large sensor cameras.The lens is fully compatible with industry-standard accessories and matte boxes as well as 0.8 and 0.5 type gear module accessories such as follow focus units. The font diameter is Φ136mm. It’s also colour-matched, for easy integration from the Canon cinema lenses range.

Versatile camera/lens communication

For added versatility the CN20x50 IAS H E1/P1 supports multiple lens communication methods. Canon’s EF-mount version supports lens metadata and other functions such as Peripheral Illumination Correction. A 12-pin serial connection provides a compatible interface for broadcast environments. Cooke /i Technology is supported in the PL-mount variant, allowing capture of lens data by cameras often used in productions environments.

Focal Length 50 - 1000mm (75-1500mm w/ 1.5xEXT)

Zoom Ratio 20x

Image Size Super35mm

Maximum Relative Aperture T5.0 at 50-560mm

T8.9 at 1000mm

T7.5 at 75-840mm

T13.35 at 1500mm (1.5x)

Iris Blades 11

Angular Field of View 1.78:1 - 24.6x13.8mm

27.6°x 15.7° - 1.4°x 0.8°

(1.5x) 18.6°x 10.5° - 0.9°x 0.5°

1.9:1 - 26.2x13.8mm

29.4°x 15.7° - 1.5°x 0.8° (1.5x）- 19.8°x 10.5° - 1.0°x 0.5°

MOD from Image Sensor 3.5m / 11.5’

Object Dimensions at MOD 1.78:1- 24.6x13.8mm

139.3 x 78.1cm at 50mm / 7.3 x 4.1cm at 1000mm

(1.5x）92.9 x 52.1cm at 75mm / 4.9 x 2.7cm at 1500mm

1.9:1- 26.2x13.8mm

148.3 x 78.1cm at 50mm - 7.8 x 4.1cm at 1000mm

(1.5x）98.9 x 52.1cm at 75mm - 5.2 x 2.7cm at 1500mm

Front Diameter φ136mm

Approx Size (W x H x L) 175 x 170.6 x 413.2mm (EF mount)

175x170.6x405.2mm (PL Mount)

Approx Weight 6.6kg

In the Box

Canon CN20x50 IAS H E1/P1 Lens
