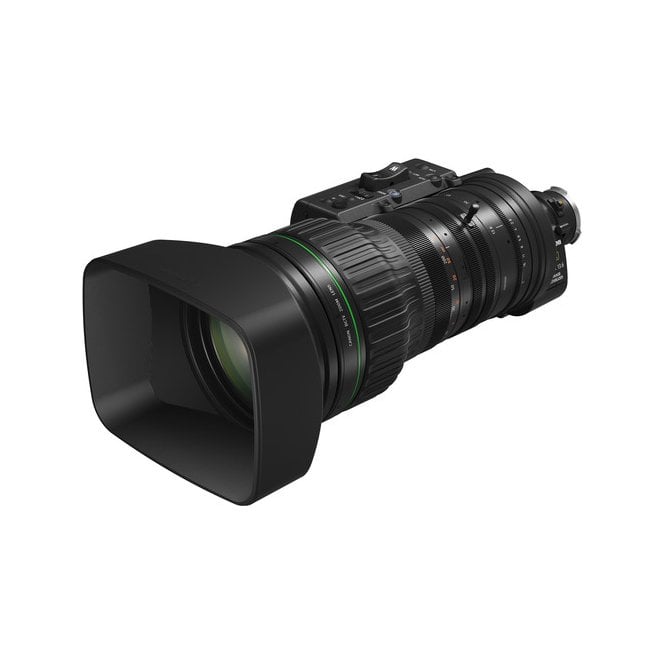

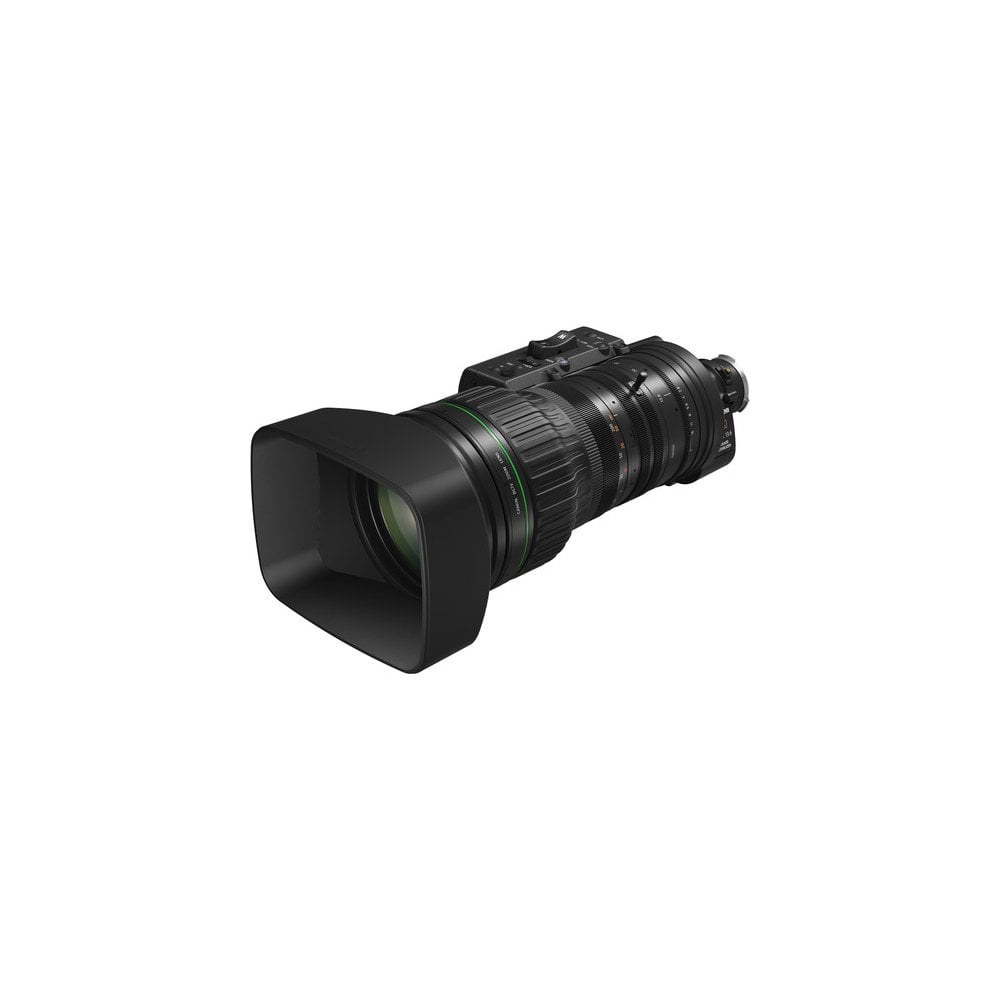

Canon 2694C002AA CJ45ex13.6B IASE V 2/3" 4K UHD Portable EFP Lens

Canon 2694C002AA (CJ45EX13.6B IASE-V H, CJ45ex13.6B IASE-V H, CJ45EX13.6B, cj45ex13.6b) CJ45ex13.6B IASE V 2/3" 4K UHD Portable EFP Lens

Designed to meet the high demands of field production applications, the CJ45ex13.6B is a 2/3" 4K UHD portable EFP lens is intended for producers and broadcasters engaged in wildlife, sports, documentary, natural history, music stage, helicopter/aerial and other challenging location productions that seek superb image capture over considerable distances.

Featuring advanced optical performance to support 4K cameras, the lens was designed to produce high resolution from center to edges of the image with outstanding luminance gradation, making it ideal for HDR shooting. High contrast is achieved by superb control of black reproduction, and a re-design of the lens optics help to reduce ghosting, flare, veiling glare, chromatic distortions and internal reflections.

With its high-grade optical components and precision optomechanical assembly, the lens offers a 45× zoom ratio that can extend to 612mm, and as far as 1224mm with the built-in 2x extender. A new and improved built-in image stabilization system features higher frequency vibration suppression and panning operability, making it ideal for shooting in dynamic environmental situations such as within helicopters, boats and motor vehicles.

A high performance digital drive unit improves servo performance compared to our HJ40x generation lenses, and can achieve the full focal range zoom in 1.2 seconds, aperture range in 1.3 seconds and focus range in 1.8 seconds. The drive unit also supports virtual systems with three 20 pin connectors and includes a digital information display for easier operation.

The CJ45ex13.6B lens offers high level 4K optical performance, 45x high zoom ratio and faster servo operation in the size of an HD super telephoto lens, representing an excellent marriage of needs for creative flexibility and mobility, while meeting the demanding performance requirements for 4K image acquisition at a wide range of focal lengths.

Product

• Product Category: EFP Lens
• Product Series: CJ45ex13.6B

Image Composition

• Object Image Format: 2/3 inch
• Aspect Ratio: 16:9
• Zoom Ratio: 45x
• Focal Length Range: 13.6 ~ 612mm
• Focal Length Range with 2x Extender: 27.2 ~ 1224mm

Angular Field of View

• 38.9° x 22.5° at 13.6mm
• 0.90° x 0.51° at 612mm

Angular Field of View with 2x Extender

• 20.0° x 11.3° at 27.2mm
• 0.45° x 0.25° at 1224mm

Optical Brightness

Maximum Relative Aperture (F-Number)

• 1:2.8 at 13.6 ~ 312mm
• 1:5.5 at 612mm

Maximum Relative Aperture (F-Number) with 2x Extender

• 1:5.6 at 27.2 ~ 624mm
• 1:11.0 at 1224mm

Scene Composition

MOD From Front of Lens

• 2.8m (10mm with macro)

Scene Object Dimensions at MOD

• 182.9 x 102.9cm at 13.6mm
• 4.2 x 2.4cm at 612mm

Scene Object Dimensions at MOD with 2x Extender

• 91.5 x 51.5cm at 27.2mm
• 2.1 x 1.2cm at 1224mm

Physical Attributes

• Width: 6.8in (173.2mm)
• Height: 5.8in (147.5mm)
• Length: 14.0in (355.0mm)
• Weight: 12.4lbs (5.64kg)

In the Box

• Canon CJ45ex13.6B IASE-V H Ultra Telephoto Broadcast Lens
