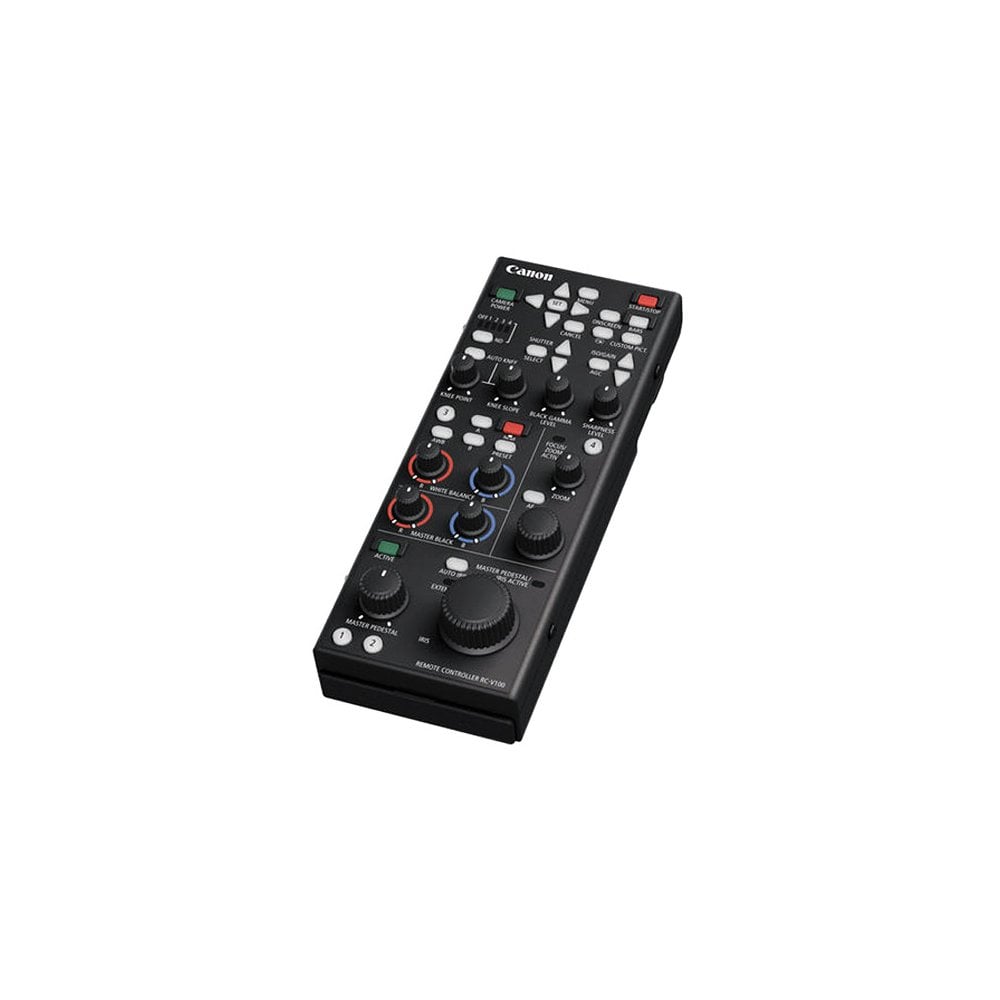

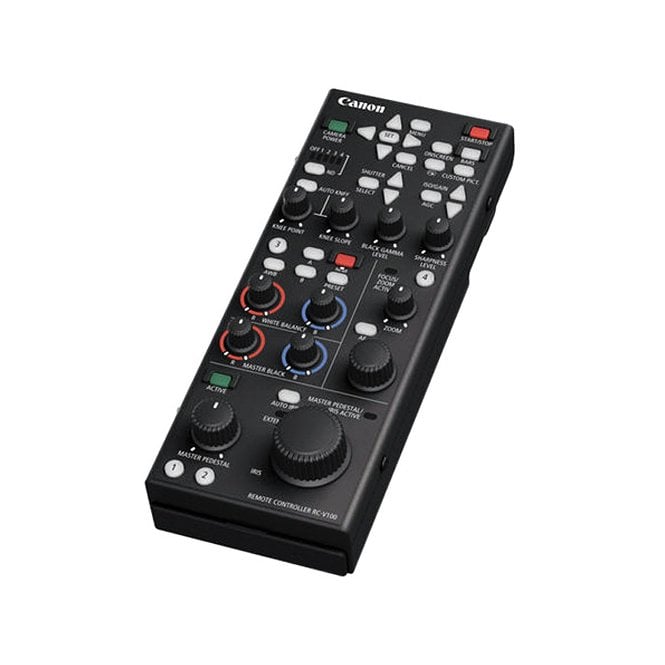

Canon 9660B001 RC-V100 Remote Controller

code: 9660B001
  • £1,894.00
Status | Usually dispatched within 24 hours
Loading...

Features:

  • Powerful wired remote control of camcorder functions
  • Intuitive layout to suit professional users
  • Dedicated dials for adjustment of advanced imaging parameters
  • Direct operational control of key camera functions such as focus, iris and gain¹
  • Access camera operating menus to quickly adjust any setting
  • Illuminated buttons enable easy low-light operation
  • Configurable buttons for user-specific control
  • Compatible with Canon Professional Video Cameras and Cinema EOS cameras
  • Ideal for on-location and in-studio usage
  • Faster communication, and up to 100m range, with the optional Canon cable RR-100

Canon 9660B001 (RCV100, RC_V100, RC/V100, rc-v100) RC-V100 Remote Controller

The Canon Remote Control RC-V100 offers camcorder users greater freedom. Whether in a studio, on location, or simply somewhere previously out of reach, it provides wired remote control of almost any camcorder function.

Powerful remote control

This powerful wired remote control for Canon's professional camcorders brings basic and advanced image adjustment to your fingertips. Connect via the REMOTE A socket using the standard 5m 3.5mm-2.5mm jack cable, or with the REMOTE B socket (using the optional 8-pin RR-10 and RR-100 cables) for faster performance, simultaneous operation and increased range - up to 10m and 100m respectively.

Extensive control

The RC-V100 combines some of the benefits of an advanced remote control and a Camera Control Unit (CCU), typically found in a studio environment. Almost any adjustable function can be controlled - from focus, iris and zoom, to user-specific options such as Custom Picture presets and specific image adjustments like knee point and slope.

Record more, differently

Certain scenarios demand remote camera control: when the camera is mounted on a jib for elevated shots, for example, or in scenarios that require quick adjustment to compensate for changing conditions. Thanks to remote access and control, these recording obstacles can be overcome. In combination with the RC-V100, Canon professional camcorders become even more versatile tools to help realise your creative vision.

Intuitive layout for greater control

The controller's intuitive layout makes control of key camera functions and image parameters easy, even if you're not an expert on the camera concerned. It has been carefully designed to be easy to understand and learn, with key features grouped together in three main sections. Common image parameters are controlled using dials, making remote image fine-tuning incredibly simple. Furthermore, user-assignable buttons are provided for added versatility.

Clear and simple operation, wherever, whenever

To aid operation in low-light situations, the buttons are illuminated, with the option of an audible 'beep' to confirm user selections.

Firmware updates

Your camera firmware may need to be updated to enable compatibility with the RC-V100. If the RC-V100's REMOTE B terminal is not already enabled, this can be done via a service update using the device's USB port.

Lens control not possible with PL-mount Cinema EOS cameras or manual lenses

DESIGN SPECIFICATION

  • Model: Wired Remote Controller
  • Supply Voltage: DC 5.0V - 6.0V
  • Power Source: Via camera
  • Power Consumption: 0.25W (Max)
  • Connections available: REMOTE A Connector (stereo mini jack 3.5mm). USB connector (mini-B for service and update)
  • Cable Length: 5 M
  • Maximum Dimensions (Wx H x D): 89 x 224 x 65mm (3.5 x 8.8 x 2.6 inch)
  • Weight: Approx. 630g (1.4lb)
  • Operating Temperature Range: 0°C to +40°C (32°F to 104°F)

CONTROL OPTIONS*

  • Camera Power: On/Off
  • Recording Function: Start/Stop
  • REC Review: When Camera is in MEDIA mode
  • Colour Bars: On/Off when BARS selected
  • On Screen: Select
  • Cancel: Select
  • Menu: Access Camera Menu
  • Up/down/left and right SET buttons: Menu Control
  • ACTIVE button: Prevents accidental operation, depending on mode
  • Assign Button (1 - 4): Set/Select custom functions from camera
  • ND Filter Selection/Operation: C300/C300PL/C500/C500PL
  • KNEE: Auto Knee/Knee Point/Knee slope
  • Black Gamma Level: Set
  • White Balance (WB): AUTO/WB A, WB B/WB Set/WB Preset
  • Master Black: Set
  • Sharpness Level: Set
  • Focus: AF Select/Manual Focus adjust
  • Zoom: Zoom Operation
  • Iris: Auto Iris/Manual Iris adjust
  • Master Pedastal: Set
  • Shutter: Shutter Select/Shutter Speed adjust
  • ISO/Gain: Auto Gain select/Manual Gain/ISO select
  • Custom Picture Settings: Select
  • Supported Cameras: See individual Camera specification¹

In the Box

  • Canon RC-V100 Remote Controller
