Marshall CV-RCP-V2 Touchscreen Multi-Camera Controller

code: CV-RCP-V2
  • £904.00
  • RRP: £905.00
Status | Usually dispatched within 24 hours


  • 5" Touchscreen Camera Controller
  • For Marshall Broadcast & Other Cameras
  • Control up to 7 Cameras
  • Adjust, Paint & Match Cameras Remotely

Marshall CV-RCP-V2 (CV_RCP_V2, CV/RCP/V2, CV RCP V2) Touchscreen Multi-Camera Controller

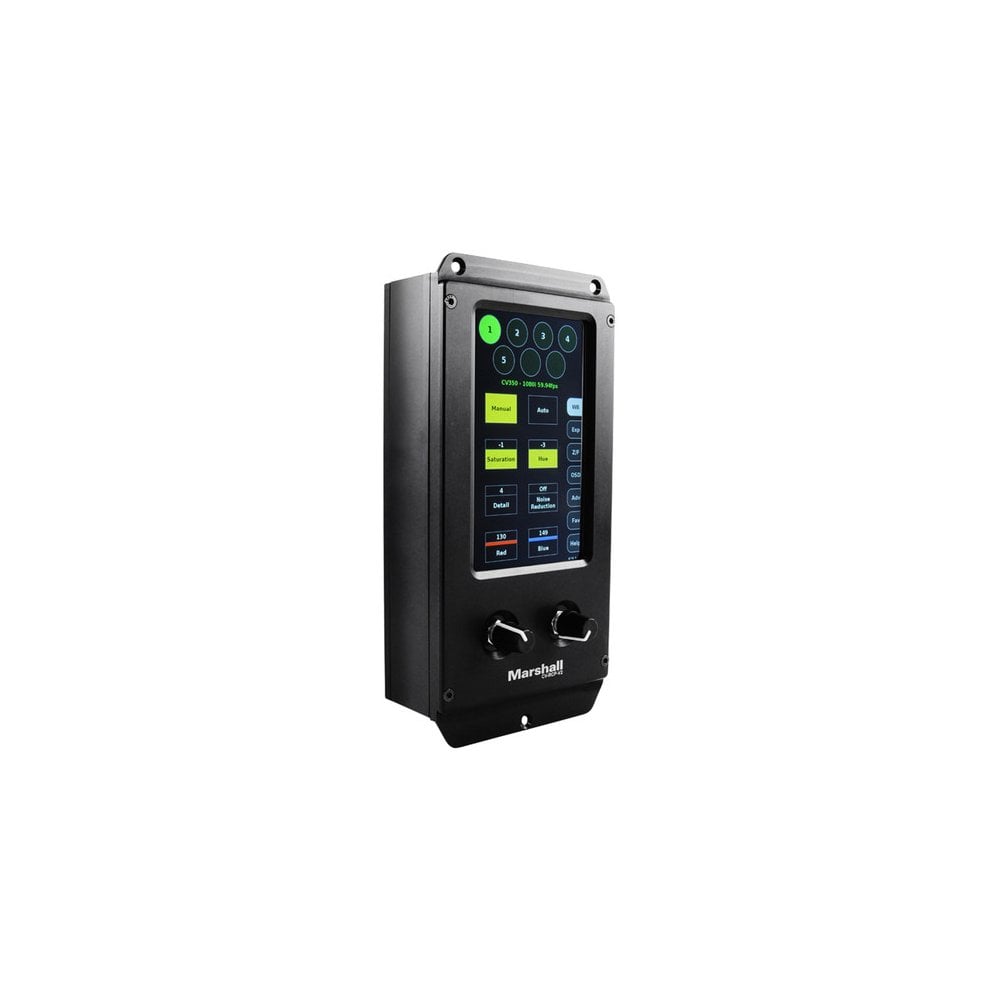

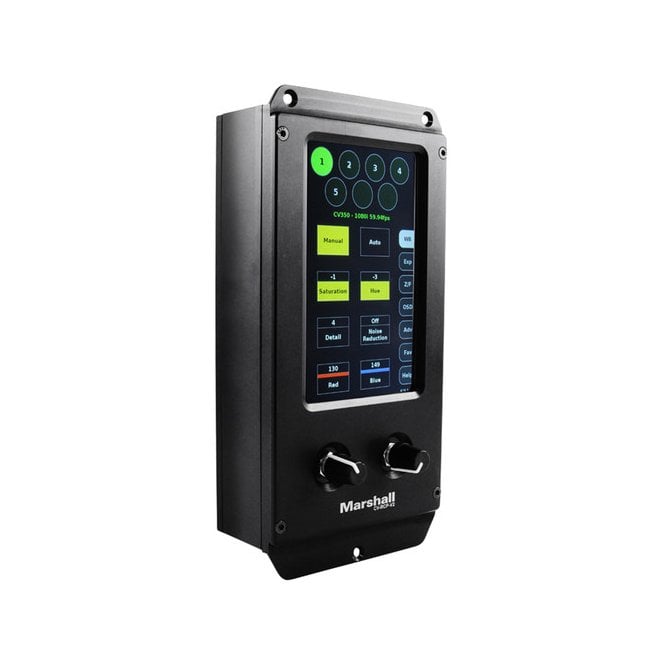

The Marshall CV-RCP-V2 Touchscreen Multi-Camera Controller provides control of up to seven cameras via a 5" touchscreen panel and two fine-tune control dials. The CV-RCP-V2 is pre-programmed with control protocols for all Marshall broadcast cameras plus select popular cameras from other brands.

Use this compact unit to conveniently adjust, paint, and match your cameras from a control room or broadcast truck. The CV-RCP-V2 employs readily available 3-pin XLR cables for distances up to 1000' and can be converted to fiber for extended distances. Cables are not included with the controller and must be sourced separately.

Your camera settings can be adjusted individually or applied globally without the OSD menu appearing in your video feed. Choose your settings via the touchscreen panel, then use the two dials for on-the-fly fine-tuning. Controllable parameters include exposure, white balance, gamma, black levels, and more. To speed up your workflow, the CV-RCP-V2's interface offers favorites settings, save features, self-help dialogs, and smart menus/sub-menus.

Housed in a sturdy aluminum case, the Marshall CV-RCP-V2 controller runs on either the included AC adapter or on 12 VDC power. Its USB port can be used for saving presets to a memory stick or for firmware updates.

Camera Compatibility

Comes pre-programmed with control protocols for all Marshall cameras including POV, varifocal models, zoom, and PTZ cameras as well as popular cameras from other brands.

Camera Paint Functions

Individually or globally adjust camera settings like white balance, exposure, black levels, gamma, red/blue gain, shutter, frame rate, resolution and more.

Touchscreen and Dial Controls

A large 5" touchscreen panel and two fine-tune dials enable you to easily and quickly adjust your settings.

Remote Control

Adjust and match up to seven cameras at distances up to 1000' with common 3-pin XLR cables. The controller can be converted for fiber use over extended distances.

  • Number of Cameras Supported: Maximum: x 7
  • Touchscreen: 5" / 127 mm
  • Maximum Cable Distance: 1000' / 305 m
  • Camera Connector: 3-Pin XLR: x 1 (female)
  • DC Input: Barrel: x 1
  • Firmware Updates: USB: x 1


  • AC/DC Power: 12 V


  • Housing Material: Aluminum
  • Dimensions (HxWxD): 8.4 x 4 x 2.5" / 213.4 x 101.6 x 63.5 mm (including knobs)

In the box

  • Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller
  • Universal 12V Power Supply
