Marshall CS-3.2-12MP CS-Mount 3.2mm Fixed Lens

Marshall CS-3.2-12MP (CS_3.2_12MP, CS/3.2/12MP, CS 3.2 12MP) CS-Mount 3.2mm Fixed Lens

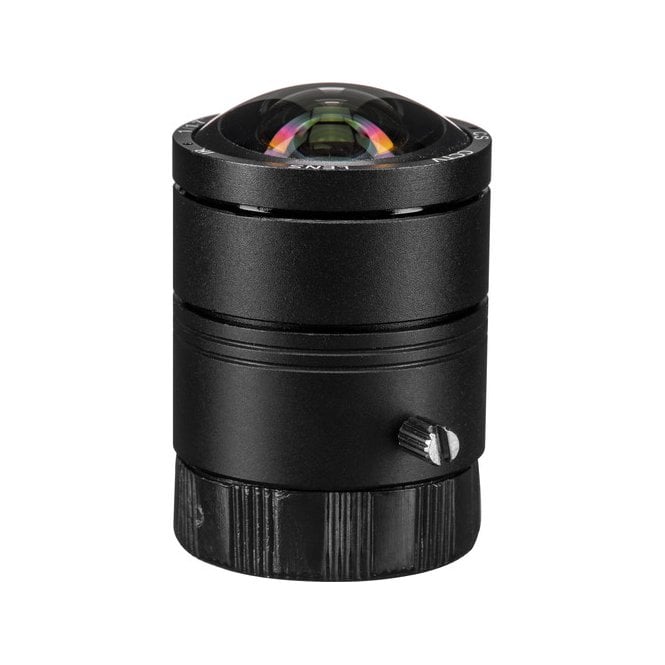

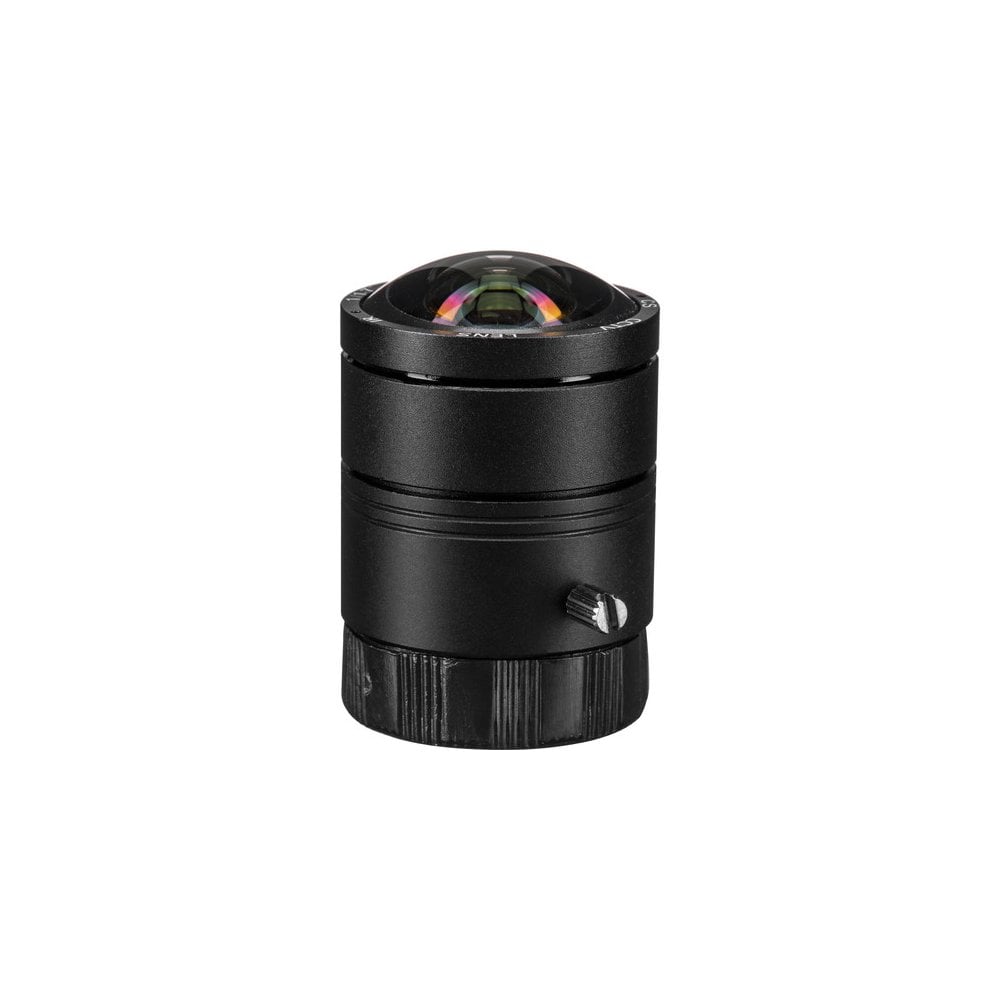

The CS-Mount 3.2mm Fixed Lens from Marshall Electronics is designed for use with 12MP cameras that have a 1/1.7" sensor. This lens has a 3.2mm focal length that delivers a 131° horizontal field of view. It is IR corrected and features fixed iris operation.

• Lens Mount: CS
• Sensor Compatibility: 1/1.7", 1/1.8", 1/2.3"
• Focal Length: 3.2mm
• Back Focal Length: 6mm
• Aperture: f/2
• Angle of View: 1/1.7" Sensor, Diagonal: 160°, Horizontal: 131°, Vertical: 99°, 1/1.8" Sensor, Diagonal: 153.6°, orizontal: 129°
• Vertical: 88°, 1/2.3" Sensor, Diagonal: 136°, Horizontal: 113.5°, Vertical: 83°
• Minimum Object Distance: 0.98' / 0.3 m
• Focus Type: Fixed Focus
• Iris Type: Fixed
• Distortion: -64%
• IR Corrected: Yes
• Operating Temperature: -40 to 221°F / -40 to 105°C
• Dimensions (ø x L): 1.1 x 1.53" / 28 x 38.9 mm
• Weight: 1.9 oz / 53 g

In the box

• Marshall Electronics CS-3.2-12MP CS-Mount 3.2mm Fixed Lens
