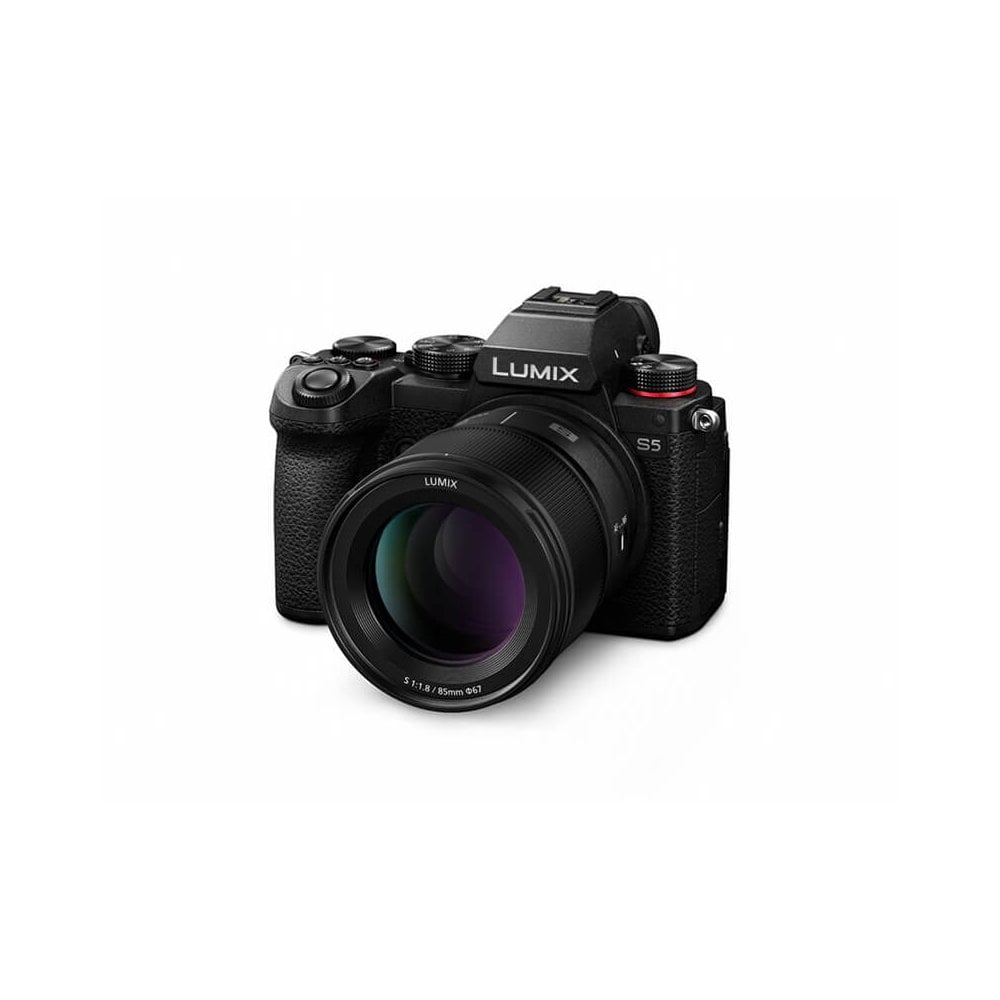

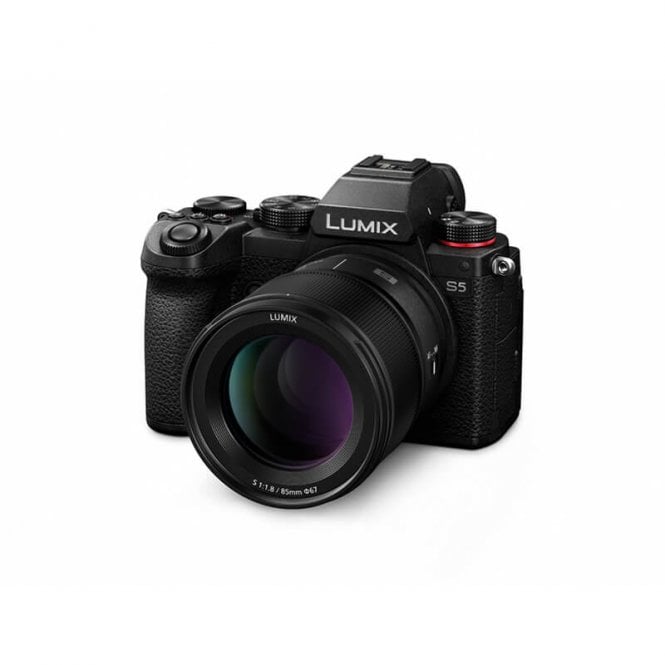

Panasonic Lumix S 85mm F1.8 Lens - L Mount

Panasonic LUMIX S 85mm F1.8 Lens - L Mount (PAN-S-S85E, PAN S S85E, PAN/S/S85E)

Comprising 9 elements in 8 groups, the use of 2 ED (Extra-low Dispersion) lenses effectively suppress both axial chromatic aberration and chromatic aberration of magnification.

Panasonic S Series lenses pursue the beauty of bokeh and the LUMIX S 85mm F1.8 provides smooth defocus gradation from the focus peak to the neighboring area of the image as well as smooth, round bokeh of point light source without vignetting.

The LUMIX S 85mm F1.8 also excels in video recording performance with a mechanism that suppresses focus breathing. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.

With its compact 355g (approx.) of light weight, the LUMIX S 85mm F1.8 is incredibly flexible. The rugged dust/splash-resistant* design withstands use under harsh conditions even at 10 degrees below zero.

Lens Construction 9 elements in 8 groups (2 ED lenses)

Mount L-Mount

Optical Image Stabilizer No

Focal Length f=85 mm

Aperture Type 9 diaphragm blades / Circular aperture diaphragm

Maximum Aperture F1.8

Minimum Aperture F22

Closest Focusing Distance 0.8 m/2.62 ft

Maximum Magnification 0.13 x

General

Diagonal Angle of View 29°

Dust and Splash Resistant Yes*

Recommended Operating Temperature -10 oC to 40 oC (14 oF to 104 oF)

Filter Size φ67 mm

Max. Diameter φ73.6 mm / 7.36 cm

Overall Length Approx. 82.0 mm / 8.2 cm (from the tip of the lens to the base side of the lens mount)

Weight Approx. 355 g / 12.52 oz (excluding lens cap, lens rear cap and lens hood)

Standard Accessories Lens cap, Lens rear cap, Lens hood
