Samyang V-AF 6 Lens Anamorphic kit

Samyang V-AF 6 Lens Anamorphic kit

Samyang V-AF Lens:

Unified Form Factor - Compact & Light

The V-AF increases compatibility with gimbals and drones by applying the unified form factors with its 5 different focal lengths (Ultra-Wide to Medium-tele). By providing a compact size of 73 X 70mm and a light-weight of less than 300g, there is no need to re-set the equipment when changing the lenses.

Tally Lamp - Excellent Usability

The lamp located on the front and mount index helps the user to check whether a video is recorded or not while shooting. It supports video content creation more conveniently even in a small space without a lot of equipment.

Support 8K and the Same Colour Tone

The new V-AF series supports resolutions up to 8K in a small and lightweight form, which is well suited for use with handheld gimbals and drones, as well as for studios and location productions. All lenses within the new V-AF series are colour-matched to avoid shifts when swapping lenses, and the 9 aperture blades allow for a natural-looking bokeh.

Custom Switch & Button

Features the 'Focus save' function usually in professional cine equipment and custom mode that adds function by firmware, which provides video-specific functions for students and amateur users who dream of cinematographers.

V-AF ANAMORPHIC MF ADAPTER 1.7X:

When coupled with a selected T1.9 V-AF lenses this exclusive accessory provides the brightest Anamorphic solution on the market

Electronic contacts on the adapter provide easy operation and superior resolution

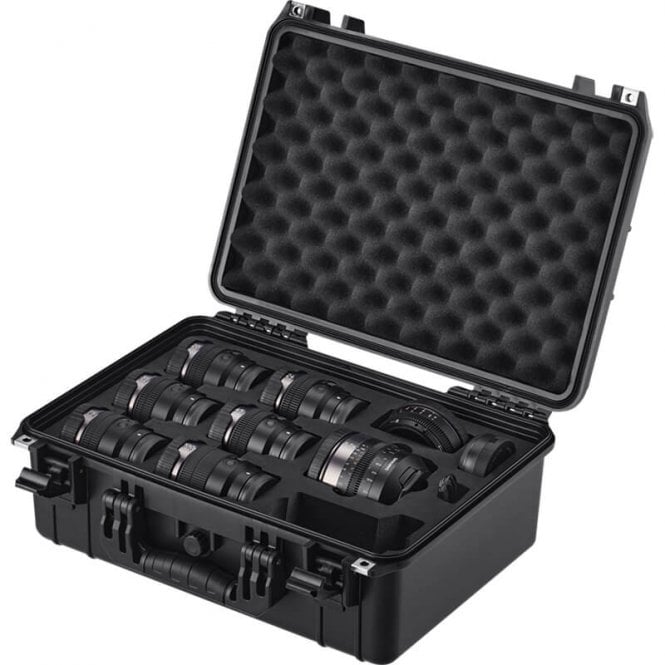

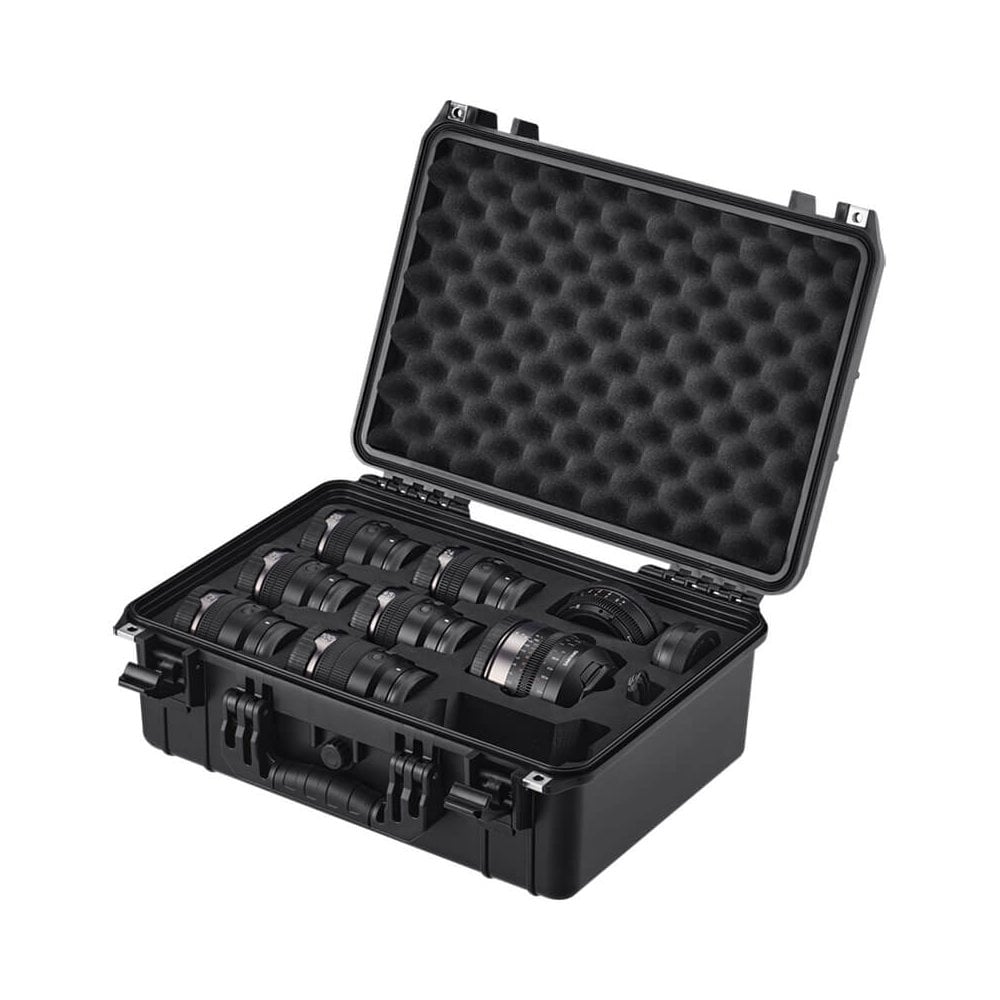

V-AF 6 LENS CASE:

Hard Case for 6 V-AF lenses, V-AF Anamorphic Adapter, V-AF MF Adapter & Lens Station

V-AF 20MM T1.9 FE

Closest Focusing Distance 20mm

Diagonal Angle of View: Full Frame 94.5°/ APS-C: 71.6°

Focal Length 20mm

Maximum Aperture T1.9

Mount Type Sony E

No. Diaphragm Blades 9

Weather Proof Yes

Weight 296g

V-AF 24MM T1.9 FE

Closest Focusing Distance 19cm

Diagonal Angle of View Full Frame: 83.7°/ APS-C: 60.9°

Dimensions 72.1mm / 2.8inch

Filter Size 58mm

Focal Length 24mm

Maximum Aperture T1.9

Maximum Diameter 72.2mm

Mount Type Sony E

No. Diaphragm Blades 9

Weather Proof Yes

Weight 280g

V-AF 35MM T1.9 FE

Closest Focusing Distance 29cm

Diagonal Angle of View Full Frame: 63.6° / APS-C: 43.8°

Dimensions 72.1mm / 2.8inch

Filter Size 58mm

Focal Length 35mm

Maximum Aperture T1.9

Maximum Diameter 72.2mm

Mount Type Sony E

No. Diaphragm Blades 9

Weather Proof Yes

Weight 280g

V-AF 45MM T1.9 FE

Closest Focusing Distance 0.35m (1.15ft)

Diagonal Angle of View Full Frame: 52.3˚ / APS-C: 35.3˚

Dimensions 72.1mm / 2.8inch

Filter Size 58mm

Focal Length 45mm

Maximum Aperture T1.9

Maximum Diameter 72.2mm

Mount Type Sony E

No. Diaphragm Blades 9

Weather Proof Yes

Weight 280g

V-AF 75MM T1.9 FE

Closest Focusing Distance 0.69m (2.26ft)

Diagonal Angle of View Full Frame: 32.9˚ / APS-C: 21.9˚

Dimensions 72.1mm / 2.8inch

Filter Size 58mm

Focal Length 75mm

Lens Construction 10 Elements in 9 Groups

Maximum Aperture T1.9

Maximum Diameter 72.2mm

Mount Type Sony E

No. Diaphragm Blades 9

Weather Proof Yes

Weight 280g

V-AF 100MM T2.3 FE

Closest Focusing Distance 0.7m

Dimensions 86.5 mm

Filter Size 58mm

Focal Length 100mm

Lens Construction 9 Elements in 8 Groups

Maximum Aperture T2.3

Maximum Diameter 72.2mm

Mount Type Sony FE

No. Diaphragm Blades 9

Weather Proof Yes

V-AF MF ADAPTER

Dimensions 41mm x Ø95mm

Weather Proof Yes

Weight 204.3g

In the box;

V-AF Kit, including Hard Case

V-AF 20mm T1.9 FE

V-AF 24mm T1.9 FE

V-AF 35mm T1.9 FE

V-AF 45mm T1.9 FE

V-AF 75mm T1.9 FE

V-AF 100mm T2.3 FE

V-AF Anamorphic MF Adapter 1.7x

V-AF MF Adapter

Lens Station

V-AF 6 Lens Case
