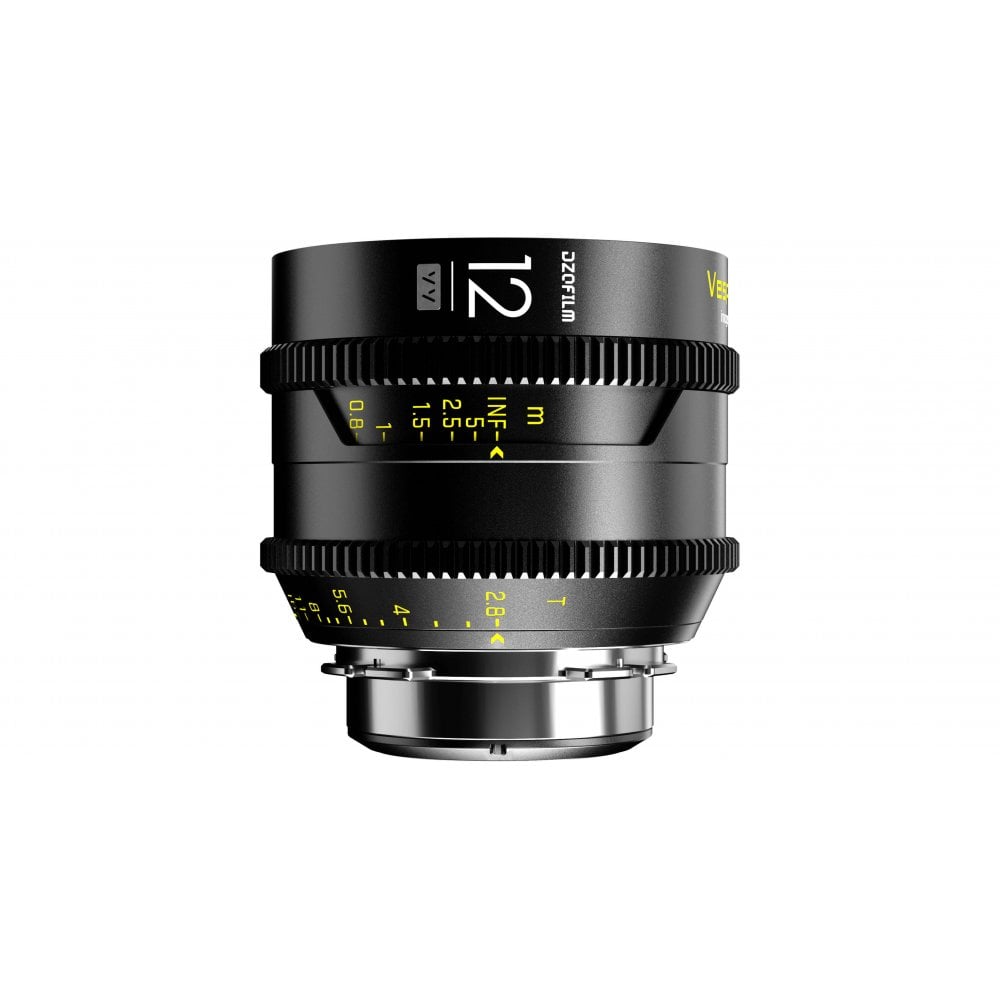

DZOFILM Vepsid 12mm T2.8 Cine Lens PL/EF Mount

DZOFilm DZO-V01228PL (DZO-V01228PL, DZO/V01228PL, DZO_V01228PL, DZOV01228PL) (DZO-Vespid-12mm-T2.8-PL-EF, DZO/Vespid/12mm/T2.8/PL/EF, DZOVespid12mmT2.8PLEF, DZO Vespid 12mm T2.8 PL EF) Vepsid 12mm T2.8 Cine Lens PL/EF Mount

Compact and lightweight, the DZOFilm VESPID 12mm T2.8 Lens is part of the VESPID series, designed for both independent and high-end full-frame cinematography. Featuring an 80mm front diameter, it seamlessly integrates with virtually any cine-style matte box. Its small form factor makes it an excellent choice for handheld shooting, run-and-gun setups, drones, and gimbals.

Equipped with an interchangeable ARRI PL mount, this fully manual lens is compatible with PL-mount cameras and can be adapted to EF-mount systems using the included Canon EF mount. With full-frame coverage supporting an image circle of up to 46.5mm, the lens ensures no vignetting when used with full-frame sensors.

Full-Frame Coverage – The 12mm focal length covers full-frame sensors, offering a wider perspective. On Super35 sensors, it provides a tighter field of view.

Cinematic Aesthetic – Balancing a modern, technically precise look with the organic character of vintage cinema lenses.

Superior Optical Coating – Reduces glare and specular highlights while maintaining natural contrast, preventing flares from washing out the image.

Smooth, Natural Bokeh – A 10-blade iris produces beautifully rounded out-of-focus highlights.

Compact & Lightweight Design – Despite its small size, it maintains an 80mm front diameter for quick and easy lens swaps.

Magnetic Rear Filter – A built-in magnetic rear mount allows for optional ND filters, helping control exposure without affecting iris settings or depth of field.

Close Focus Capability – A minimum focusing distance of just 8 inches enables detailed close-up shots.

With 270° focus ring rotation for precision pulls and a 75° iris rotation for smooth adjustments, the VESPID 12mm T2.8 is a versatile tool for filmmakers seeking high-quality imagery in a compact form factor.

• Mount: PL/EF
• Aperture: T2.8-T22
• Image Circle: 46.5mm (W/FF)
• Construction of Optics: 15 Elements in 10 Groups
• Flange Distance: 52mm (PL) / 44mm (EF)
• Close Focus (from sensor plane): 0.2m/8in
• Iris Control: Manual (75 Degree)
• Focus Control: Manual (270 Degree)
• Front Diameter: 80mm / 3.15in
• Length (from lens front to flange plane): 72mm / 2.83in
• Iris Blade: 10
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminium Alloy
• Weight: 725g

In The Box

• DZOFilm Vepsid 12mm T2.8 Cine Lens PL/EF Mount
• Front Cap
• Rear Cap
• EF Mount Tools
