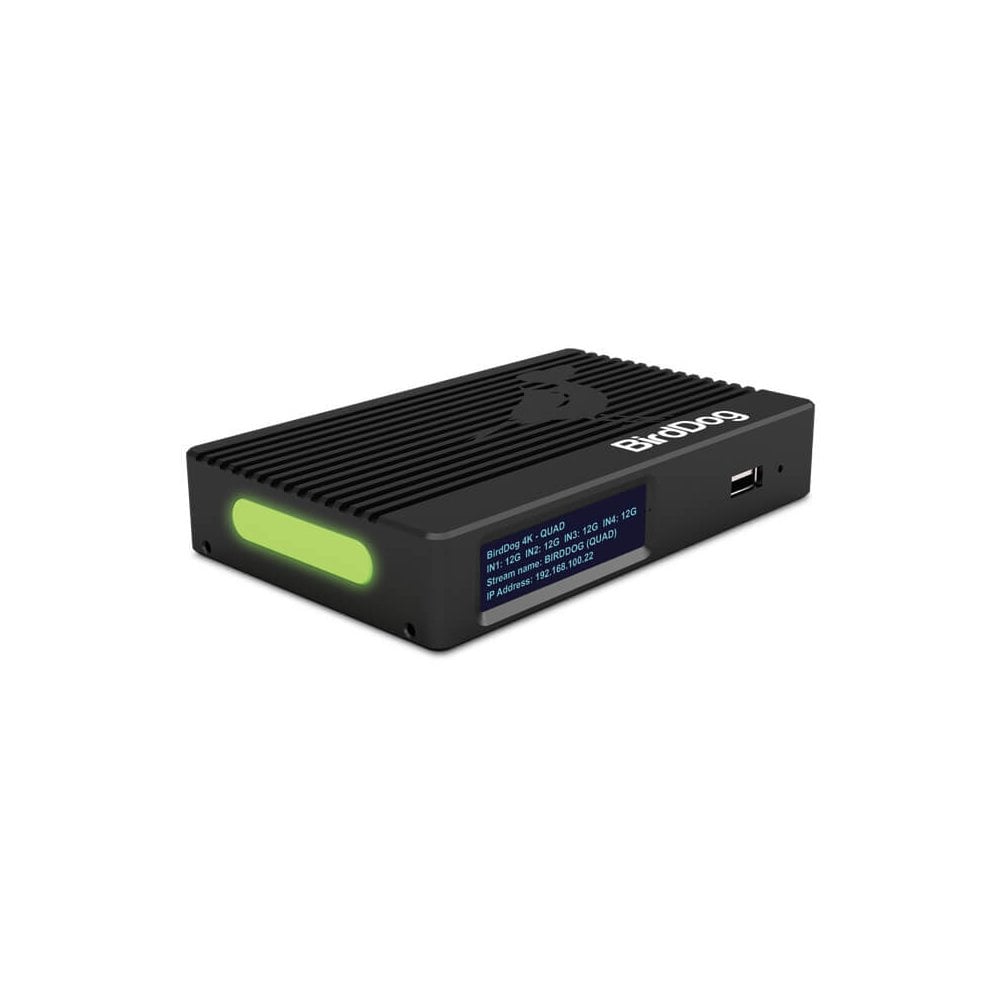

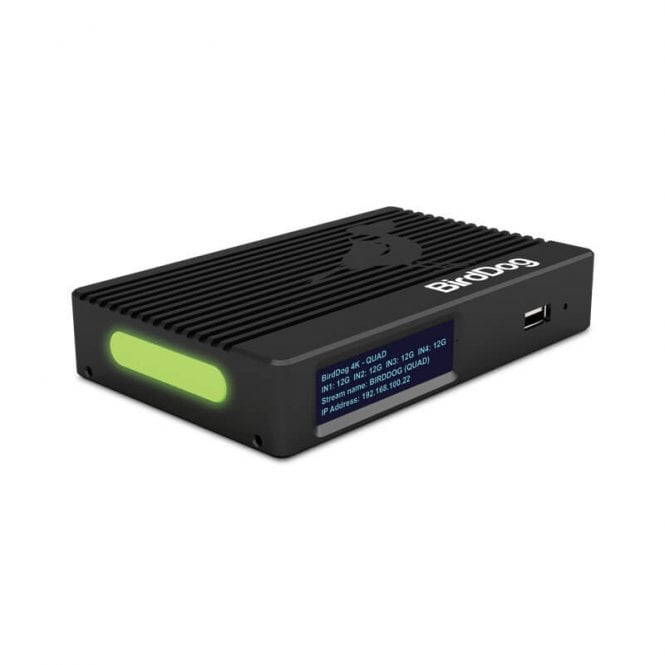

BirdDog 4K QUAD

4K QUAD, BD-4KQUAD (BD/4KQUAD, BD_4KQUAD, BD 4KQUAD, 4KQUAD)

BirdDog 4K QUAD - Four channels of 12G SDI to 4Kp60 NDI Encoding and Decoding

NEXT LEVEL NDI® TOOLS

Following on from the award winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users. Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft grade aluminium case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro apps.

ENCODE & DECODE UP TO 4KP60

With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier.

12G & HDMI 2.0 CONNECTIONS

All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations.

SFP+ FOR 10GBE & LONG RANGE

Industry standard SFP+ connection allows for short, medium, and long range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE.

* Feature coming soon with free firmware update.

NDI TALLY THAT JUST WORKS

A full Tally system is built right into the 4K Family and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to easily see which camera is live, plus user selectable Tally borders on loop out.

CROSS CONVERTER

All 4K products include a built in cross converter and of the 12G SDI inputs can be looped out the HDMI 2.0 port and any of the HDMI 2.0 inputs can be looped out the 12G SDI.

PTZ CONTROL

With the optional USB to Ethernet dongle you can control any PTZ camera that supports NDI®, NDI|HX, or Visca over IP.

ADAPTIVE BIT RATE. SLIDE YOUR WAY TO GLORY

Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes.

With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.

FREE COMMS LITE. UPGRADE TO COMMS PRO

4K Family include free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite and how to get your free copy click here.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is just $495 and you can read more about it here.

DISTRIBUTE NDI® CONTENT EVERYWHERE. JUST ADD CENTRAL

BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI, Mini or 4K Family to decode NDI® back to SDI or HDMI. For more information on Central click here.

What's in the box:

• 1x NDI Encoder/Decoder
