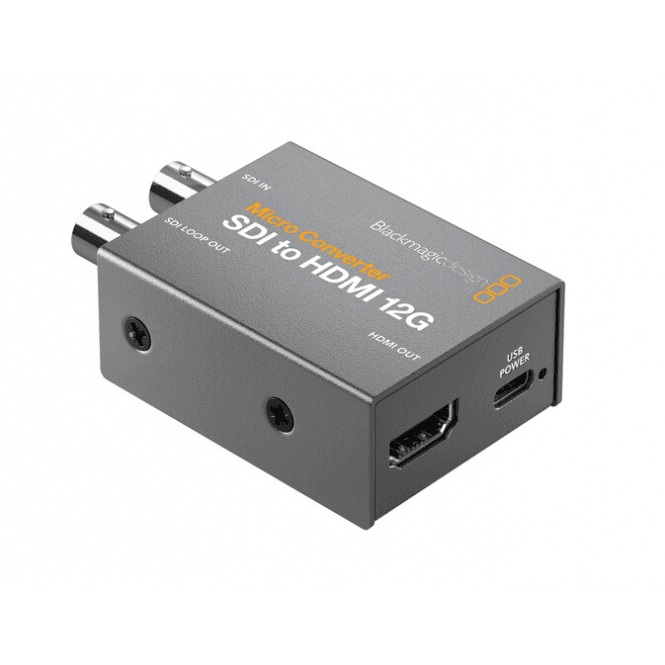

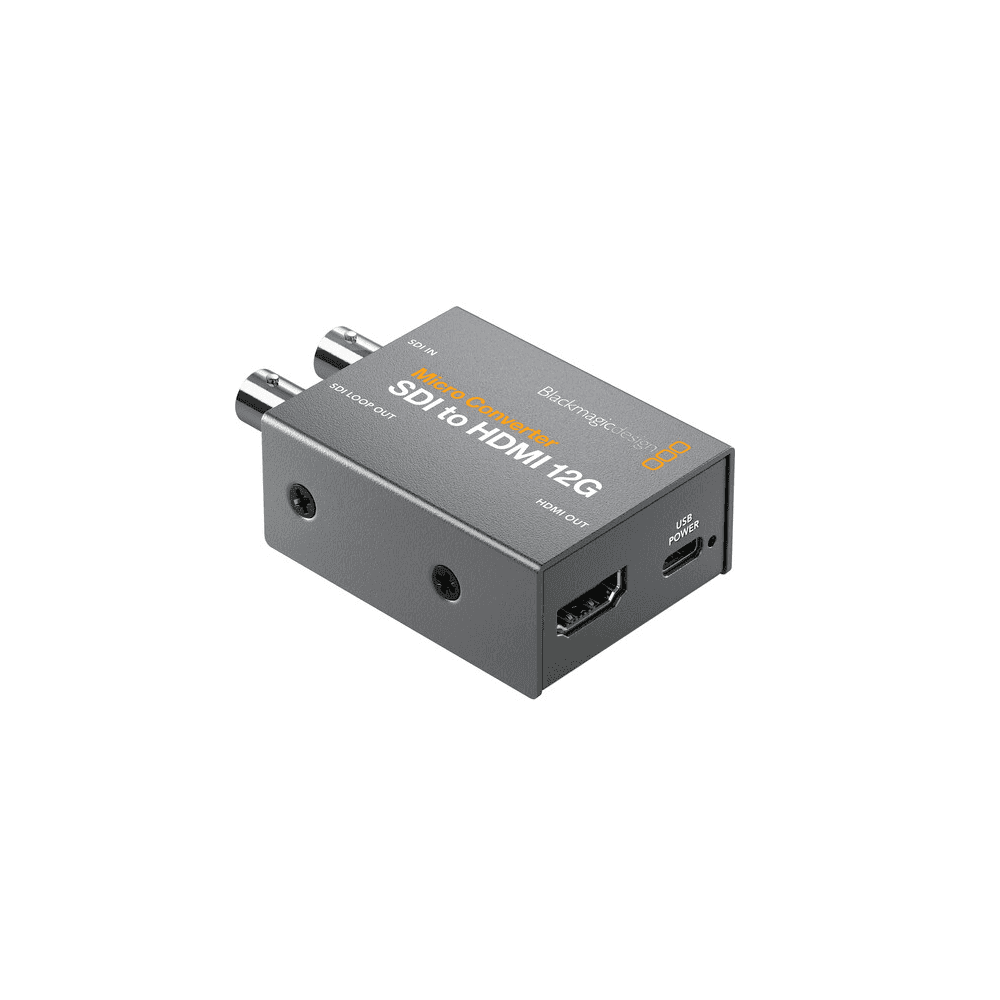

Blackmagic Micro Converter SDI to HDMI 12G with Power Supply
Sell Your Gear
warranty on this product

Blackmagic Micro Converter SDI to HDMI 12G with Power Supply

code: BMD-CONVCMIC/SH12G/WPSU
  • $157.59
  • RRP: $165.54
Availability   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features

  • 1 x 12G-SDI Input, 1 x HDMI Output
  • 1 x 12G-SDI Loop Output
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to DCI 4K60 Resolution I/O
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • Embedded Audio, USB Type-C Power
  • A Power Supply Is Included
  • LED Video & Power Signal Indicators

Blackmagic Micro Converter SDI to HDMI 12G with Power Supply (BMD-CONVCMIC/SH12G/WPSU BMD/CONVCMIC/SH12G/WPSU BMD-CONVCMIC-SH12G-WPSU BMDCONVCMICSH12GWPSU BMD CONVCMIC SH12G WPSU)

Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A power supply and an international plug adapter set is included with the converter.

Specifications

Video Input Connectors: 1 x BNC (12G-SDI / 3G-SDI) Female

Input Video Format

  • SDI (8/10-Bit 4:2:2 RGB, YUV)
  • DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • UHD 4K: 24/25/29.97/30/47.95/48/50/59.94/60 fps
  • 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • 1080i: 50/59.94/60 fps
  • 720p: 50/59.94/60 fps
  • NTSC: 29.97 fps
  • PAL: 25 fps

Audio Input Connectors: None

Embedded Audio Input: SDI

Video Output Connectors

  • 1 x HDMI (HDMI 2.0) Female
  • 1 x BNC (12G-SDI / 3G-SDI) Female (Loop Output)
Output Video Format
  • HDMI (8/10-Bit 4:2:2 RGB, YUV)
  • DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • 1080PsF: 25/29.97/30 fps
  • 1080i: 50/59.94/60 fps
  • 720p: 50/59.94/60 fps
  • NTSC: 29.97 fps
  • PAL (768 x 576): 25 fps
Audio Output Connectors: None
Embedded Audio Output: HDMI
Video Standard Compliance: SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support: Version 2.2
HDR Compatibility: Not Specified by Manufacturer
Other I/O: 1 x USB Type-C Control, Firmware Input
Expansion Slots: None
OS Compatibility
  • macOS 10.15.15 or Later
  • macOS 11.1 or Later
  • Windows 10
Power Connector: 1 x USB Type-C (4.4 to 5.2 VDC) Input
Power Consumption: Device: 4 W
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Humidity: 0 to 90% (Non-Condensing)
Dimensions: 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight: 5.29 oz / 150 g



In The Box

  • 1x Micro Converter SDI to HDMI 12G with Power Supply
Be the first to review Micro Converter SDI to HDMI 12G with Power Supply. Write a review ›
