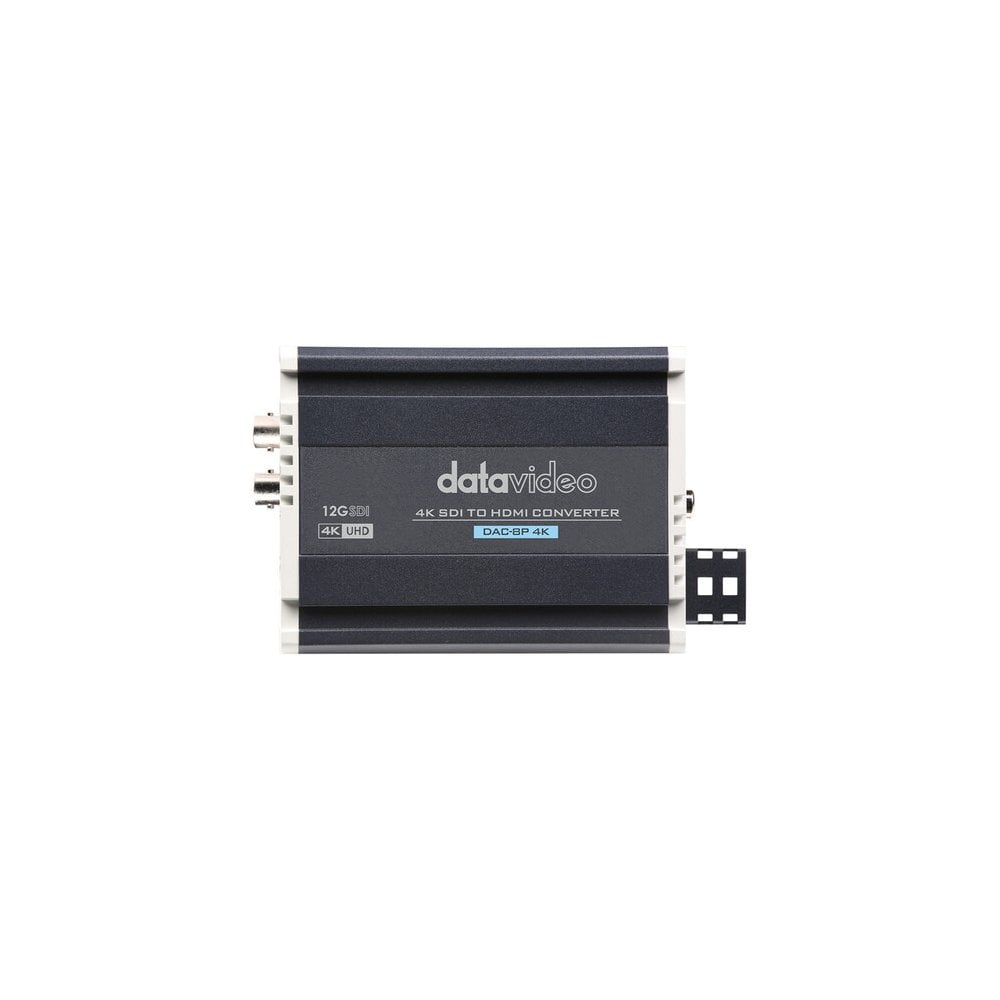

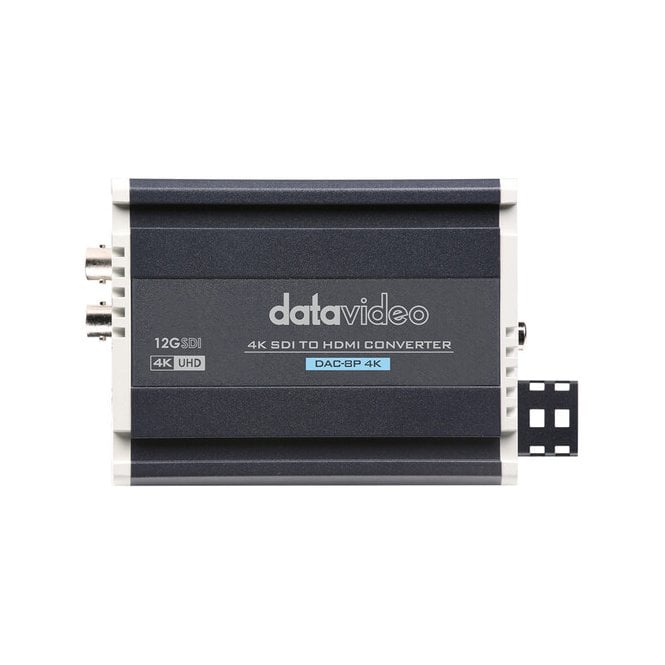

Datavideo Dac-8P 4K-Sdi to Hdmi Converter

Datavideo Dac-8P 4K-Sdi to Hdmi Converter(DATA-DAC8P4K)

The compact and rugged 4K SDI to HDMI Converter from Datavideo enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized converter supports re-clocking for stability over long cable runs and support for a wide range of pro broadcast resolutions. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port facilitates firmware updates. A power supply is included with the converter.

Conversion 12G-SDI to HDMI 2.0

Video Inputs 12G-SDI x 1

Loop Through 1

Video Outputs 1x HDMI 2.0 with embedded Audio

Audio Inputs SDI embedded audio, 24-bit, 16-channel

Audio Outputs RCA x 2 (Unbalanced Audio L/R)

HDMI embedded audio, 24-bit, 8-channel

Supported Video Input Formats 4096x2160p- 60/59.94/50/30/29.97/25/24/23.98

3840x2160p- 60/59.94/50/30/29.97/25/24/23.98

1080p-60/59.94/50/30/29.97/25/24/23.98

1080i- 60/59.94/50

720p- 60/59.94/50

Output Resolutions Automatically matches the HD, 3G and 12G SDI video input

Equalizer Yes

Reclock Yes

SDI Cable Drive Yes

Updates and Configuration USB Type C x 1

Dimension (LxWxH) 112 x 85 x 45 mm

Weight 0.3 kg

Operating Temp. Range 0~40 °C

Power DC 12V, 8.64W

In the Box

Datavideo 4K SDI to HDMI Converter

12 VDC Power Supply
