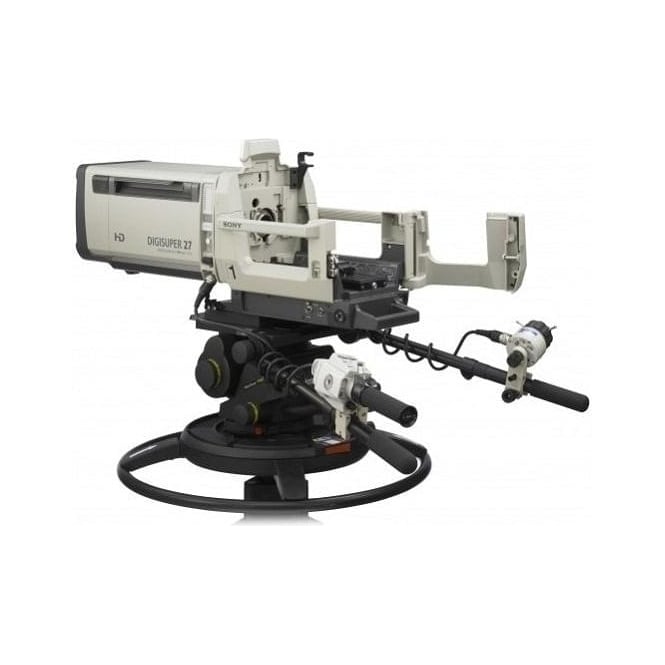

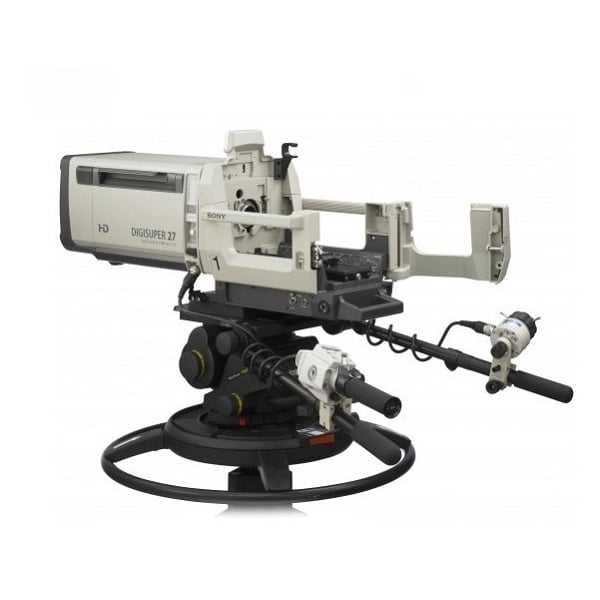

Sony Large Lens Adapter HD Cam for LCD Viewfinders (white)

code: HDLA-1505
  • £11,880.19
  • RRP: £13,062.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Easy to attach & use
  • New low profile design
  • Lower viewfinder height
  • Direct docking mechanism

Sony HDLA-1505 (HDLA1505, HDLA/1505, hdla-1505) Large Lens Adapter HD Cam for LCD Viewfinders (white)

The HDLA-1505 allows operation of the HDC-1500 HD portable camera or HDC-3300 SuperMotion camera together with large studio/OB lenses and LCD viewfinders. Unlike traditional lens "build-up kits", the HDLA-1505 provides a very simple one-touch cable-free mounting of the camera so that it can be quickly and easily converted from hand-held to tripod configuration.

Note: The HDLA-1505 is finished in a pale grey body colour, the same as the HDC-1000 studio camera. If required, a dark coloured version, is also available.

One-touch instant docking mechanism

  • The camera can be fitted quickly and easily into the adaptor. This unique mechanism allows the HDC-1500 to be attached and detached without removing the large lens.

Quick mounting for portable camera head

  • To provide efficient operation in studio or OB environments, the large lens adaptor has a unique design which allows the camera to be converted from hand-held to large lens configuration in just a few seconds.

Cable-free operation with all connections contained in "hot shoe" mounting

  • Utilizing a newly developed interlocking mechanism, power, video, and control signals are passed on directly from the HDC-1500 to the HDLA-1505, without requiring additional cable connections.
  • Note that the HDVF-C730W viewfinder does require a conventional cable connection

Built-in teleprompter power supply

  • Utility power (200-240V AC) is available from the large lens adaptor, when used in conjunction with the HDCU-1000 camera control unit

Same handling characteristic as full size camera

  • All the control features and functionality traditionally associated with full size cameras are provided in this efficient operational package.

Compatible with HDVF-C730W colour LCD viewfinder

  • The HDLA-1505 is specifically designed to allow the HDVF-C730W to be mounted on the rear of the camera body. The 7" CRT viewfinder, HDVF-700A, cannot be used with this lens adaptor
  • Compatible with HDVF-C730W colour LCD viewfinder

In the box

  • Sony HDLA-1505 HD Large Lens Adaptor
