Sony TM TS Adapter

code: HDCA-702
  • £3,851.97
  • RRP: £4,246.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Add-on for Sony XDCAM Cameras
  • Allows transmission over DVB-ASI
  • Encodes video to MPEG-2
  • Ideal for transmitting news & sports
  • Easy to attach and use
  • Enhances workflow flexibility

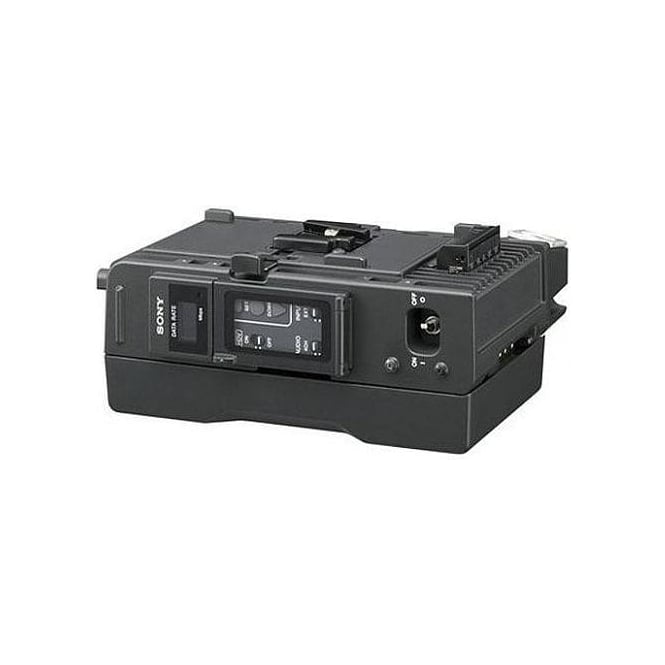

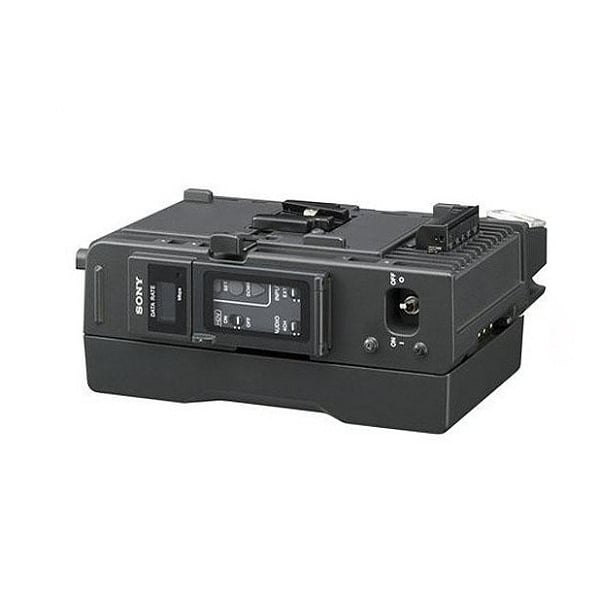

Sony HDCA-702 (HDCA702, HDCA/702, hdca-702) TM TS Adapter

The HDCA-702 MPEG TS Adaptor is a unique new product which enhance a workflow flexibility with various interfaces in an ultra-compact design. It provides real-time encoding of HD-SDI input signals into an MPEG TS for output via a DVB-ASI connector. One of this adaptor's applications is field news gathering, using microwave and satellite transmission. The HDCA-702 encodes camcorder output signals to MPEG TS and outputs this stream via its DVB-ASI connector at the same time the camcorder is recording. The adaptor also supports output of HDV compatible MPEG streams from i.LINK connector to use with HDV-compatible HDD units and nonlinear editing systems.

  • MPEG Transport Stream camera adapter for Sony camcorders with V-shoe mount
  • The HDCA-702 can be docked to Sony's camcorders without cables through the use of the camcorder's 50-pin interface. Other Sony camcorders without 50-pin interface can be connected via the HD-SDI.
  • HD-SDI input can be used to connect other non-Sony devices to the HDCA-702
  • Input will automatically switched if a 1080i or 720p signal is received
  • The transport stream bitrate can be independently set to enable the deck to output a lower data rate transport stream over DVB-ASI while recording the highest quality video on disc or SxS card
  • Outputs a 4:2:0 MP@HL MPEG-2 stream at video data rates starting from 15 - 43.25 Mbps
  • In 1080i mode, a 1440x1080 resolution stream will be output when the video bitrate is set to less than 35 Mbps. At video bitrates 35 Mbps or above, a 1920x1080 resolution may be selected
  • Program/Service number, Video, Audio, and PMT PIDs can be configured for use in multiprogram transport stream applications
  • MPEG transport stream can be output via the HDCA-702 DVB-ASI (BNC) interface or as a 25 Mbps CBR HDV stream over the 6-pin i.LINK interface
  • Format: DVB-ASI: MPEG-2 MP@HL, i.LINK: MPEG-2 MP@H-14
  • Inputs/Outputs: HD-SDI: BNC (x1 Input), Loop-Through: BNC (x1 Output), DVB-ASI: BNC (x1 Output), i.LINK: 6-Pin FireWire
  • Power Requirements: 12VDC
  • Power Consumption: 6W
  • Dimensions (WxHxD): 5.75 x 7.4 x 3.4" (14.3 x 18.5 x 8.4cm)
  • Weight: 1.6 lbs (0.7kg)



In the box

  • Sony HDCA-702 TM TS Adapter
  • Operation Manual
  • Holder
  • Fixing Bracket
