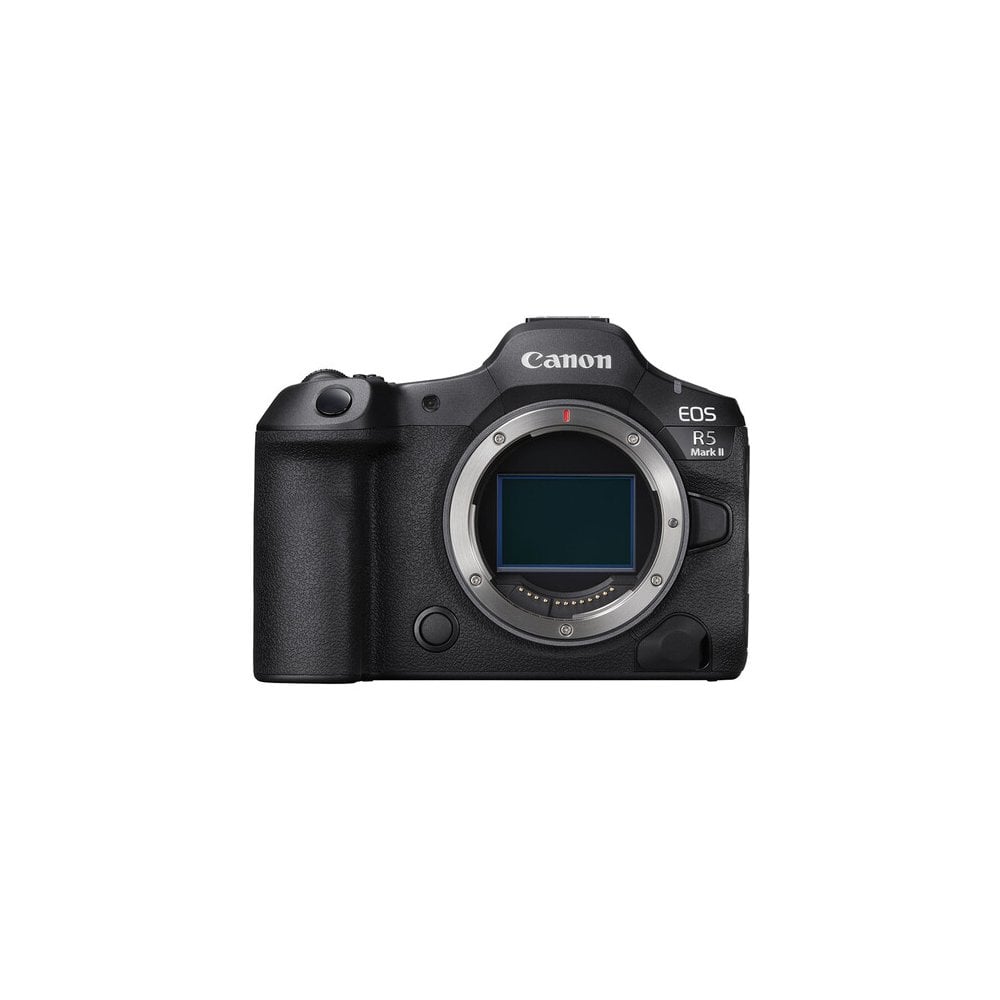

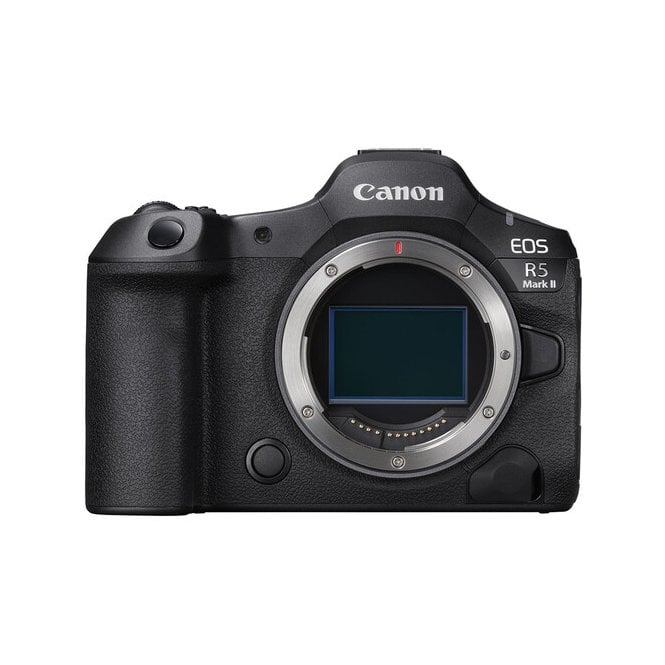

Canon EOS R5 Mark II

Master the moment with incredible speed, resolution and all-round performance

Experience incredible 45-megapixel resolution combined with blazing-fast speeds of up to 30fps and up to 8K 60p RAW video. This powerhouse excels in every genre of visual storytelling. Powered by DIGIC Accelerator technology, it features Dual Pixel Intelligent AF, next-generation Eye Control AF, and Action Priority mode. With a maximum ISO sensitivity of 51,200 (expandable to 102,400) and in-camera Neural Network noise reduction, you’ll achieve outstanding results even in low light. Plus, this highly connected camera allows you to deliver content quickly and reliably. The EOS R5 Mark II truly does it all, empowering you to conquer your creative ambitions.

For photographers and filmmakers across genres—from wildlife and reportage to portraiture, filmmaking, interviews, and documentaries—the EOS R5 Mark II is the tool that will help you create your best work yet.

DIGIC Accelerator meets DIGIC X for unparalleled performance

The EOS R5 Mark II’s Dual Pixel Intelligent AF and Eye Control AF raise the bar for autofocus technology. It keeps fast-moving subjects in sharp focus, even when temporarily out of view. Action Priority mode tracks players in sports like football, basketball, and volleyball, adjusting the AF area in real-time to capture critical moments, such as a shot on goal from a fast pass.

Where speed meets resolution

No matter your creative vision, the EOS R5 Mark II delivers. Capture stunning 45-megapixel photos at 30fps with 15-frame Pre-Capture, or record impressive 8K 60p RAW video. Whatever your needs, this camera opens new possibilities for creativity.

Switch to hybrid mode

Shoot breathtaking 8K video using the full width of the EOS R5 Mark II’s sensor—perfect for cropping in post-production. The 8K 60p Light RAW format captures smooth motion, while 14-bit color depth ensures rich gradation and a wide dynamic range. Thanks to Dual Shooting, you can simultaneously capture 33.2-megapixel (16:9) stills at 7.5fps while recording Full HD video.

Fast connectivity when it matters most

Whether through Wi-Fi 6E1 or a tethered USB connection, you can quickly and reliably deliver your work to clients. An optional battery grip adds 2.5G BASE-T Ethernet for even faster connections.

Advanced technology for powerful performance

Packed with cutting-edge technology, including Canon’s revolutionary RF lens mount, the EOS R5 Mark II pushes creative boundaries. Its 8.5-stop Image Stabilizer lets you shoot handheld at slow shutter speeds, while customizable controls allow you to fine-tune the camera to your needs. All this is housed in a robust, agile design that inspires creativity from the moment you pick it up.

Next-generation 45-megapixel stacked image sensor

A new full-frame, back-illuminated stacked CMOS sensor delivers impressive resolution, dynamic range, and speed, with advanced video capabilities. Maximum ISO sensitivity of 51,200 (expandable to 102,400) is paired with in-camera neural network noise reduction for cleaner, more detailed JPEG images.

DIGIC Accelerator

The EOS R5 Mark II’s DIGIC Accelerator and DIGIC X processors work together to deliver exceptional performance. The system improves AF tracking of people, animals, and objects—even when briefly obscured. Action Priority mode intelligently anticipates key moments in sports like football, basketball, and volleyball, automatically adjusting the AF point.

Simultaneous still and video capture

Thanks to the power of the DIGIC Accelerator, you can capture high-quality stills and video simultaneously, processing large volumes of data with ease.

In-camera upscaling and deep learning

Harness deep-learning technology for in-camera upscaling, allowing images to be enlarged up to four times for high-resolution prints or cropping. This same technology also delivers remarkable noise reduction, resulting in smooth, detailed images even at high ISO sensitivities.

Action Priority Focus Mode

When using the EOS R5 Mark II’s advanced electronic shutter, the DIGIC Accelerator processor identifies critical moments in sports like football, basketball, and volleyball, automatically adjusting the AF area to capture decisive actions such as a shot made from a high-speed pass.

Next-Generation Eye Control AF

Choose your focus point or subject simply by looking at it. Enhanced optics and a refined line-of-sight algorithm make Eye Control AF even more accurate than in the EOS R3, and its broader field of effectiveness provides a more intuitive experience.

Pre-continuous shooting

The EOS R5 Mark II buffers 15 frames while the shutter release is half-pressed, storing them when you fully press the shutter. This ensures you capture moments even before you press the button. Slower shooting speeds increase the pre-capture time, giving you even more flexibility.

IMAGE SENSOR

Type 36 x 24 mm Full Frame back- illuminated stacked CMOS sensor

Effective Pixels Approx. 45 megapixels

Total Pixels Approx. 50.3 megapixels

Aspect Ratio 3:2

Low-Pass Filter Built-in/Fixed

Sensor Cleaning EOS integrated cleaning system

Colour Filter Type RGB Primary Colour

Sensor Shift-IS Yes, up to 8.5-Stops advantage at the center and 7.5-stops peripheral depending on the lens used1

IMAGE PROCESSOR

Type DIGIC Accelerator and DIGIC X

LENS

Lens Mount RF / RF-S

EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R

EF-M lenses are not compatible

Focal Length Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S and RF-S lenses.

IMAGE STABILISATION

FOCUSING

Type Dual Pixel Intelligent AF

AF System/Points 100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes2

100% horizontal and 90% vertical with manual selection and large zone modes

AF Working Range EV -6.5 – 21 (at 23°C & ISO100)3

AF Modes One Shot, Servo AF, AI Focus AF (in A+ Scene Intelligent Auto mode )

AF METHODS

AF Point Selection Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected

Manual selection: Spot AF

Manual selection: 1-point AF (AF frame size can be changed) 5850 (stills)/ (4500) movie AF positions available

Manual selection: AF point Expansion 4 points (up, down, left, right)

Manual selection: AF point Expansion surrounding

Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones, where the width and hight is also adjustable)

Manual selection: Whole area AF

Manual selection: Spot AF (Whole area tracking servo AF OFF)

Manual selection: 1-point AF (Whole area tracking servo AF OFF)

Manual selection: AF point Expansion 4 points (up, down, left, right) (Whole area tracking servo AF OFF)

Manual selection: AF point Expansion surrounding (Whole area tracking servo AF OFF)

AF Tracking Humans (Eyes, Face, Head, Upper half of body, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles (Racing cars or Motor bikes, Airplanes and Trains), Register People Priority (up to 10 x 10 registered people), Action Priority4 (Football, Basketball, Volleyball)

Supported actions

Soccer: Shoot, header, short pass, long pass, dribble, clear, place kick, save by keeper, throw in, sliding tackle

Basketball: Shoot, rebound, pass, dribble, free throw, jump ball

Volleyball: Spike, toss, receive, serve

AF Lock Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo

AF Assist Beam Emitted by built in LED or optional dedicated Speedlite (flash)

Manual Focus Selected on lens

EXPOSURE CONTROL

Metering Modes Real-time with image sensor, 6144-zone metering.

(1) Evaluative metering (linked to All AF points)

(2) Partial metering (Approx. 9.5% of screen at centre)

(3) Spot metering: Centre spot metering (Approx. 5.3% screen at centre) AF point-linked spot metering not provided

(4) Centre weighted average metering

Metering Brightness Range EV -3 – 20 (at 23°C, ISO100, with evaluative metering)

AE LOCK

Auto AE lock takes effect when focus is achieved

Manual By AE lock button in P, Av, Fv, Tv and M modes

Exposure Compensation +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)

AEB +/-3 EV in 1/3 or 1/2 stop increments

Anti-Flicker Shooting Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter

High Frequency anti flicker shooting for M and TV modes

Electronic 1st-curtain: 1/50.0 to 1/2048.0 sec.

Electronic shutter: 1/50.0 to 1/8192.0 sec.

Movie recording: 1/50.0 to 1/8192.0 sec. (NTSC/PAL)

Maximum continuous shooting speed may decrease.

ISO Sensitivity Auto 100-51200 (in 1/3- stop or 1 stop increments)

ISO can be expanded to L:50, H1:1024005

SHUTTER

Type Electronically-controlled focal-plane shutter and Electronic shutter function on sensor

Speed 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Shutter Release Soft touch electromagnetic release

WHITE BALANCE

Type Auto white balance with the imaging sensor supported by deep learning technology

AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting

Settings White balance compensation:

1 Blue/Amber +/-9

2 Magenta/Green +/-9

SHIFT

Custom White Balance Yes, 5 setting can be registered

WB Bracketing +/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release

Selectable Blue/Amber bias or Magenta/Green bias

VIEWFINDER

Type 0.5-inch OLED colour EVF

Dot Count 5.76 Million dots (1600x1200)

Coverage (Vertical/Horizontal) Approx. 100%

Magnification Approx. 0.76x6

Eyepoint Approx. 24mm (from eyepiece lens centre)

Dioptre Correction -4 to +2 m-1 (dioptre)

Display performance Power saving: 59.94 fps Smooth 119.98 fps , supress low frame rate 60 -119.8fps7 (7 level of brightness)

LCD MONITOR

Type 8.0 cm (3.2") TFT colour LCD, Approx. 2.1 million dots

Coverage Approx. 100%

Viewing Angle Horizontally/Vertically Approx. 170° vertically and horizontally

Coating Anti-smudge.

Brightness Adjustment Manual: Adjustable to one of seven levels

Colour Tone Adjustment: 4 settings

Touch-Screen Operations Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.

Display Options (1) Basic Camera settings

(2) Advance Camera settings

(3) Camera settings plus histogram and dual level display

(4) No info

(5) Quick Control Screen

(6) Off

FLASH

Built-in Flash GN (ISO 100, meters)

Built-in Flash Coverage

Built-in Flash Recycle Time

Modes E-TTL II flash metering, Manual flash, MULTI flash (stroboscopic), Auto external flash metering, Manual external flash metering

X-Sync When [Cropping/aspect ratio: Full- frame/1:1/4:3/16:9] is set: 1/200 sec mechanical shutter / 1/250 electronic 1st curtain, 1/160 sec

Electronic shutter

When [Cropping/aspect ratio: 1.6x (crop)] is set: 1/250 sec mechanical shutter / 1/320 electronic 1st curtain, 1/250 sec Electronic shutter8

Flash Exposure Compensation +/- 3EV in 1/3 increments with EX and EL series Speedlite flashes

Flash Exposure Bracketing +/- 3EV in 1/3 increments with EX and EL series Speedlite flashes

Flash Exposure Lock Yes

Second Curtain Synchronisation Yes, via Speedlite

Hot Shoe/PC Terminal Yes/Yes and Multi- function shoe

External Flash Compatibility EL series Speedlites, EX series Speedlites, Macrolites, Wireless multi-flash support

External Flash Control via camera menu screen

SHOOTING

Modes Stills; Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)

Movie: Program AE, Shutter priority AE, Aperture priority AE, Manual, and Custom (x3)

Picture Styles Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space SDR: sRGB and Adobe RGB HDR PQ: BT.2020

Highlight Tone Priority (3 settings)

Auto Lighting Optimizer (4 settings)

Long exposure noise reduction (3 settings) (still only)

Clarity

High ISO speed noise reduction (4 settings) (still and video)

Lens optical correction Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)

Focus breathing correction(during video only)

Diffraction correction,

Digital Lens Optimizer (during/after still photo shooting)

Image Processing Resize to M, S1, S2

Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)

Cropping of images Switch between vertical and horizontal cropping orientation

Image straightening

Cropping frame can be moved using touch screen operation

Neural Network Upscaling

RAW image processing

Neural Network Noise Reduction

Multiple exposure

HDR

HEIF to Jpeg conversion (inc Batch conversion)

Focus Bracketing and in camera composition

Drive Modes Single, Continuous High+, Continuous High, Continuous Low, Customisable Continuous shooting speeds, Self-timer (2s+remote,

10S+REMOTE, CONTINUOUS)

Continuous Shooting Max. Approx. 12 fps. with Mechanical shutter/1st curtain electronic speed maintained for 760 JPEG or 230/95(CFexpress/SD card) RAW images or 30 FPS with electronic shutter speed maintained for 200 JPEG or 93/86(CFexpress/SD card) RAW images9.

Custom Continuous shooting speed with Electronic shutter selectable options 30 / 20 / 15 / 12 / 10 / 7.5 / 5 / 3 / 2 / 1 FPS depending on the drive mode.

Pre-Continuous shooting is possible from 15 shots before the shutter button is fully pressed when the AF is on for 15 shots or more.

Interval Timer Built in

FILE TYPE – STILLS

Still Image Type RAW 14 bit: RAW and C- RAW (Canon original RAW 3rd edition)

JPEG 8 bit: 10 compression options

HEIF 10 bit: 10 compression options

Complies with Exif 2.31 and Design rule for Camera File system 2.0

Complies with Digital Print Order Format [DPOF] Version 1.1

RAW+JPEG/HEIF Simultaneous Recording Yes, any combination of RAW + JPEG or RAW + HEIF possible

Image Size RAW/ C-RAW:

3:2 ratio 8192x5464, 1.6x (crop) 5088x3392

JPEG/ HEIF

3:2 ratio (L, RAW, C-RAW) 8192x5464, (M) 6000x4000, (S1) 4176x2784, (S2) 2400x1600

1.6x (crop) (L) 5088x3392, (S2) 2400x1600

4:3 ratio (L) 7280x5464, (M) 5328x4000, (S1) 3712x2784, (S2) 2112x1600

16:9 ratio (L) 8192x4608, (M) 6000x3368, (S1) 4176x2344, (S2) 2400x1344

1:1 ratio (L) 5456x5456, (M) 4000x4000, (S1) 2784x2784, (S2) 1600x1600

In-camera Neural Network Upscaling up to 16384x10928 (179MP)10

Folders New folders can be manually created, named and selected

Movie folder structure is adopting the XF- HEVC S / XF-AVC S format

File Numbering (1) Consecutive numbering

(2) Auto-reset

(3) Manual reset

File Naming Still

Preset code Unique 4-digit character string + 4-digit file number

2 User Presets

Movie Adopting the XF-HEVC S / XF-AVC S format

Camera index, Reel number, Clip number, Codec type, Shooting start date, Shooting start time, Random ID, User defined 5 characters, Stream number, (Proxy)

EOS MOVIE

Movie Type RAW/SRAW Video: 8K DCI(17:9) / 4K DCI(17:9)11

MP4 Video: 8K DCI/UHD (17:9/16:9) 4K DCI/UHD (17:9/16:9), 2K/Full HD (17:9/16:9)

8K/4K/2K/Full HD: XF-HEVC S/H.265, Audio: Linear PCM / AAC

4K/2K/Full HD: MPEG-4 AVC S/H.264, Audio: Linear PCM / AAC

8K RAW 4K RAW: 12bit CRM Audio: Linear PCM / AAC

8K/4K/FullHD Time-lapse movie mode

Movie Size RAW (Light) (17:9) 8192 x 4320 (59.94, 50, 29.97, 25, 24, 23.98 fps)

RAW (Standard) (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps)

SRAW (Standard, Light) (17:9) 4096 x 2160 (59.94, 50, 29.97, 25, 24, 23.98 fps)

8K DCI (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) 2-3 type of intra or Long GOP

8K UHD (16:9) 7680 x 4320 (29.97, 25, 23.98 fps) 2-3 type of intra or Long GOP

4K DCI (17:9) 4096 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) 3 type of intra or Long GOP

4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) 3 type of intra or Long GOP

2K DCI (17:9) 2048 x 1080 (239.76, 200, 119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) Intra frame or Long GOP

Full HD (16:9) 1920 x 1080 (239.76, 200, 119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) Intra frame or Long GOP

HDR movie recording at up to 59.94p in Normal modes of 4K DCI/UHD, 2K DCI/UHD, Full HD

HDR movie recording at up to 29.97p in Fine modes of 4K DCI/UHD, 2K DCI/UHD, Full HD12

Colour Sampling (Internal recording) 8K/ 4K/ 2K/ Full HD - YCbCr4:2:0 or YCbCr4:2:2 8-bit or 10bit

Canon Log Custom Picture:

C1: Canon 709

C2: Canon Log 2

C3: Canon Log 3

C4: PQ

C5: HLG

C6: BT.709 Standard

C7 - C20: User Defined

Picture Styles: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

Movie Length Max duration 6 hours. (excluding High Frame Rate movies). No 4 GB file limit with exFAT formatted card13.

High Frame Rate Movie MP4 Video:

4K – DCI 4096x2160 / UHD 3840x2160 at 119.9 / 100 fps

2K – DCI 4096x2160 / UHD 3840x2160 at 239.76 / 200 / 119.9 / 100 fps

Full HD 1920 x1080 at 239.76 / 200 / 119.9 / 100 fps14

Frame Grab 35.4-megapixel JPEG still image frame grab from 8K DCI movie possible

33.2-megapixel JPEG still image frame grab from 8K UHD movie possible

8.8-megapixel JPEG still image frame grab from 4K DCI movie possible

8.3-megapixel JPEG still image frame grab from 4K UHD movie possible

(HEIF only possible when HDR PQ is set)15

Dual Shooting (Still & Movie):

Movie Output Main recording format: XF- AVC S YCC420 8bit

Movie recording size: Full HD (Normal) at 29.97p / 25p (LGOP)

Drive mode (JPEG only at the resolution of 8K(7680×4320) and Aspect ratio: Approx. 16:9):

High speed (Max. approx. 7.5 shots/sec. (NTSC), Max. approx. 6.2 shots/sec. (PAL))

Low speed (Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL))



Bitrate/Mbps CRM:

8K RAW Standard (29.97p/25.00p/24.00p/23.98p): Approx. 2600 Mbps

8K RAW Light (59.94p/50.00p): Approx. 2600 Mbps

8K RAW Light (29.97p): Approx. 1670 Mbps

8K RAW Light (25p): Approx. 1400 Mbps

8K RAW Light (24.00p/23.98p): Approx. 1340 Mbps

4K SRAW Standard (59.94p): Approx. 1860 Mbps

4K SRAW Standard (50p): Approx. 1550 Mbps

4K SRAW Standard (29.97p): Approx. 930 Mbps

4K SRAW Standard (25.00p/24.00p/23.98p): Approx. 780 Mbps

4K SRAW Light (59.94p): Approx. 840 Mbps

4K SRAW Light (50p): Approx. 700 Mbps

4K SRAW Light (29.97p): Approx. 420 Mbps

4K SRAW Light (25.00p/24.00p/23.98p): Approx. 350 Mbps

MP4 8K DCI/UHD Normal:

XF-HEVC S YCC422 10bit

High Quality Intra 24p / 23.98p: Approx. 1920 Mbps

Standard Intra 25p: Approx. 1500 Mbps

Light Intra 25p: Approx. 1000 Mbps

Standard LGOP 25p: Approx. 540 Mbps

XF-HEVC S YCC420 10bit Standard LGOP

29.97p/25.00p/24.00p/23.98p: Approx. 400 Mbps

MP4 4K DCI/UHD Fine / Normal (Oversampled from 8K / Not oversampled):

XF-HEVC S YCC422 10bit Standard LGOP

29.97p/25.00p/24.00p/23.98p: Approx. 135 Mbps

XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP

29.97p/25.00p/24.00p/23.98p: Approx. 100 Mbps

XF-AVC S YCC422 10bit

High Quality Intra 25p: Approx. 500 Mbps

Standard Intra 25p: Approx. 375 Mbps

Light Intra 25p: Approx. 250 Mbps

Standard LGOP 29.97p/25.00p/24.00p/23.98p: Approx. 150 Mbps

MP4 4K DCI/UHD Normal (Not oversampled):

XF-HEVC S YCC422 10bit Standard LGOP

119.9p / 100p: Approx. 450 Mbps

59.94p/50.00p: Approx. 225 Mbps

XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP

119.9p / 100p: Approx. 300 Mbps

59.94p/50.00p: Approx. 150 Mbps

XF-AVC S YCC422 10bit

High Quality Intra 50p: Approx. 1000 Mbps

Standard Intra 100p: Approx. 1500 Mbps

Standard Intra 50p: Approx. 750 Mbps

Light Intra 100p: Approx. 1000 Mbps

Light Intra 50p: Approx. 500 Mbps

Standard LGOP 100p: Approx. 500 Mbps

Standard LGOP 50p: Approx. 250 Mbps

MP4 2K DCI / FullHD Fine / Normal (Oversampled from 4K / Not oversampled):

XF-HEVC S YCC422 10bit Standard LGOP

59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 50 Mbps

XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP

59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 35 Mbps

XF-AVC S YCC422 10bit

Standard Intra 25p/50p: Approx. 125/250 Mbps

Standard LGOP 59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 50 Mbps

MP4 2K DCI/UHD Normal (Not oversampled):

XF-HEVC S YCC422 10bit Standard LGOP

239.76p / 200p: Approx. 200 Mbps

119.88p / 100p: Approx. 100 Mbps

XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP

239.76p / 200p: Approx. 140 Mbps

119.88p / 100p: Approx. 70 Mbps

XF-AVC S YCC422 10bit

Standard Intra 200p: Approx. 1000 Mbps

Standard Intra 100p: Approx. 500 Mbps

Standard LGOP 200p: Approx. 200 Mbps

Standard LGOP 100p: Approx. 100 Mbps

Proxy movie (2K-DCI Normal / Full HD Normal)

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 16 Mbps

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Light LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 9 Mbps

Dual Card recording Yes (including Proxy recording)

Microphone Built-in mono microphone (48 Khz, 24/16-bit x 2 channels)

Audio format LPCM / 24 bit / 4CH

AAC / 16 bit / 2CH

HDMI Display Output to external monitor only (output of images and shooting information, images are recorded to the card)

Camera screen and External Monitor output (Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)17

HDMI Output 8K RAW or 4K SRAW ProRes recording via HDMI18

4K (DCI) 59.94p / 50p/29.97p /25p/24p/ 23.98p,

4K (UHD) 59.94p / 50p/ 29.97p / 25p / 23.98p,

Full HD 59.94p / 60i / 59.94i / 50p / 50i

480p 59.94p

576p 50p

Uncompressed YCbCr 4:2:2, 10-bit, sound output via HDMI is also possible“

Focusing Dual Pixel Intelligent AF with Eye/Face Detection and Tracking AF (people, animals and vehicles) , Movie Servo AF, Manual Focus

ISO Auto: 100-25600, H: up to 51200 (when custom picture is off)

Manual: 100-25600, H: up to 51200 (when custom picture is off)

OTHER FEATURES

NETWORK OPTIONS Communication functions

Via Wi-Fi: FTP, FTPS, SFTP, EOS Utility, image.canon, Sync time between cameras, Camera Connect, Streaming services, Content Transfer

Professional, Linked shooting, Camera Control API

Via Bluetooth: Camera Connect, BR-E1

Via USB: EOS Utility, Camera Connect, Content Transfer Professional, Video calls/streaming (UVC/UAC)

Via Ethernet: FTP, FTPS, SFTP, EOS Utility, Sync time between cameras, Camera Control API

Simultaneous use of communication functions FTP (wireless LAN) + EOS Utility (wireless LAN)

FTP (wired LAN) + EOS Utility (wired LAN)

FTP (wireless LAN) + EOS Utility (USB)

FTP (wired LAN) + EOS Utility (USB)

Metadata Tag User copyright information (can be set in camera)

Image rating (0-5 stars)

IPTC data (registered with EOS Utility)

IPTC data (via CTP app)

IPTC IIM (via CTP app)

NewsML-G2 (News Metadata) (via CTP app)

Image transfer with caption (Caption registered with EOS Utility)

Blur/Out-of-Focus image detection data19

LCD Panel/Illumination Yes/Yes

Water/Dust Resistance Yes 20

Voice Memo Yes

Intelligent Orientation Sensor Yes

Playback Zoom 1.5x - 10x in 15 steps / on high resolution image (Upscaled image): 1.5x to 35x (22 levels)

Display Formats (1) Single image

2) Single image with information (2 levels)

Basic - Shooting information (shutter speed, aperture, ISO and Image quality)

Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information,

Brightness and RGB histogram, Waveform monitor(movie mode only), White balance, Picture Style, Colour space and noise reduction, Lens optical correction, GPS information, IPTC information

(3) 4 image index

(4) 9 image index

(5) 36 image index

(6) 100 image index

(7) Jump Display (1, 10 or 100 images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating)

(8) Movie edit

(9) RAW processing

(10) Rating

Slide Show Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating

Playback time: 1/2/3/5/10 or 20 seconds

Repeat: On/Off

Histogram Brightness: Yes RGB: Yes

Highlight Alert Yes

Image Erase Select and erase images / Select range / All images in folder / All images on card / All found images (only during image search),

IMAGES TRANSMITTED VIA FTP

Image Erase Protection Erase protection of Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images (only during image search)

Self Timer 2 or 10 sec.

Firmware Update Update possible by the user using Camera Connect app or EOS Utility (Camera, Lens, External Speedlite, BLE remote control, Lens adapter, Power zoom adapter, multi- function shoe compatible accessories)

INTERFACE

Computer SuperSpeed Plus USB 3.2 Gen 2 USB Type-C® connector

Wi-Fi Wireless LAN (IEEE 802.11ax 2×2 MIMO) (6 GHz / 5 GHz / 2.4 GHz)21, with Bluetooth 5.3 support

Other HDMI out (Type A, HDMI-CEC not supported), RJ-45 Ethernet terminal for 2.5 GBASE-T wired LAN, External Microphone In (Stereo mini ), Headphone socket (Stereo mini jack), N3- type terminal (remote control terminal), PC Sync terminal.

GPS GPS satellites (American)

GLONASS satellites (Russian)

MICHIBIKI Quasi-Zenith Satellites (Japanese)

STORAGE

Type 1x CFexpress type B maximum capacity 2TB (compatible with CFexpress 2.0 and VPG400)

1x SD/SDHC/SDXC and UHS-II

SUPPORTED OPERATING SYSTEM

PC Windows 10 and Windows 11 (tablet mode not supported)

Macintosh macOS 12 / 13 /14

SOFTWARE

Image Processing Digital Photo Professional 4.19.10 or later

Digital Photo Professional Express mobile app 1.10.10 or later (iOS only)

Other EOS Utility 3.18.10 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app 3.2.10 or later (iOS/Android), Content Transfer Professional app (iOS/Android).

POWER SOURCE

Batteries Rechargeable Li-ion Battery LP-E6P (supplied)22

Battery Life With LCD Approx. 630 shots (at 23°C)23

With Viewfinder Approx. 340 shots (at 23°C)23

Battery Indicator 6 levels + percentage

Power Saving Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins

Power Supply & Battery Chargers Battery charger LC-E6E (supplied), Car Battery Charger CBC-E6, CD Coupler DR-E6P24, PD-E2 USB power adapter, PD-E1 USB power adapter25

PHYSICAL SPECIFICATIONS

Body Materials Magnesium Alloy body and Chassis with some components consisting of polycarbonate with glass fibre

Operating Environment 1 – 40 °C, 85% or less humidity

Dimensions (WxHxD) Approx. 138.5×101.2×93.5 mm

Weight (body only) Approx. 656 g (746 g with card and battery)

In the box:

1x EOS R5 Mark II

1x Shoe Cover ER-SC3 with lock mechanism

1x Camera Cover R-F-5

1x Strap ER-EOS R5 Mark II

1x Battery Charger LC-E6E

1x Battery Pack LP-E6P

1x Battery Pack Cover

1x Interface Cable IFC-100U

1x EOS R5 Mark II Cable Protector

1x Power Cable

1x User Manual
