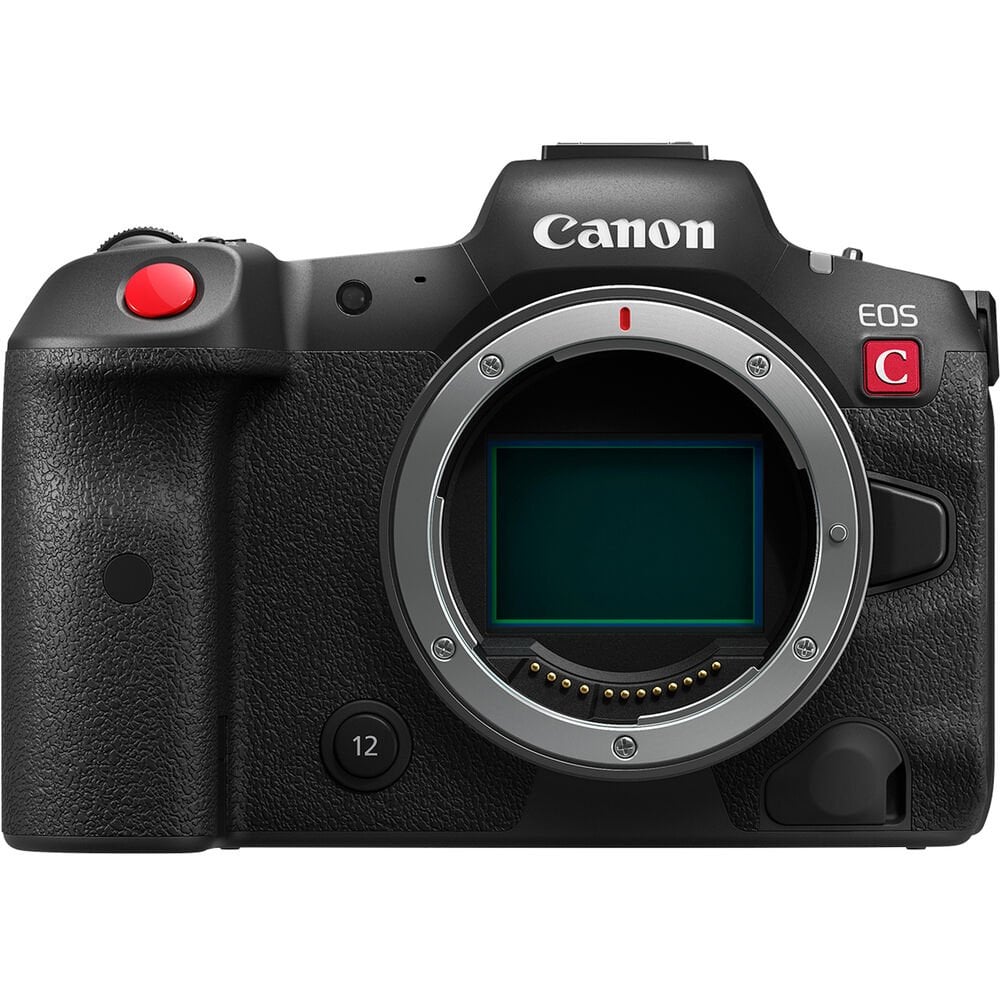

Canon EOS R5C Mirrorless Camera, Body only

Canon EOS R5C Mirrorless Camera

EOS R5C EOSR5C EOS-R5C EOS/R5C

For all the wedding videographers, drone camera operators, and multimedia journalists who have professional photo still and cinema video production needs, get ready for a new type of shooting experience with the EOS R5 C Mirrorless Cinema Camera from Canon. With a simple switch, the R5 C is a full featured still photo camera with all the settings of the R5 EOS mirrorless camera. When switched in the other direction, it becomes a full-frame 8K60 Cinema EOS camera that internally records 12-bit Cinema RAW Light footage. There's no more need to carry a second camera with you to your production when stills and video are available within a single compact design.

The R5 C enhances a number of features in comparison to its siblings the R5 and C70, including 4K120 recording, HDMI RAW output, Canon Log 3 HLG/PQ support, unlimited recording time, a timecode port, Dual Pixel CMOS AF with eye detection, an active cooling system, a high-power LP-E6NH battery, 13 reassign able buttons, and a multi-function shoe for XLR adapters. The camera also retains the reliable features of those cameras such as Wi-Fi/Bluetooth, footage compatibility with DaVinci Resolve and Canon apps, an electronic RF mount, CFexpress/SD card slots, a similar button layout, and more. And all this is packed into a tiny 1.7 lb body that is just asking to become your go-to drone camera.

• Two Cameras in One Body: Photo + Cinema
• 45MP Stills, Full-Frame 8K CMOS Sensor
• Photo/Video Switch Changes Settings Menu
• JPEG/C-RAW, 12-Bit Cinema RAW Light
• Dual Pixel CMOS AF with Eye Detection
• Cfexpress Type-B and SD UHS-II Slots
• Dual-Slot Record, Unlimited Record Time
• Timecode DIN Port, Multi-Function Shoe
• 4-Channel Audio Record with XLR Adapter
• 13 Reassign able Buttons

Common Features & Technology as the EOS R5

Canon's 45MP full-frame CMOS imaging sensor is at the heart of the EOS R5 C camera's superb image quality, which also leads the way for impressive 8K60 RAW cinematic video shooting.

Focus and speed are paramount in the EOS R5 C camera, providing impressive still-image continuous capture at speeds of up to 20 fps.

Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects.

With 1053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face, and Head Detection AF, or intuitively track the whole body, face, or eyes of cats, dogs, or birds with Animal Detection AF.

For those with the need for speed, Canon has also included still-image vehicle subject detection to assist with accurate tracking of cars and motorcycles.

Connectivity like 5 and 2.4GHz Wi-Fi and Bluetooth is also included for the transfer of still images.

Specifications

• Lens Mount: Canon RF
• Lens Communication: Yes, with Autofocus Support
• Sensor Resolution: Actual: 47.1 Megapixel
• Effective: 45 Megapixel (8192 x 5464)
• Sensor Type: 36 x 24 mm (Full-Frame) CMOS
• Crop Factor: 1.6x
• Image Stabilization: Sensor-Shift (Video Only)
• Built-In ND Filter: None
• Internal Filter Holder: No
• Capture Type Stills & Video
• Exposure Control
• Shutter Type Electronic Shutter, Focal Plane Shutter
• Shutter Speed Mechanical Shutter
• 1/8000 to 30 Seconds
• Electronic Front Curtain Shutter
• 1/8000 to 30 Seconds
• Electronic Shutter
• 1/8000 to 0.5 Seconds
• Bulb/Time Mode Bulb Mode
• ISO Sensitivity Photo: 100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
• Photo: 100 to 25,600 in Auto Mode (Extended: 200 to 51,200)
• Metering Method Center-Weighted Average, Evaluative, Partial, Spot
• Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
• Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
• Metering Range -3 to 20 EV
• Continuous Shooting Mechanical Shutter
• Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
• Electronic Shutter
• Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
• Interval Recording Yes
• Self-Timer 2/10-Second Delay
• Internal Video Capture
• Raw Recording Cinema RAW Light
• 8192 x 5464 at 23.976/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s]
• 5952 x 3140 at 23.976/24.00/29.97/30/50/59.94 fps [544 to 1360 Mb/s]
• 2976 x 1570 at 23.976/24.00/25/29.97/30/50/59.94 fps [138 to 344 Mb/s]
• Recording Modes Raw 12-Bit
• DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [2600 Mb/s]
• AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit
• DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/59.94p/100p/119.88p [160 to 810 Mb/s]
• UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [160 to 810 Mb/s]
• Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [50 to 310 Mb/s]
• HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
• AVC-LongG/MP4 4:2:2 10-Bit
• DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [400 to 540 Mb/s]
• UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [400 to 540 Mb/s]
• DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [100 to 225 Mb/s]
• UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]
• DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
• Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
• HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
• AVC-LongG/MP4 4:2:0 8-Bit
• DCI 4K (4096 x 2160) at 23.98PsF/24.00p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]
• UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [100 to 225 Mb/s]
• DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
• Full HD (1920 x 1080) at 23.98p/24.00p/29.97p/50p/59.94p [35 to 50 Mb/s]
• HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
• Sensor Crop Modes Super35 / APS-C
• 5952 x 3184
• 4096 x 2160
• 3840 x 2160
• Super16
• 2976 x 1570
• Gamma Curve Canon Log 3, HDR-HLG, HDR-PQ, Rec2020, Rec709
• Recording Limit Unlimited
• Video System NTSC/PAL
• External Video Capture
• External Recording Modes 4:2:2 10-Bit via HDMI
• DCI 4K (4096 x 2160) up to 59.94p
• UHD 4K (3840 x 2160) up to 59.94p
• IP Streaming None
• Still Image Capture
• Image Sizes 3:2 Raw
• 8192 x 5464
• 5088 x 3392
• 3:2
• 8192 x 5464
• 5808 x 3872
• 4176 x 2784
• 2400 x 1600
• 4:3
• 7280 x 5464
• 5152 x 3872
• 3715 x 2784
• 2112 x 1600
• 16:9
• 8192 x 4608
• 5808 x 3264
• 4176 x 2344
• 2400 x 1344
• 1:1
• 5456 x 5456
• 3872 x 3872
• 2784 x 2784
• 1600 x 1600
• Aspect Ratio 1:1, 3:2, 4:3, 16:9
• Image File Format JPEG, Raw, HEIF
• Bit Depth 10-Bit
• Interface
• Media/Memory Card Slot Slot 1: CFexpress Type B
• Slot 2: SD/SDHC/SDXC (UHS-II)
• Video I/O 1 x Micro-HDMI Output
• Audio I/O 1 x 3.5 mm TRS Stereo Mic/Line Input
• 1 x 3.5 mm TRS Stereo Headphone Output
• Power I/O 1 x USB Type-C (9 VDC at3 A) Input
• Other I/O 1 x USB Type-C USB 3.2 / 3.1 Gen 2 (Shared with Power Adapter)
• Wireless Bluetooth Control
• 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Wi-Fi Video Output, Control
• Global Positioning (GPS, GLONASS, etc.) None
• Monitor
• Size 3.2"
• Resolution 2,100,000 Dot
• Display Type Free-Angle Tilting Touchscreen LCD
• Viewfinder
• Type Built-In Electronic (OLED)
• Size 0.5"
• Resolution 5,790,000 Dot
• Eye Point 23 mm
• Coverage 100%
• Magnification Approx. 0.76x
• Diopter Adjustment -4 to +2
• Focus
• Focus Type Auto and Manual Focus
• Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
• Autofocus Points Phase Detection: 1053
• Autofocus Sensitivity -6 to +20 EV
• Built-In Flash No
• Maximum Sync Speed 1/250 Second
• Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
• Dedicated Flash System eTTL
• External Flash Connection Hot Shoe

What's in the box

• Canon EOS R5 C Mirrorless Cinema Camera
• LP-E6NH Battery Pack
• LC-E6 Battery Charger
• SS-1200 Shoulder Strap
• IFC-100U Interface Cable
• Cable Protector
• R-F-5 Camera Cover
